NEUTRAL Hybrid Stepper Motor, 2.8V Voltage, 0.44Nm Holding Torque, 0.9° Step Angle, 42.3 x 42.3 mm Frame Size, 5 mm 535-0401

Free Delivery in India | Lowest Global Shipping Charges

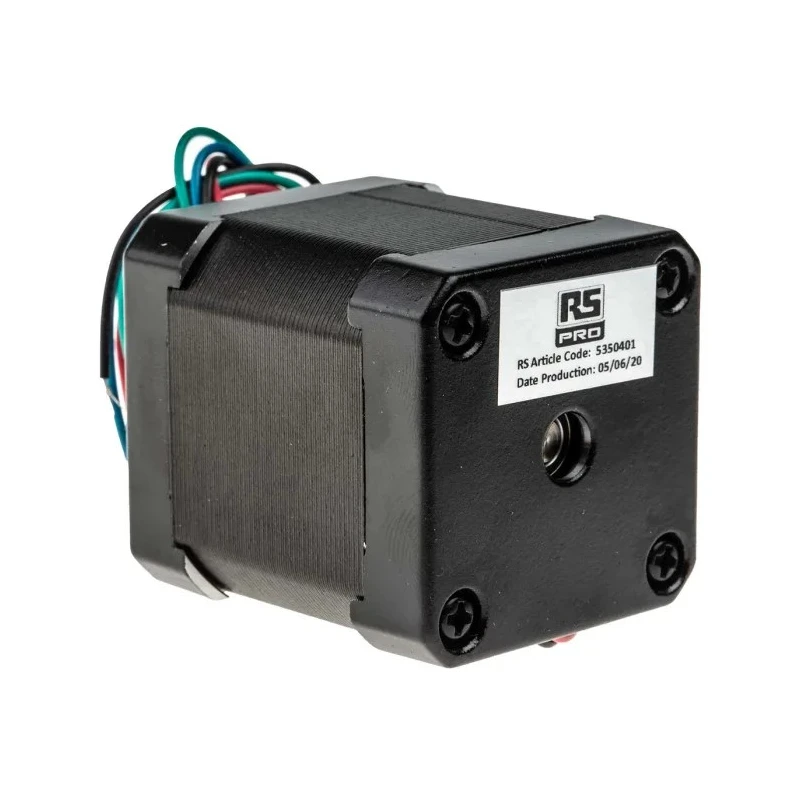

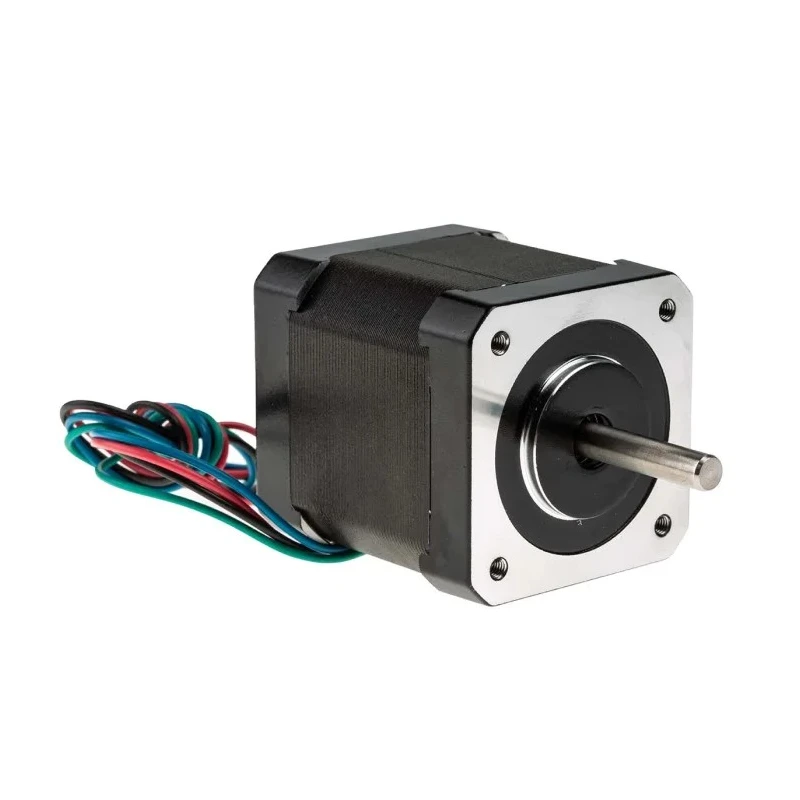

NEUTRAL Hybrid Stepper Motor, 2.8V Voltage, 0.44Nm Holding Torque, 0.9° Step Angle, 42.3 x 42.3 mm Frame Size, 5 mm 535-0401

Name: NEUTRAL Hybrid Stepper Motor, 2.8V Voltage, 0.44Nm Holding Torque, 0.9° Step Angle, 42.3 x 42.3 mm Frame Size, 5 mm 535-0401
Brand: NEUTRAL
SKU: 195102
Price: 86.91 USD
Availability: InStock



Category Stepper Motor Brand NEUTRAL Condition New

Specifications

Country of Origin	India
Voltage	2.8V
Brand	NEUTRAL
Model	535-0401
Depth	47mm
Width	42.3mm
Current Rating	1.68A
Frame Size	42.3 x 42.3 mm
Sub Type	Hybrid
Shaft Diameter	5mm
Shaft Length	24mm
Standards/Approvals	RoHS Compliant
Step Angle	0.9°
Holding Torque	0.44Nm
Winding Arrangement	Bipolar
Detent Torque	25mNm

Key Features

The step angle is a fine 0.9 degrees for high precision.
The motor features a 42.3 x 42.3 mm frame size for compact installation.
It has a 5 mm shaft diameter suitable for standard coupling.
Current rating is 1.68 A for efficient performance.
The shaft length of 24 mm and overall depth of 47 mm suit varied applications.

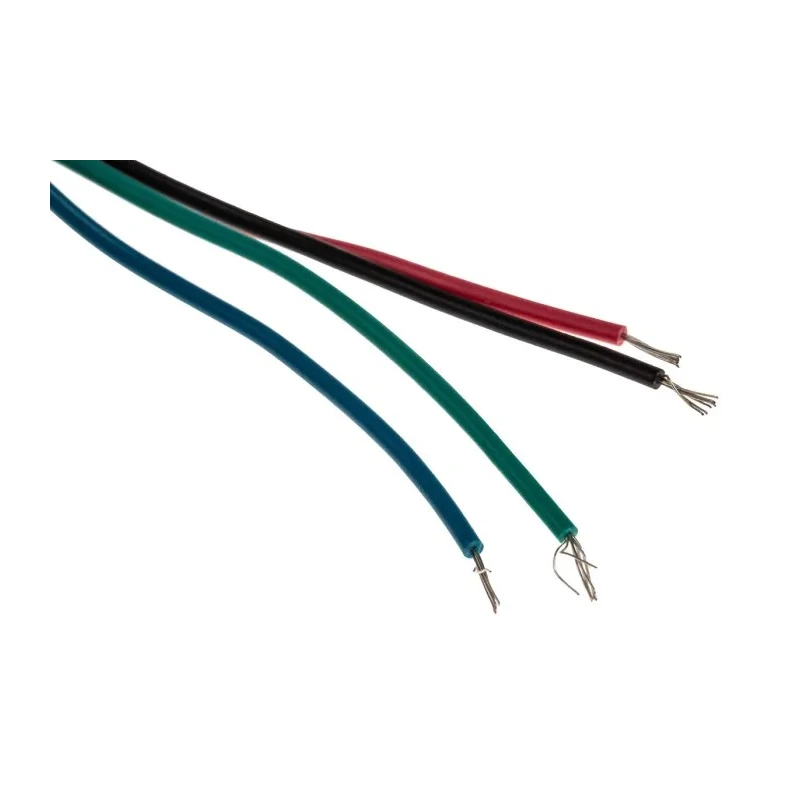

The winding arrangement is bipolar with four wires for controlled operation.
Compliance with RoHS standards ensures environmental safety.

Product Description

RS PRO 535-0401 Hybrid Stepper Motor is a four-wire bipolar hybrid stepper designed for precision motion control in automation and electrical devices. Operating at 2.8 volts with a holding torque of 0.44 Newton meters, it delivers accurate rotations with a 0.9-degree step angle. The motor has a compact 42.3 x 42.3 mm frame size and a shaft diameter of 5 mm, making it ideal for integration in limited spaces.

This hybrid stepper motor uses a combination of permanent magnet and variable reluctance motor technologies to maximize torque and efficiency. It is suitable for applications in industries such as laser control, optics instruments, linear actuators, rotation stages, and goniometers. Its bipolar winding with four wires allows for precise and controllable electric movements.

The motor's current rating is 1.68 A and features a shaft length of 24 mm with an overall depth of 47 mm to fit diverse mechanical assemblies. It offers a resistance of 1.65 ohms per phase, which supports stable operation and longevity. Additionally, this motor complies with RoHS regulations, ensuring it meets environmental and safety standards.

The step angle of 0.9 degrees enables fine positional accuracy. The 0.44 Nm holding torque supports reliable load holding. The bipolar winding ensures efficient current control and performance. Compact frame sizing promotes easy installation in various machines.

RoHS compliance guarantees minimal hazardous substance use.

RS PRO is a trusted brand known for quality and rigorous testing of its components, ensuring high reliability for industrial, laboratory, and manufacturing use. This hybrid Stepper Motor is a smart choice for users needing precise motion control and durability in industrial environments.

Explore a wide range of RS PRO motors and automation components on EnvMart for your professional engineering and automation needs.
