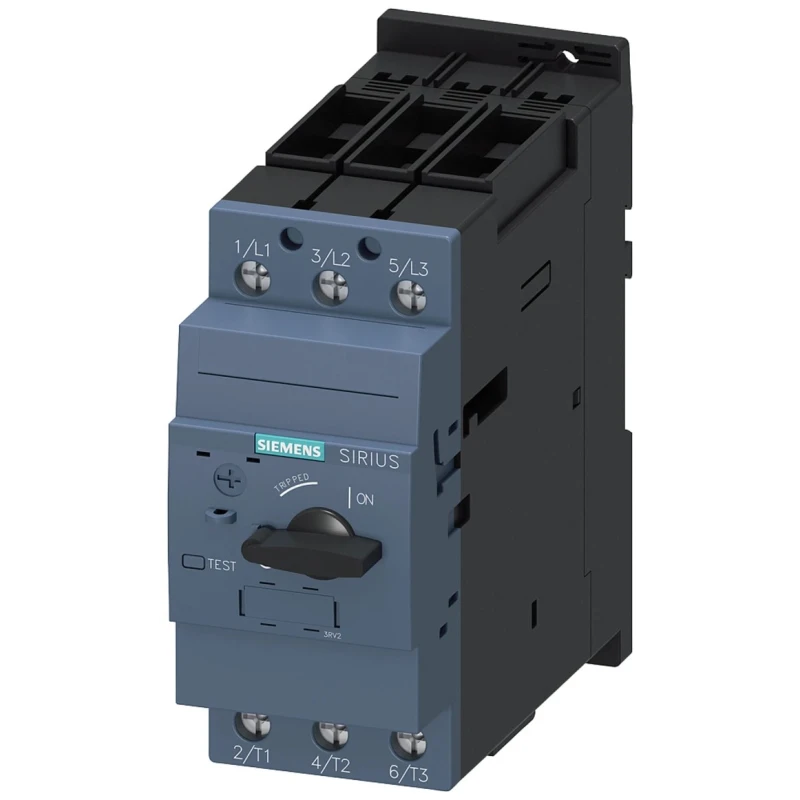

Siemens Motor Protection Circuit Breaker 22, 32 A, 690 V, Magnetic Sensing, 3RV2 Series 3RV2031-4EA10
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV2031-4EA10 |
| IP Rating | IP20 |
| Overall Length | 55mm |
| Current Rating | 22, 32A |
| Series | 3RV2 |
| Overall Width | 149.4mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Sensing type | Magnetic |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | ABS, ATEX, CCC, CE, CSA, EAC, LRS, RoHS, UKCA, UL, VDE |
| Overall Depth | 140mm |
| Better World Claim | Extended Product Life, Low Carbon Manufacture |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Siemens 22 → 32 A Sirius Innovation Motor Protection Circuit BreakerBrand | Siemens |
Key Features
- Equipped with magnetic sensing type for precise motor protection.
- Operates within a wide temperature range of -20°C to 60°C.
- Compact dimensions with 55mm length, 149.4mm width, and 140mm depth.
- IP20 rated thermoplastic housing offers mechanical impact resistance and insulation.
- Supports installation on DIN rails for simple mounting.
- Designed for 3-pole motor circuits with high electrical endurance up to 50,000 switching cycles.
- Complies with multiple international standards and approvals including CE, UL, and RoHS.
- Manufactured in Germany, ensuring high quality and durability.
Product Description
Siemens 3RV2031-4EA10 Motor Protection Circuit Breaker is engineered for robust protection of industrial motors against overloads and short circuits. Rated for current ranges of 22 and 32 amperes and operating up to 690 volts, this 3-pole breaker features magnetic sensing technology to detect motor anomalies reliably.
The device is constructed with a thermoplastic housing providing excellent protection against mechanical shocks while enhancing user safety with its insulating properties. Its compact design ensures easy integration within electrical control panels, with precise dimensions of 55mm length, 149.4mm width, and 140mm depth.
Suitable for a broad temperature range from -20°C to 60°C, this motor circuit breaker is ideal for demanding industrial environments including automation, robotics, manufacturing, and other electrical motor applications. Its DIN rail mounting simplifies installation and maintenance operations.
With an outstanding electrical endurance of 50,000 switching cycles, the Siemens 3RV2 series breaker ensures long-lasting reliable performance. It complies with rigorous international standards such as ABS, ATEX, CCC, CE, CSA, EAC, LRS, RoHS, UKCA, UL, and VDE, reflecting Siemens' commitment to quality and environmental responsibility.
Equipped with magnetic sensing type for precise motor protection. Wide operating temperature range from -20°C to 60°C. Compact and durable thermoplastic housing with IP20 rating. Supports DIN rail mounting for ease of installation.
High electrical endurance of up to 50,000 switching cycles. Compliant with multiple international approvals and standards. Designed for 3-pole motor protection circuits. Manufactured in Germany ensuring premium quality.
This product enables industrial and commercial operators to protect their motors efficiently while ensuring safety and compliance. It is well suited for sectors including manufacturing, automation, and electrical control system design.
Explore further motor protection solutions and accessories from leading brands available at EnvMart for comprehensive industrial electrical equipment sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 22 and 32 amperes.
It operates at a maximum voltage of 690 volts.
It utilizes magnetic sensing technology for precise motor protection.
The operating temperature range is from -20°C to 60°C.
The overall dimensions are 55mm in length, 149.4mm in width, and 140mm in depth.
This unit is designed for 3-pole motor circuits.
It has an IP20 rating, indicating protection against solid objects larger than 12.5mm.
It has an electrical endurance of up to 50,000 switching cycles.
It supports installation on DIN rails, facilitating easy mounting.
It complies with multiple international standards including CE, UL, and RoHS, among others.
This product is manufactured in Germany.
It is suitable for industrial environments including automation, robotics, and manufacturing applications.
