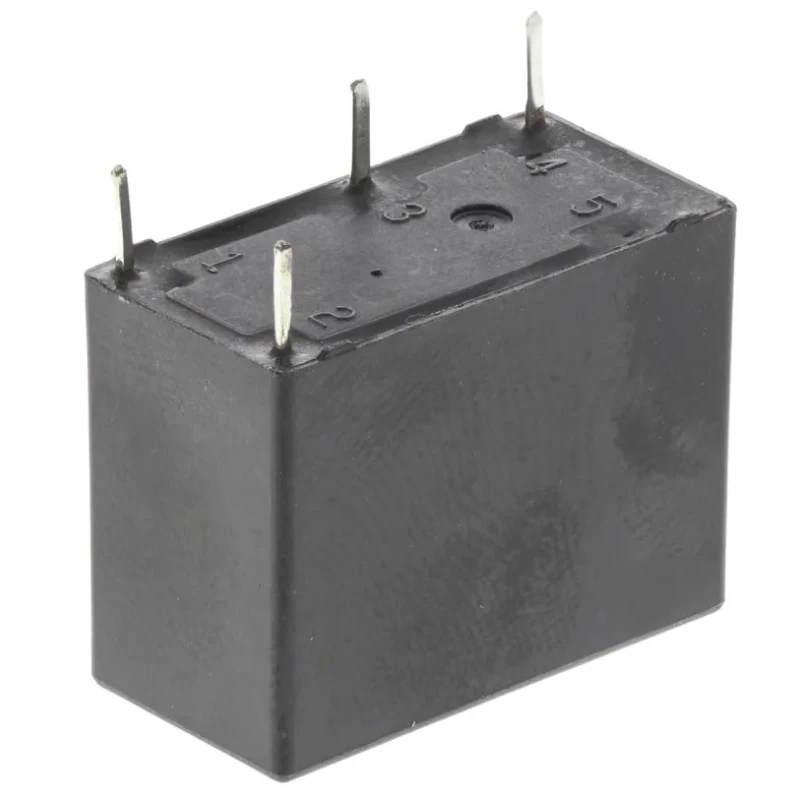

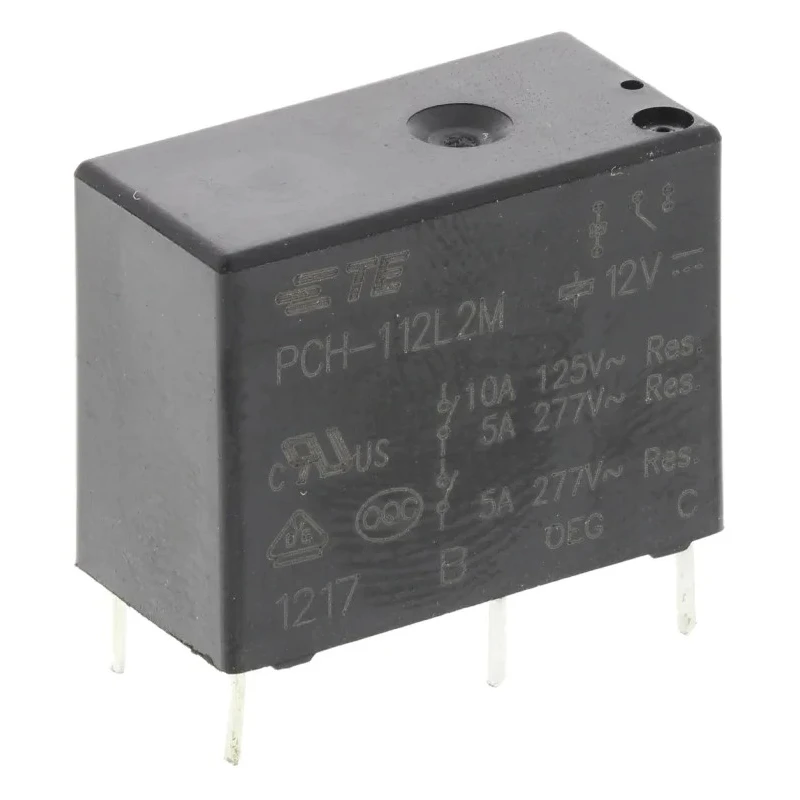

TE Connectivity PCB Power Relay 12V Coil Voltage 10A Switching Current Through Hole Mount PCH-112L2M
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Model | PCH-112L2M |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PCH |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO |
| Contact Rating | 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508) |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC08001023449, VDE 119568, UL E82292, RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| Switching Power | 150W |
Key Features
- Features a single normally open (1 NO) contact configuration for reliable switching.
- Designed for PCB mounting with through-hole terminals for secure placement.
- Operates efficiently at coil power of 200mW with coil resistance of 720Ω.
- Supports switching AC voltages up to 250V and DC voltages up to 30V.
- Suitable for applications in HVAC systems, refrigerators, and microwave ovens.
- Compact dimensions of 20mm length, 10mm width, and 15mm height allow flexible integration.
- High switching power rating of 150W ensures robust performance.
- Contact material is silver alloy with low contact resistance of 100mΩ for reliability.
Product Description
TE Connectivity PCH-112L2M is a high-quality PCB power relay featuring a 12V coil voltage and a 10A switching current designed for precise electrical control in industrial and commercial applications.
This miniature relay from the PCH series utilizes a single normally open (1 NO) contact configuration and is built for through hole PCB mounting, providing secure and reliable connections.
The coil consumes 200mW power with 720Ω resistance, optimizing energy efficiency. It supports switching AC voltages of up to 250V and DC voltages up to 30V, allowing versatile application across various power circuits.
Compact dimensions of 20mm length, 10mm width, and 15mm height enable easy integration on densely populated PCBs, making it suitable for HVAC, refrigeration, microwave ovens, and other electrical equipment requiring reliable relay switching.
Constructed with silver alloy contacts and featuring low contact resistance (100mΩ), the relay ensures excellent electrical conductivity and long service life. The contact rating supports 5A at 250VAC (IEC 61810) and 10A at 125VAC (UL 508).
The relay is designed to operate reliably across a wide temperature range from -40°C to 85°C, ensuring durability in various environmental conditions.
It meets multiple international standards and certifications including UL E82292, CQC08001023449, VDE 119568, and RoHS compliance, ensuring safety and quality assurance for industrial and commercial use.
Features a single normally open contact configuration for dependable switching. Through hole mount type suited for PCB installations. High surge voltage tolerance of 8000V (1.2/50μs) enhances reliability. Compact size enables use in space-constrained designs.
Wide temperature operating range suitable for demanding environments. Silver alloy contact material provides high conductivity and durability. Low coil power consumption of 200mW supports efficient operation. Certification compliance ensures quality and safety standards.
This TE Connectivity PCB power relay is well-suited for industrial automation, HVAC systems, household appliances, and other commercial electrical applications. Explore more reliable electronic components and relays in the EnvMart catalog to support your projects and production.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V.
It can handle a maximum switching current of 10A.
The relay has compact dimensions of 20mm in length, 10mm in width, and 15mm in height.
This model features a single normally open (1 NO) contact configuration.
The contact material is silver alloy, which provides low contact resistance.
It supports switching AC voltages up to 250V and DC voltages up to 30V.
The coil power consumption is 200mW.
The relay operates reliably within a temperature range of -40°C to 85°C.
This relay is designed for PCB mounting with through-hole terminals.
The contact rating is 5A at 250VAC (IEC 61810) and 10A at 125VAC (UL 508).
It meets several certifications including UL E82292, CQC08001023449, VDE 119568, and is RoHS compliant.
This relay is suitable for applications in HVAC systems, refrigerators, and microwave ovens.
