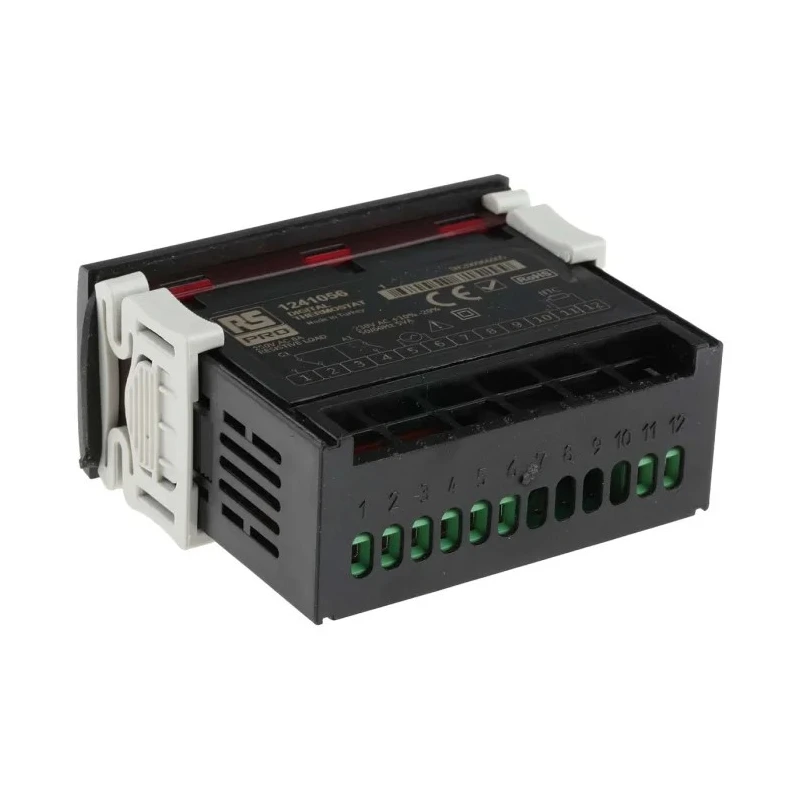

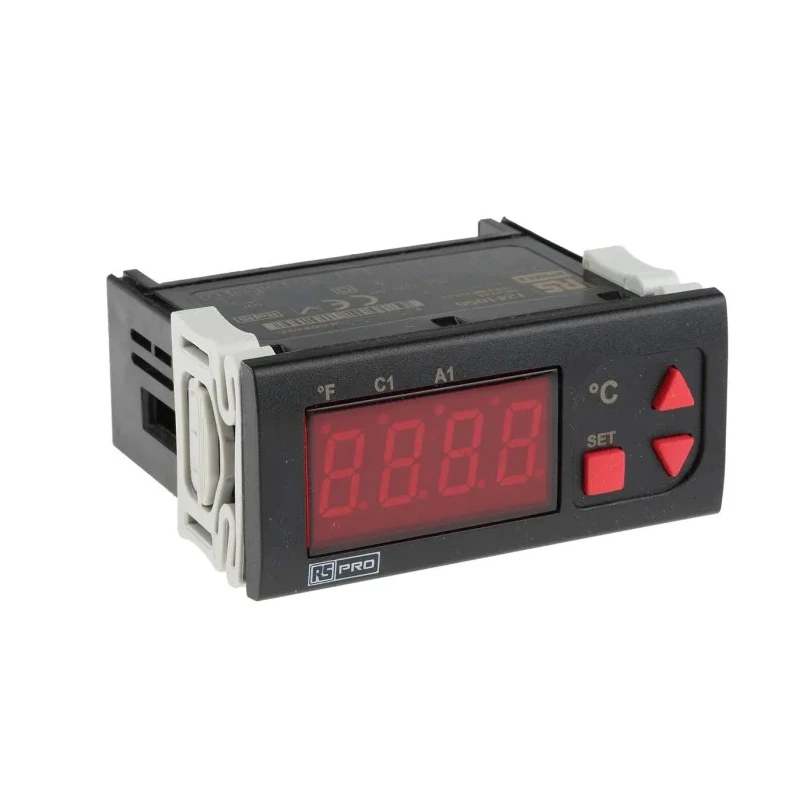

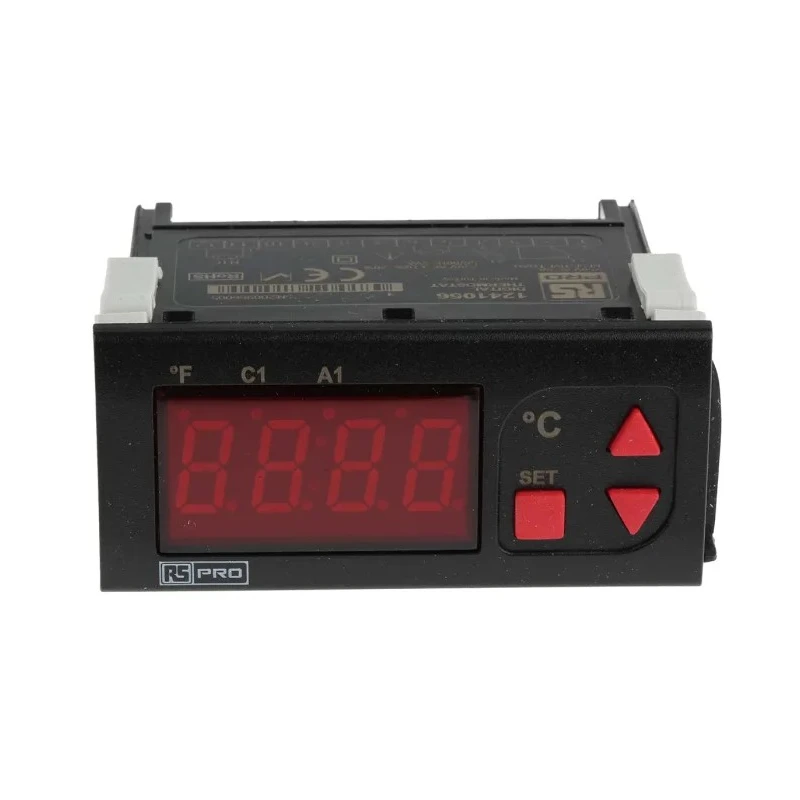

RS PRO Panel Mount On-Off Temperature Controller 1 Input, 2 Output Relay 253V AC 8A 7 Segment LED 124-1056
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | 7 Segment LED |
| Brand | RS PRO |
| Length | 77mm |
| Model | 124-1056 |
| IP Rating | IP65, IP20 |
| Width | 35mm |
| Mount Type | Panel Mount |
| Number of inputs | 1 |
| Output type | Relay |
| Series | RS PRO |
| Input Type | NTC |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 8A |
| Number of outputs | 2 |
| Terminal type | Screw |
| Maximum Voltage | 250V |
| Maximum Supply Voltage | 253V ac |
| Panel Depth | 61mm |
| EN 60529, IEC 60245, EN 60751, CE marked, IEC 60227, EN 61326-1 | 2013, EN 61010-1:2010 |
Key Features
- Compact panel mount design with dimensions of 77mm by 35mm.
- Operates with a maximum supply voltage of 253V AC and current rating of 8A.
- Features a 7 segment LED display for clear temperature readings.
- Supports NTC sensor input with temperature range from 0°C to 50°C.
- IP65 and IP20 ratings ensure protection against dust and water ingress.
- Includes selectable heating or cooling control options with alarm relay functionality.
- Offers probe failure settings and sensor input offset adjustments for versatility.
- Certified to comply with EN 60529, IEC 60245, EN 60751, CE, IEC 60227, EN 61326-1:2013, and EN 61010-1:2010 standards.
Product Description
RS PRO 124-1056 Panel Mount On-Off Temperature Controller is engineered for controlling temperatures in industrial and commercial environments with precision and reliability. Featuring a compact 77mm length and 35mm width panel mount design, it integrates easily into control panels.
It operates with a robust maximum supply voltage of 253V AC and maximum current rating of 8A, suitable for a broad range of industrial applications. The controller utilizes a single NTC sensor input and provides two relay outputs, supporting both heating and cooling control modes.
The controller features a clear 7 segment LED display for easy monitoring of temperature values within a safe operating range of 0°C to 50°C. The design includes versatile settings such as selectable alarm types, probe failure outputs, and sensor input offset calibration, enhancing system reliability and user control.
With an IP65 front panel rating and IP20 rear rating, this temperature controller offers excellent protection against dust and water ingress, ensuring durability in demanding environments. It is certified according to multiple international standards including EN 60529, IEC 60245, EN 60751, CE marking, IEC 60227, EN 61326-1:2013, and EN 61010-1:2010, guaranteeing compliance and performance.
Compact panel mount design with dimensions 77mm x 35mm suitable for industrial control panels. Maximum supply voltage 253V AC and current rating 8A ensuring reliable operation. 7 segment LED display provides clear temperature readout and status indication.
Single NTC sensor input with temperature operating range 0°C to 50°C. Relay outputs enable heating, cooling and alarm function controls. IP65 and IP20 rated construction protects against dust and moisture. Probe failure and sensor offset settings increase system flexibility.
Certified to EN 60529, IEC 60245, EN 60751, CE, IEC 60227, EN 61326-1:2013, EN 61010-1:2010 standards.
This RS PRO On-Off temperature controller is ideal for industrial applications such as HVAC system control, ovens, incubators, automotive heating/cooling regulation, and storage temperature management. Its reliable relay outputs and clear LED display enable straightforward integration and monitoring.
Choose the RS PRO 124-1056 controller for an easy-to-configure, robust solution to temperature control needs in manufacturing, water treatment, laboratory instruments, and other commercial industrial sectors. Explore more high-quality Temperature Controllers and automation solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this temperature controller is 253V AC.
It features a 7 segment LED display for clear temperature readings.
This temperature controller has a measurement range from 0°C to 50°C.
It provides two relay outputs for controlling heating and cooling functions.
It supports a single NTC sensor input.
The panel mount design has dimensions of 77mm in length and 35mm in width, with a depth of 61mm.
The maximum current rating is 8A.
It has an IP65 rating for the front panel and an IP20 rating for the rear.
It is certified to comply with EN 60529, IEC 60245, EN 60751, CE, IEC 60227, EN 61326-1:2013, and EN 61010-1:2010 standards.
It uses an On-Off control type for temperature management.
Yes, it includes selectable alarm relay functionality for enhanced control.
The country of origin is Turkey.
