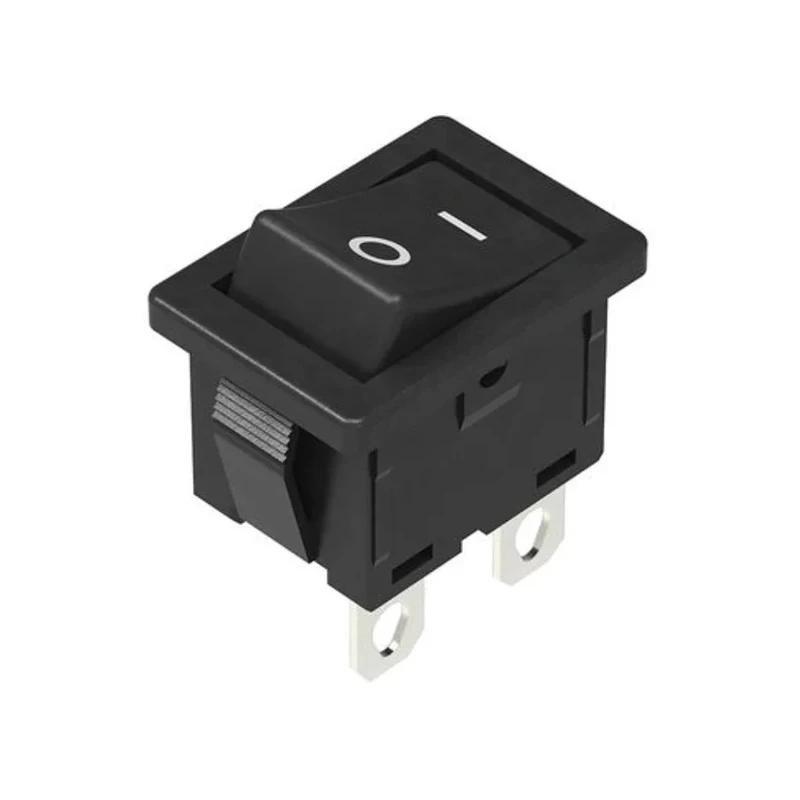

Alps Alpine SPST Latching Rocker Switch Panel 19.4 x 12.9 mm, 10A, 250V ac SDDJE10700
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | SDDJE10700 |
| IP Rating | IP00 |
| Mount Type | Panel |
| Series | SDDJE |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -10°C |
| Panel Cutout Size | 19.4 x 12.9 mm |
| Terminal type | Wire |
| Standards/Approvals | VDE, UL, RoHS, CSA, BS |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | Rectangular |
| Switch Contact Current | 10A |
| Mechanical Life | 10000Cycles |
| Contact AC Voltage | 250V ac |
| Legend | I/O |
| Legend Text Colour | White |
Key Features
- This rocker switch features SPST contact configuration for single pole single throw switching.
- The latching switch operation provides stable ON or OFF position until toggled again.
- The panel cutout size measures 19.4 x 12.9 mm for easy mounting.
- The actuator is rectangular and colored black for clear visibility.
- Mechanical life expectancy is 10,000 cycles ensuring durable performance.
- The switch complies with VDE, UL, RoHS, CSA, and BS safety standards.
- Suitable for panel mounting with wire terminal type connections.
- Operating temperature range is from -10°C to 55°C.
Product Description
Alps Alpine SDDJE10700 SPST Latching Rocker Switch Panel is a compact and high-capacity power rocker switch designed for electrical and automation applications. With a contact current rating of 10A and contact AC voltage of 250V, it ensures reliable operational performance for controlling electrical circuits.
The switch features a SPST (Single Pole Single Throw) contact configuration with latching operation, which maintains the switch position until manually toggled, ideal for stable user control. Its rectangular black actuator and white legend text clearly indicate the ON/OFF states (I/O) for ease of use.
This panel mounted switch requires a panel cutout size of 19.4 x 12.9 mm and uses wire terminal type connections, facilitating easy installation and secure wiring. It is rated IP00 for ingress protection and is suitable for environments operating between -10°C and 55°C.
The switch design supports 10,000 mechanical cycles, offering durability and a long service life. SPST contact configuration for simple ON/OFF control. Latching operation for secure switch position maintenance. Panel cutout size of 19.4 x 12.9 mm for mounting.
Rectangular black actuator with white legend text. Mechanical life rated up to 10,000 cycles. Complies with VDE, UL, RoHS, CSA, BS standards. Panel mount type with wire terminal connections. Operating temperature from -10°C to 55°C.
Manufactured in Japan ensuring high quality.
This Alps Alpine rocker switch panel is ideal for industrial, automation, and electrical control panel applications where reliable and durable switching is required. Explore the wide range of Rocker Switches and related components on EnvMart for your specific technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rocker switch features a SPST (Single Pole Single Throw) contact configuration, allowing for simple ON/OFF control.
It has a contact current rating of 10A and can handle an AC voltage of 250V.
The panel cutout size required for mounting is 19.4 x 12.9 mm.
This model operates within a temperature range of -10°C to 55°C.
The mechanical life expectancy of this switch is rated at 10,000 cycles.
It uses wire terminal type connections for secure wiring.
It complies with VDE, UL, RoHS, CSA, and BS safety standards.
The actuator is rectangular and colored black, with white legend text indicating the ON/OFF states.
Yes, it is designed for industrial, automation, and electrical control panel applications.
The switch has an IP00 rating for ingress protection.
It features a latching operation, which maintains the switch position until manually toggled again.
This model is manufactured in Japan, ensuring high quality.
