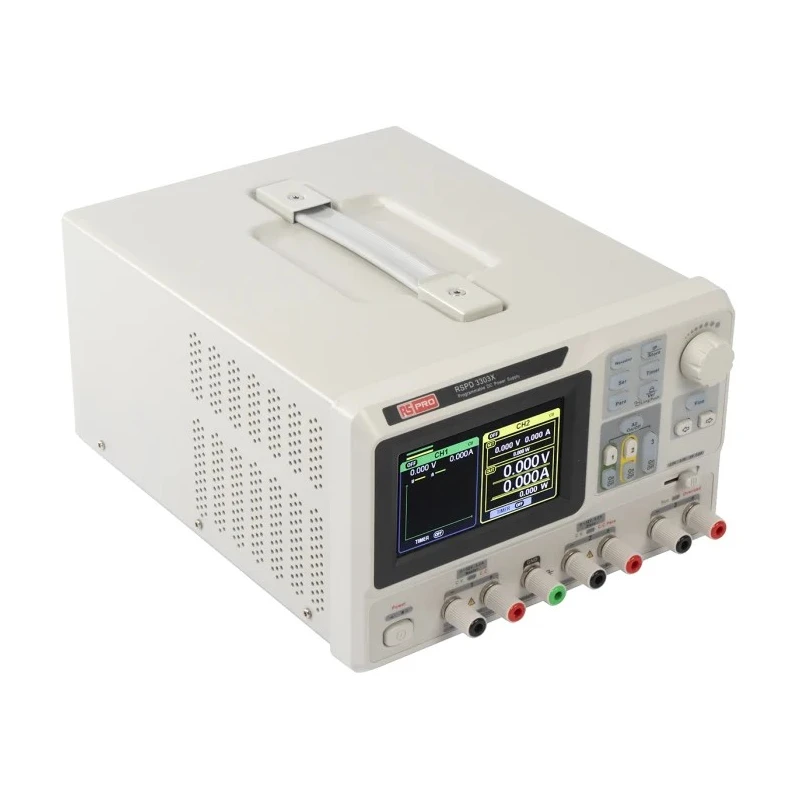

RS PRO Digital Bench Power Supply 3-Output 0 V ac to 32 V, 220 W, 3.2 A Max 123-6469

RS PRO 123-6469 digital Bench Power Supply is a high-precision programmable linear DC power supply delivering up to 220 W power with maximum output current of 3.2 A and voltage range from 0 V AC to 32 V. Designed for industrial, educational, and research settings, this power supply features three independently controlled and isolated outputs, comprising two adjustable channels and one selectable output channel preset to 2.5 V, 3.3 V, or 5 V. It supports multiple output modes including independent, series, and parallel configurations, allowing flexible power delivery.

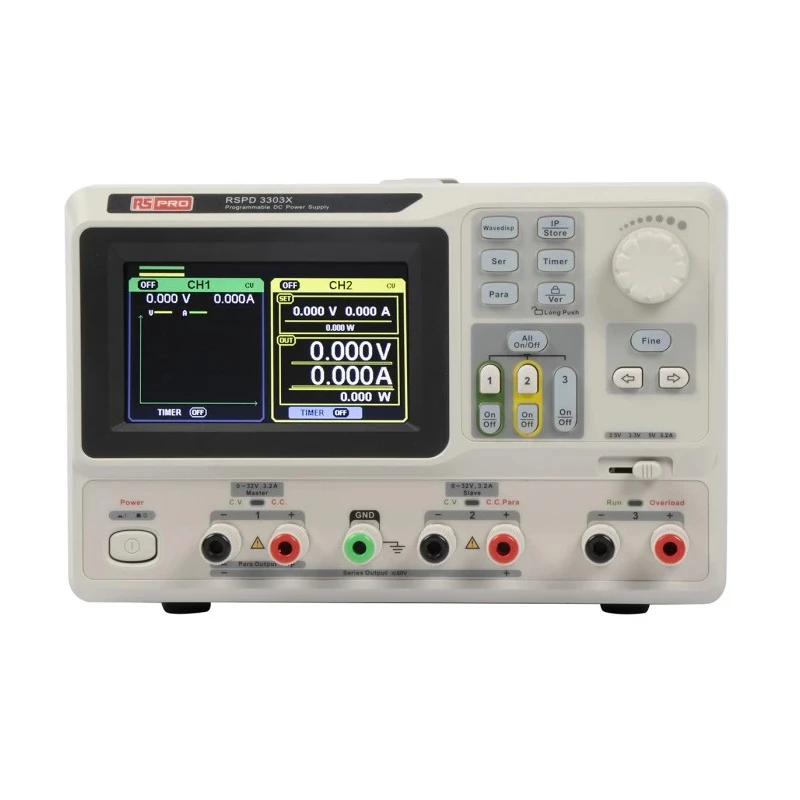

The unit is equipped with a 4.3 inch true colour TFT LCD (480x272 pixels) that clearly displays voltage and current with resolutions up to 1 mV and 1 mA. This fine resolution ensures precise output adjustments and excellent read-back accuracy for sensitive electronic testing and development.

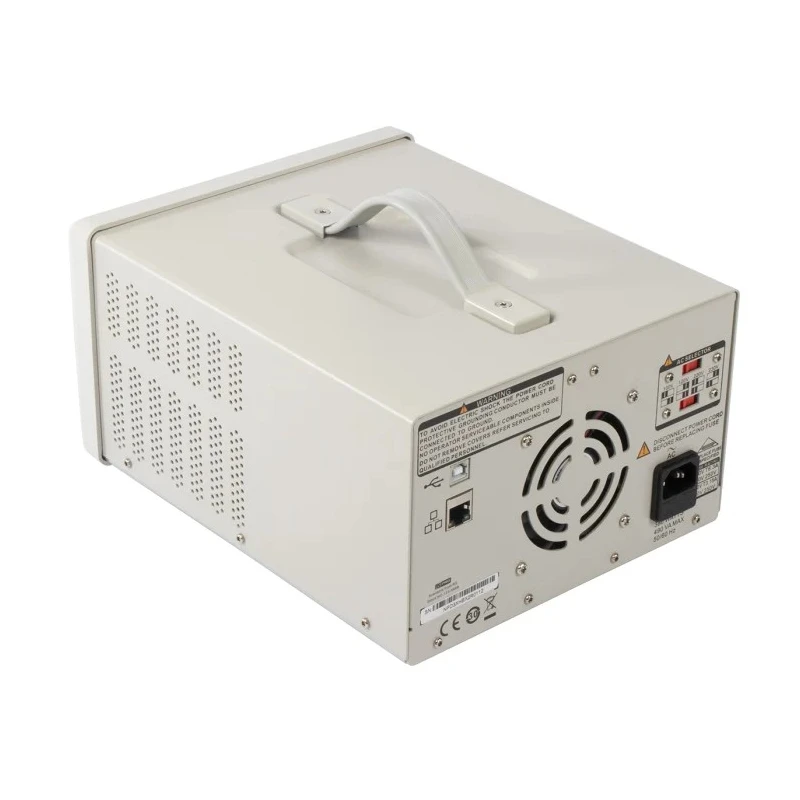

Safety and reliability are assured by built-in protections against output short circuits and overload conditions. Operation noise is minimized by an intelligent temperature-controlled fan that adjusts speed based on demand. The power supply is compatible with global power grids supporting input voltages of 100 V, 120 V, 220 V, and 230 V AC.

Additional features include front panel timing output functions, the ability to save and recall up to five groups of system parameters, and expansion support for external storage. Remote programming is facilitated via supplied PC software Easypower along with SCPI and LabView drivers, enabling integration into automated test environments.

This model caters perfectly to industrial manufacturing, educational laboratories, and research facilities requiring stable, multi-output DC power sources with digital control and monitoring capabilities.

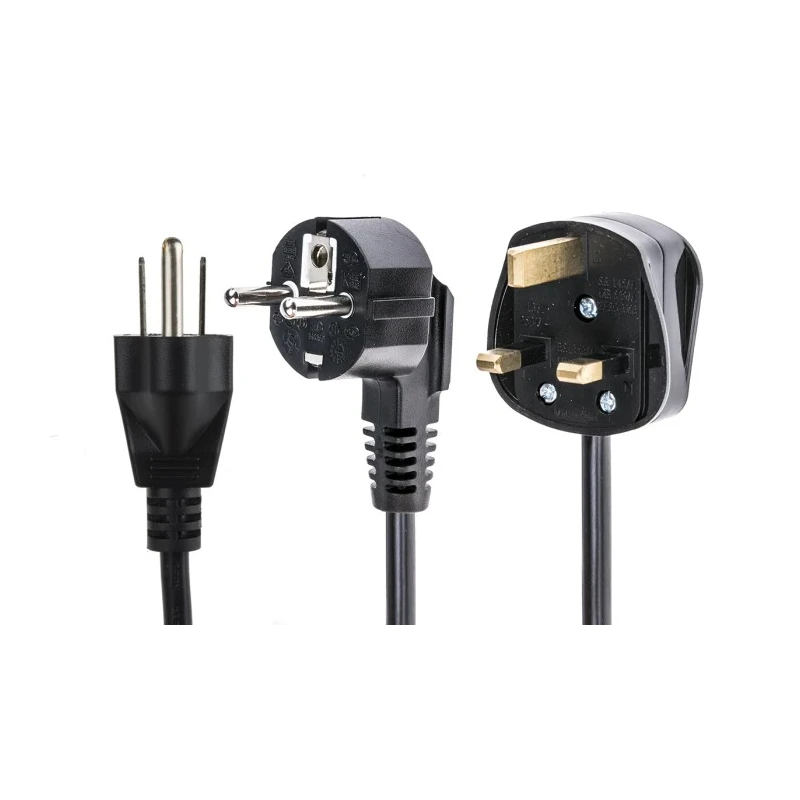

Package contents include a USB cable, power cord, output test cords (2 sets), quick start guide, product and calibration certificates, and a resource CD containing product documentation and software.

Explore a wide range of bench power supplies and measurement instruments on EnvMart for advanced testing solutions. Features a high-resolution 4.3 inch true colour TFT LCD with 480x272 display for accurate readout. Provides three isolated outputs, including two adjustable channels and one selectable channel with preset voltages.

Supports independent, series, and parallel output modes to extend power capabilities. Includes protection features against output short circuits and overloads for safe operation. Equipped with intelligent temperature-controlled fan to reduce noise during operation.

Compatible with multiple input voltages including 100 V, 120 V, 220 V, and 230 V AC power grids. Supports remote programming and real-time waveform display with PC software Easypower, SCPI, and LabView interfaces. Ideal for production, education, and research applications in industrial and laboratory environments.

Supplied with comprehensive accessories including USB cable, power cord, quick start guide, calibration and product certificates.
