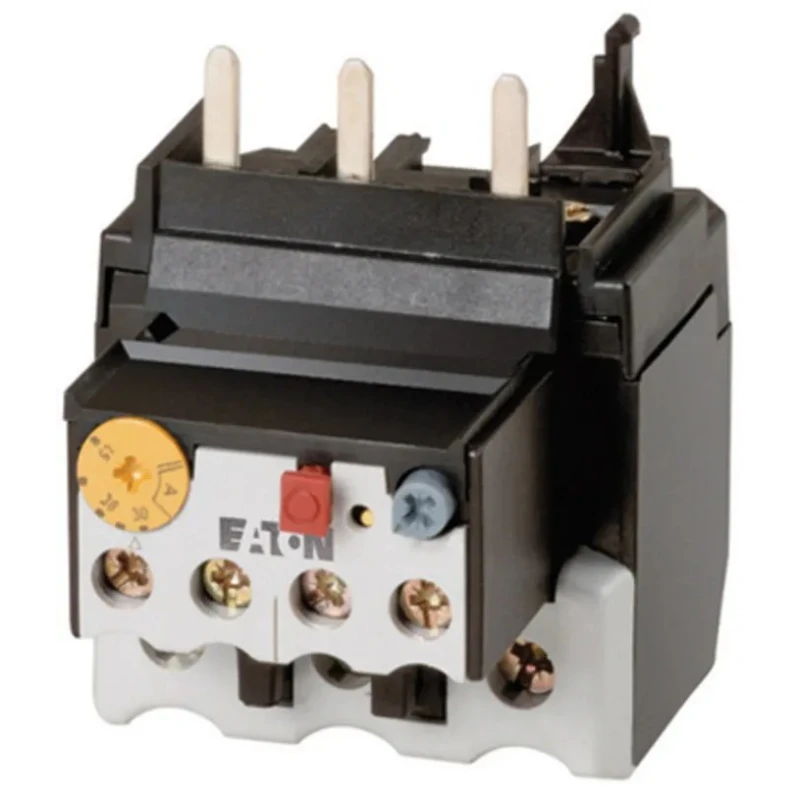

Eaton Overload Relay ZB65 57-65A FLC, 65A Contact Rating, 7.5W Power, 500V AC ZB65

Eaton ZB65 Overload Relay is a high-performance device intended for motor protection, rated for 57 to 65 amperes full load current with a 65 amp contact rating and power consumption of 7.5 watts at 500V AC control voltage. It is engineered to ensure reliable operation and protection for industrial automation systems and electrical control panels.

This overload relay features a contact configuration comprising one Normally Open (NO) and one Normally Closed (NC) auxiliary contact, providing flexibility for various control circuit designs. The adjustable current range between 50 and 65 amperes allows precise calibration to meet diverse motor specifications.

The device is designed for direct mounting, utilizing screw-type terminals facilitating secure electrical connections, and supports both automatic and manual reset options to suit operational preferences. Its operating temperature range spans from -5°C to 55°C, with an IP00 protection rating, suitable for indoor control environments.

Compatible with Eaton's DILM contactors from sizes 40 to 65, the ZB65 overload relay ensures seamless integration within electrical control setups. It is ideal for applications requiring effective motor short circuit and overload protection, improving motor and system longevity in industrial, manufacturing, and automation settings.

The relay supports a power rating of 7.5 watts for efficient operation. It features 1 Normally Open and 1 Normally Closed contact configuration. Adjustable current range from 50 to 65 amperes for versatile installation. Equipped with screw-type terminals and supports both automatic and manual reset methods.

Operates within a temperature range of -5°C to 55°C with IP00 rating. Compatible with DILM contactors DILM40 to DILM65 for seamless integration. Designed to provide short circuit protection for motors, enhancing operational safety.

Compact dimensions of 172mm (L) x 60mm (W) x 132mm (D) for space-saving installation.

These specifications make the Eaton ZB65 Overload Relay suitable for electrical automation, industrial machinery protection, HVAC systems, and motor control applications. Eaton maintains high standards of quality and compliance with certifications including CE, VDE, UL, CSA, and IEC standards.
