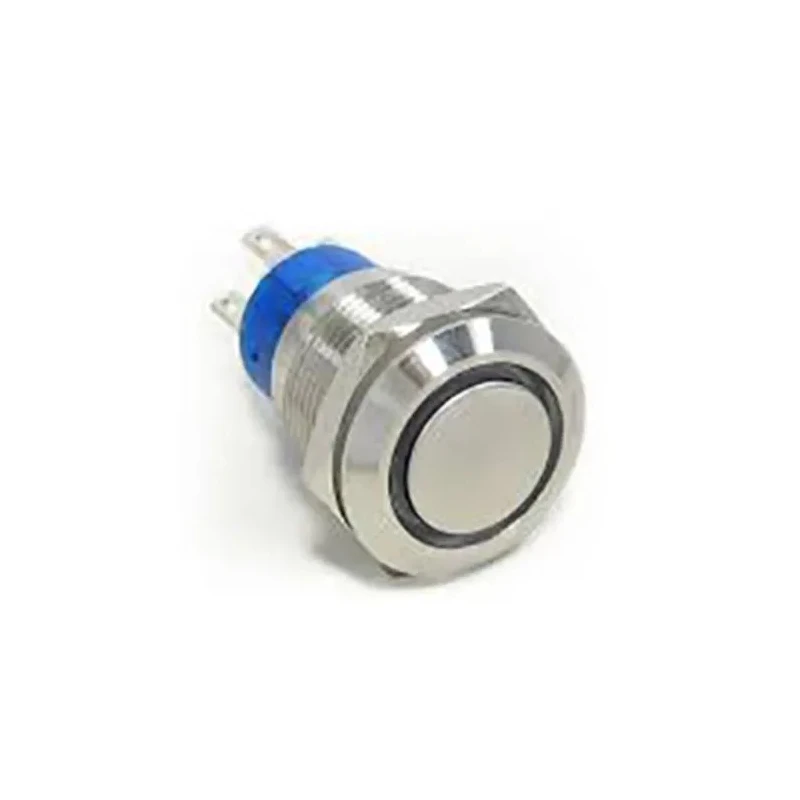

TE Connectivity Series Illuminated Push Button Switch, Latching, Panel Mount, 22.2 mm Cutout, SPDT, Red LED, IP67, 250 V AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV Compliant, REACH Compliant, UL (E46765) |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver actuator with push button style for reliable user interface.
- Illuminated with a red LED for clear operational status indication.
- Designed for panel mounting with wire lug terminals ensuring ease of installation.
- IP67 rated for excellent protection against dust and water ingress.
- Operates effectively within temperatures from -20°C to 55°C.
- Handles contact AC and DC voltage up to 250 V and current rating of 3 A.
- Constructed for industrial security with a vandal-proof rear mounting jam nut design.
- Compliant with EU ELV, REACH and UL standards ensuring safety and environmental adherence.
Product Description
TE Connectivity AV22 series illuminated push button switch AV22 provides a robust industrial-grade control interface with precise latching operation suitable for demanding panel mount applications.
This switch features a 22.2 mm cutout size and SPDT contact configuration allowing single pole double throw switching functionality. The actuator is silver colored with a push button style for ergonomic use and illuminated by a red LED for clear feedback to operators.
Its IP67 ingress protection rating certifies dust-tight and water immersion resistance, making it ideal for harsh and outdoor industrial environments. The contact rating of 250 V AC/DC at 3 A enables versatile use in various electrical systems.
The product operates reliably within ambient temperatures ranging from -20°C to 55°C, providing durability under extreme conditions. Panel mounting is secured with a vandal-proof rear mounting jam nut that enhances security and longevity of the switch.
Standards compliance includes European ELV and REACH norms along with UL approval (E46765), reinforcing its quality and environmental safety credentials. Applications commonly include control and communication equipment, elevators and escalators, and instrumentation where a premium and vandal-resistant user interface is required.
The switch features a silver actuator with push button style for reliable user interface. Illuminated with a red LED for clear operational status indication. Designed for panel mounting with wire lug terminals ensuring ease of installation.
IP67 rated for excellent protection against dust and water ingress. Operates effectively within temperatures from -20°C to 55°C. Handles contact AC and DC voltage up to 250 V and current rating of 3 A. Constructed for industrial security with a vandal-proof rear mounting jam nut design.
Compliant with EU ELV, REACH and UL standards ensuring safety and environmental adherence. Commonly used in control and communication equipment, elevators, escalators, and instrumentation. Explore EnvMart’s extensive category of Push Button Switches for complementary products and additional industrial controls.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This illuminated push button switch features a single pole double throw (SPDT) contact configuration, allowing for versatile switching functionality.
The maximum operating temperature for this model is 55°C, making it suitable for various industrial environments.
It has an IP67 ingress protection rating, ensuring it is dust-tight and resistant to water immersion.
This switch can handle contact AC and DC voltages up to 250 V and has a current rating of 3 A.
The required panel cutout size for this switch is 22.2 mm, designed for easy panel mounting.
It uses wire lug terminals, which facilitate straightforward installation in various applications.
The actuator style is a push button, and it is colored silver, providing a clear user interface.
This switch is compliant with EU ELV, REACH, and UL standards, reinforcing its safety and environmental credentials.
The minimum operating temperature is -20°C, allowing it to function effectively in colder environments.
It is commonly used in control and communication equipment, elevators, escalators, and instrumentation.
The switch is secured with a vandal-proof rear mounting jam nut design, enhancing its security and longevity.
The switch features a red LED, providing clear operational status indication for users.
