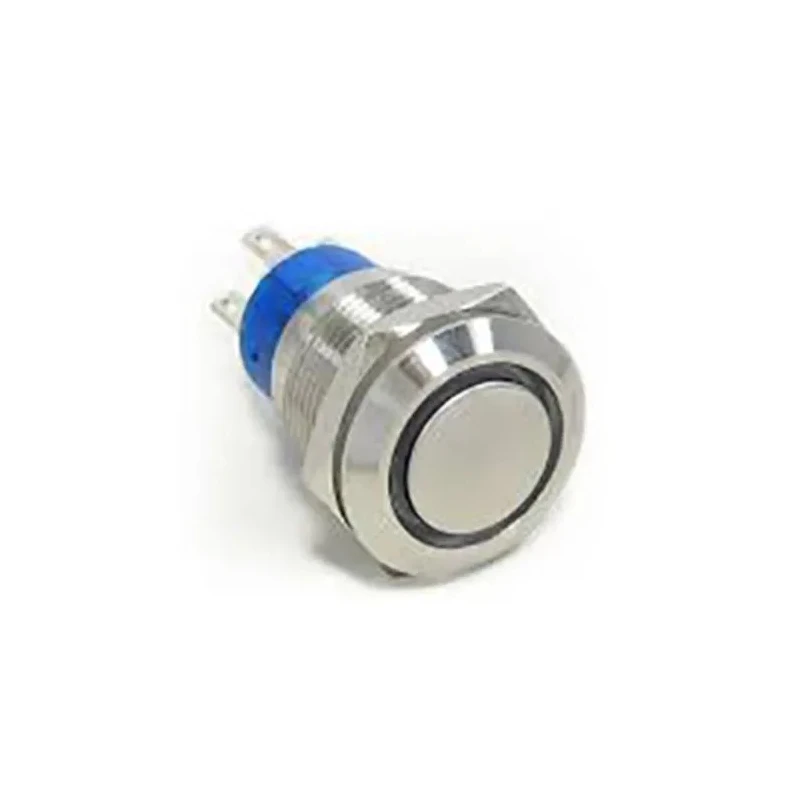

TE Connectivity Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.2 mm Cutout, SPST Configuration, Red AV22
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 22mm |
| Model | AV22 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AV22 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Wire Lug |
| Standards/Approvals | EU ELV Compliant, REACH Compliant, UL (E46765) |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Push Button |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a silver actuator color with a push button style.
- Illuminated with a red LED for clear operational indication.
- IP67 rating ensures excellent ingress protection against dust and water.
- Designed for 250 V AC/DC contact voltage and 3A contact current rating.
- Operates reliably within a temperature range of -20°C to 55°C.
- Wire lug terminals provide secure electrical connections.
- Panel mounting method with a rear mounting jam nut for secure installation.
- Complies with EU ELV, REACH, and UL (E46765) standards.
Product Description
TE Connectivity AV22 Series Illuminated Push Button Switch, model AV22, is designed for reliable and vandal-proof panel mounting applications. Featuring a 22.2 mm panel cutout with a momentary SPST switch configuration, this device operates at 250 V AC/DC with a contact current of 3A. It incorporates a red LED for illumination, enhancing visibility and indicating switch status clearly.
The actuator is silver in color and styled as a push button, providing a premium look and feel suitable for control and communication equipment, elevators, escalators, and instrumentation. The switch is rated IP67, ensuring robust protection against dust and water ingress, making it ideal for demanding industrial environments.
With a compact length of 22 mm, the switch efficiently fits panels using a secure rear mounting jam nut. Wire lug terminal type facilitates straightforward wiring connections. The product meets important certifications including EU ELV compliance, REACH compliance, and UL (E46765) approvals, confirming its safety and environmental standards.
Operational temperature ranges from -20°C to 55°C, ensuring stable performance in various climatic conditions. The TE Connectivity AV22 Series provides a customizable and durable user interface solution for industrial, laboratory, manufacturing, HVAC, and commercial panel systems.
The switch offers a customizable vandal-proof design with premium aesthetics. Includes a silver push button actuator for easy operation. Features a red illuminated LED for clear indication. Panel mounting with a 22.2 mm cutout size and rear mounting jam nut.
IP67 protection rating ensures resilience against environmental factors. Supports momentary switch operation in SPST configuration. Suitable for 250 V AC and DC applications with 3A contact current. Complies with RoHS, REACH, and UL approvals for safety and environmental standards.
Ideal for control systems in industrial and commercial sectors. Explore more products from TE Connectivity and browse the Push Button Switches category at EnvMart for a comprehensive range of industrial-grade electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Single Throw (SPST) contact configuration, suitable for momentary switch operation.
The maximum operating temperature for this switch is 55°C, allowing it to function effectively in various environments.
The switch is rated IP67, providing excellent protection against dust and water ingress, making it suitable for industrial applications.
This switch requires a panel cutout size of 22.2 mm for proper installation.
It is rated for a contact voltage of 250 V AC/DC and a contact current of 3A, making it suitable for various electrical applications.
The switch utilizes wire lug terminals, which facilitate secure and straightforward wiring connections.
The actuator is styled as a push button and is silver in color, providing a premium aesthetic for panel applications.
This switch complies with EU ELV, REACH, and UL (E46765) standards, confirming its safety and environmental compliance.
The minimum operating temperature is -20°C, allowing it to operate effectively in colder conditions.
This model is suitable for control and communication equipment, elevators, escalators, and various industrial and commercial panel systems.
The switch is designed for panel mounting and includes a rear mounting jam nut for secure installation.
The switch features a red LED for illumination, enhancing visibility and indicating the switch status clearly.
