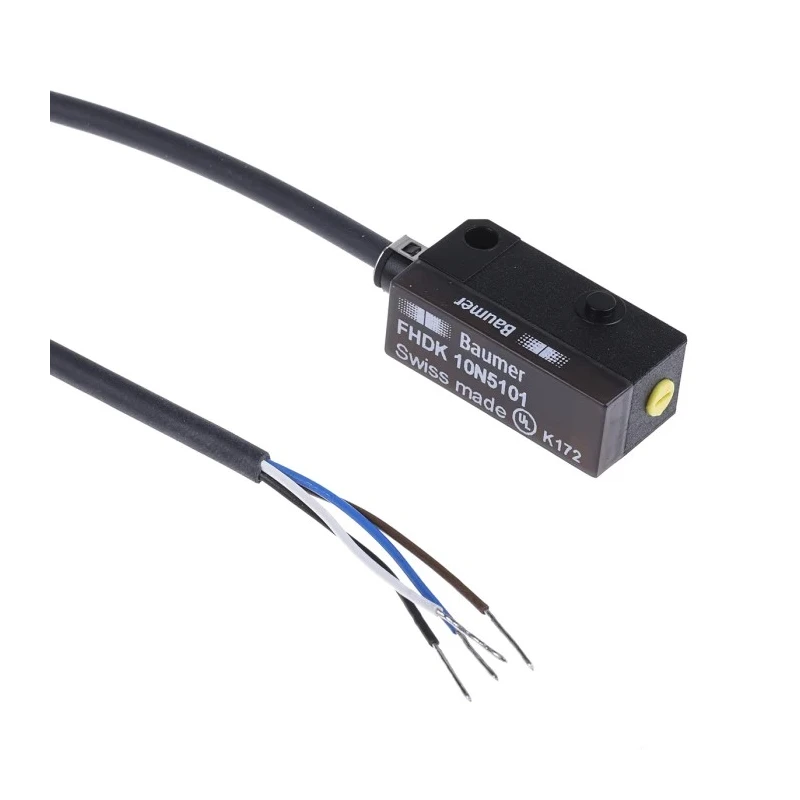

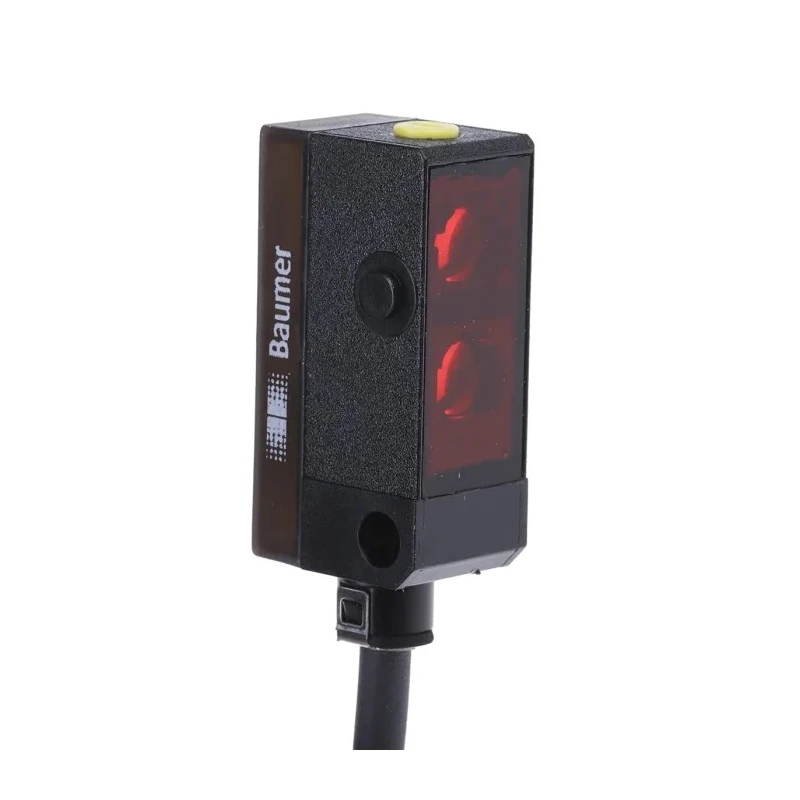

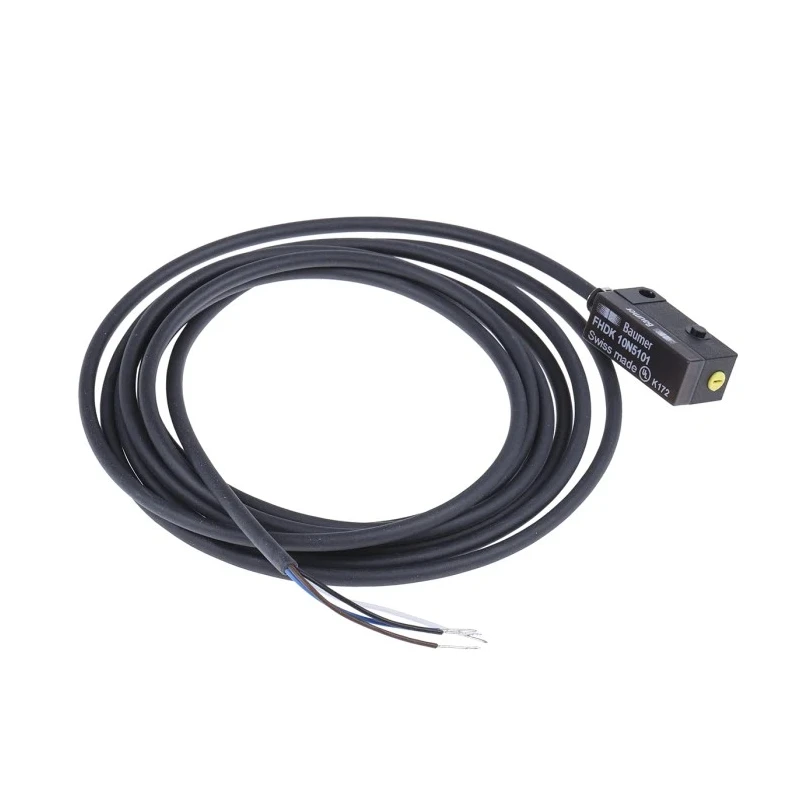

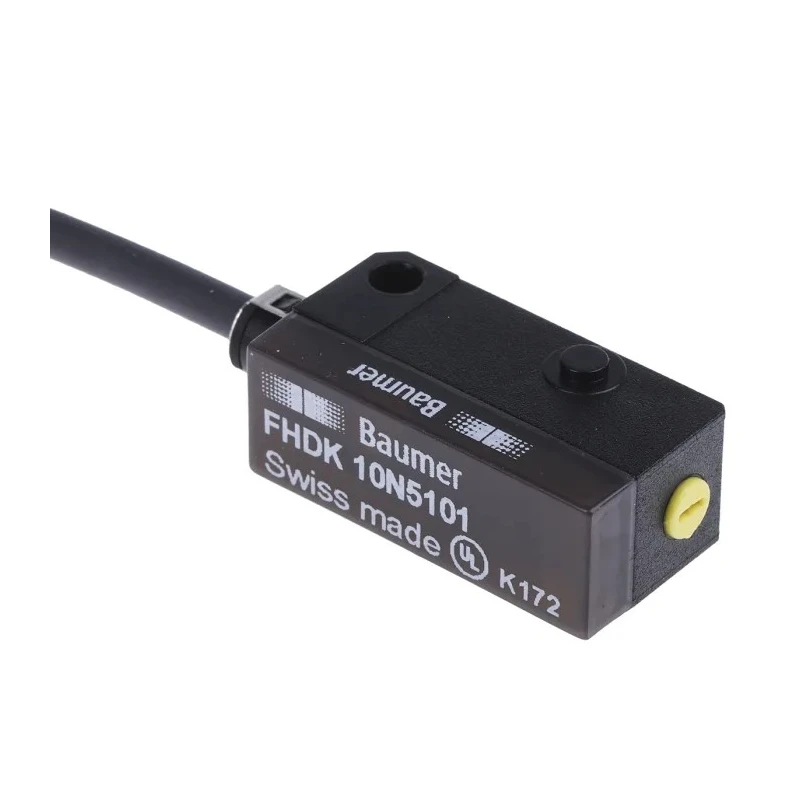

Baumer Diffuse Photoelectric Sensor Block Style, 20 mm to 120 mm Detection Range, NPN Output, IP65 Rated FHDK 10N5101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | Baumer |
| Response time | 1ms |
| Light Source | LED |
| Detection range | 20 mm → 120 mm |
| Model | FHDK 10N5101 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Housing Material | Acrylonitrile Styrene Acrylate |
| Output type | NPN |
| Series | FHDK 10N |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Diffuse |
| Terminal type | 4-Pin M8 |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC |
| Sensor Style | Block |
| Baumer Photoelectric SensorBrand | Baumer |
Key Features
- Utilizes Background Suppression with Triangulation Principle for accurate target detection.
- Subminiature plastic housing with pre-cabled design and mounting bracket included.
- Operates on 10-30 VDC voltage with short-circuit and reverse polarity protection.
- Provides LED output status indication and pulsed visible red beam for easy installation.
- Panel mount type sensor suitable for presence detection and counting applications.
- Wide operating temperature range from -25°C to 65°C ensures reliability in various environments.
- Complies with IEC standards with a fast response time of 1 ms.
Product Description
Baumer FHDK 10N5101 is a diffuse photoelectric sensor designed in a compact block style for precise detection within a range of 20 mm to 120 mm. Featuring an NPN output and rated to IP65, this sensor delivers robust performance for demanding industrial applications.
Its technology uses Background Suppression through the Triangulation Principle, which minimizes false switching by differentiating the target from background reflections. The sensor housing is constructed from Acrylonitrile Styrene Acrylate, ensuring durability and chemical resistance.
Powered by 10-30 VDC, the unit provides short-circuit and reverse polarity protection, making it suitable for continuous industrial use. Included mounting brackets simplify installation, and the visible red LED beam assists in precise alignment.
This sensor is ideal for tasks such as presence detection on bowl feeders, object counting on conveyor belts in limited space, and other automation processes requiring reliable and fast sensing.
Maintaining compliance with IEC standards, it supports a maximum current of 100 mA and a quick response time of 1 ms. Designed for panel mounting, it operates effectively across a temperature range from -25°C to 65°C, suitable for a variety of industrial and automation environments.
Utilizes Background Suppression with the Triangulation Principle for accurate sensing. Robust subminiature plastic housing with IP65 sealing protects against dust and water. Pre-cabled with mounting bracket for convenient installation.
Operates at 10-30 VDC with NPN output configuration. LED output status and pulsed visible red beam for easy aiming and status indication. Fast 1 ms response time suitable for high-speed automation tasks. Wide operating temperature range allows use in harsh industrial conditions.
IEC compliant ensuring safety and quality standards.
The Baumer FHDK 10N5101 diffuse Photoelectric Sensor is a trusted component in industrial automation, laboratory equipment, manufacturing processes, conveyor systems, and commercial automation tasks. Explore EnvMart’s collection of sensors to find complementary automation and control products for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 20 mm to 120 mm.
It features an NPN output type.
The response time is 1 ms, making it suitable for high-speed automation tasks.
It operates on a voltage range of 10-30 VDC.
This sensor is rated IP65, providing protection against dust and water.
The housing is made from Acrylonitrile Styrene Acrylate, ensuring durability and chemical resistance.
It operates effectively within a temperature range of -25°C to 65°C.
The FHDK 10N5101 is designed for panel mounting and includes mounting brackets for convenience.
It utilizes an LED light source for detection.
The maximum current for this model is 100 mA.
Yes, it complies with IEC standards, ensuring safety and quality.
The interface type is IO-Link, allowing for easy integration into automation systems.
