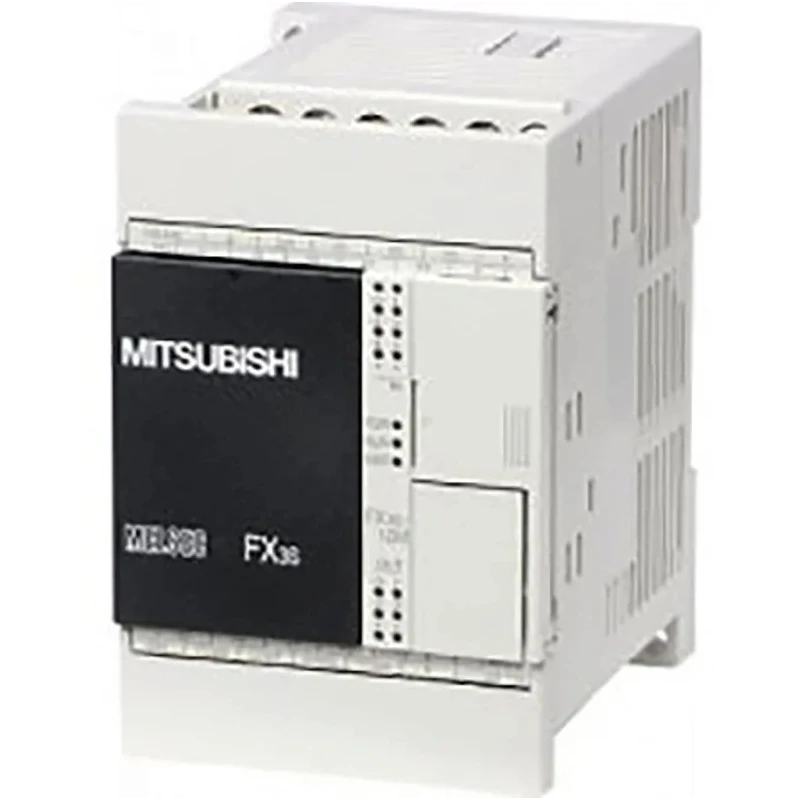

Mitsubishi Series PLC CPU, 8-Input, Sink Input, 6 Outputs, Transistor (Source) Output FX3S

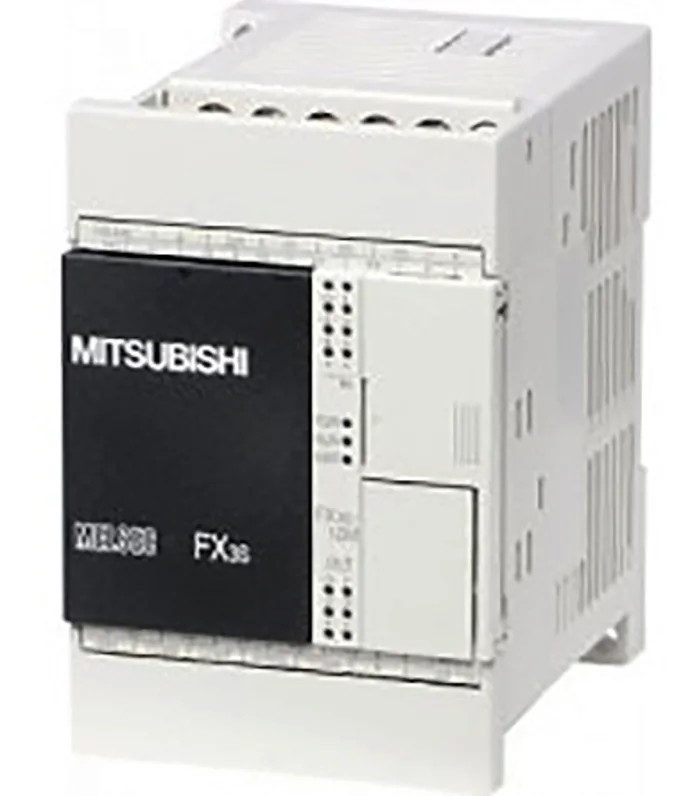

The Mitsubishi Electric FX3S-14MT-DSS is a versatile and compact PLC CPU unit designed for industrial automation systems. This PLC offers 8 sink-type digital inputs and 6 transistor (source) outputs, making it suitable for controlling various automation processes in manufacturing, assembly lines, and industrial machinery.

Engineered with a minimal footprint (dimensions: 60mm length, 90mm width, 49mm depth) and an integrated power supply, the FX3S series ensures ease of installation and maintenance-free operation. It features a robust EEPROM memory capable of storing up to 4000 program steps, coupled with a built-in real-time clock and battery backup to keep operations running smoothly even during power interruptions.

Connectivity is enhanced with two communication ports including RS422 and USB. The built-in USB port supports programming communication at high speeds up to 12 Mbps, enabling fast configuration and integration into existing control systems using Mitsubishi's GX Works2 software. The output channels are transistor (source) type rated for 500mA output current, supporting diverse industrial loads safely.

Operating temperature ranges from 0°C to 55°C allow reliable use in a variety of factory conditions. The PLC units mount easily on standard DIN rails, streamlining deployment in electrical cabinets and control panels. The use of the Step Ladder programming language supports ease of development and familiar control strategies for automation engineers.

Manufactured in Japan, the FX3S-14MT-DSS exemplifies Mitsubishi Electric’s commitment to quality and innovation in industrial automation solutions. It serves as an efficient, compact, and cost-effective controller ideal for space- and cost-sensitive applications.

Compact, high-performance PLC CPU with integrated power supply and maintenance-free memory. Supports 8 sink digital inputs and 6 transistor source outputs with 500mA max output current. Two high-speed communication ports: USB (12 Mbps) and RS422.

Programmable via GX Works2 software using Step Ladder language. Includes battery backup and real-time clock for reliable operation. Operating temperature range from 0°C to 55°C. DIN rail mounting supports easy installation.

Program capacity of up to 4000 steps. Country of origin: Japan.

This Mitsubishi Electric PLC CPU is well-suited for automation tasks in industrial, manufacturing, HVAC, water treatment, and laboratory environments that require reliable, compact, and efficient programmable controllers. Explore the Mitsubishi Electric range for complementary automation control products and systems on EnvMart.
