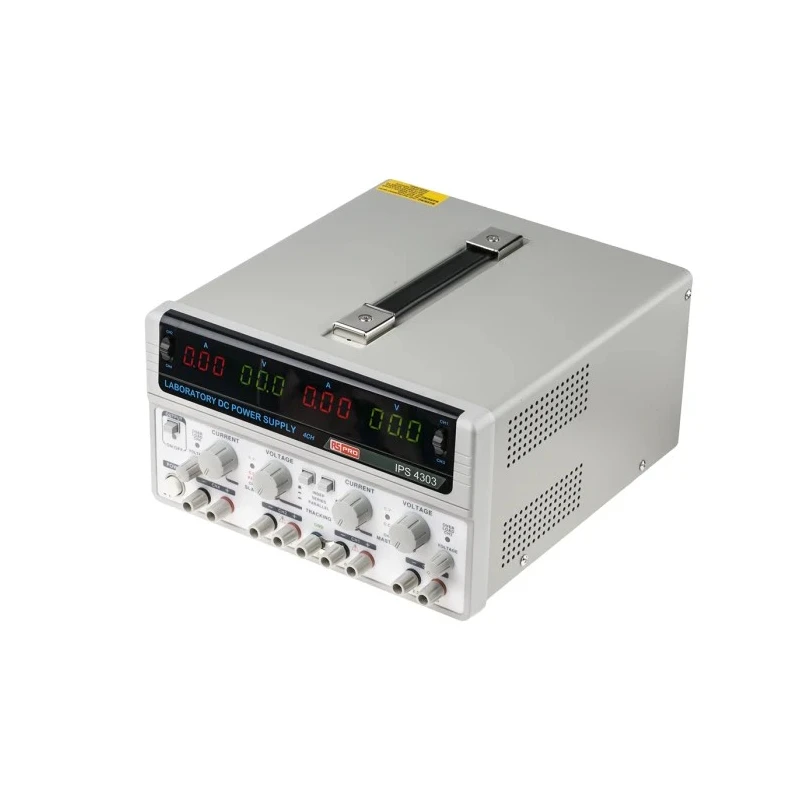

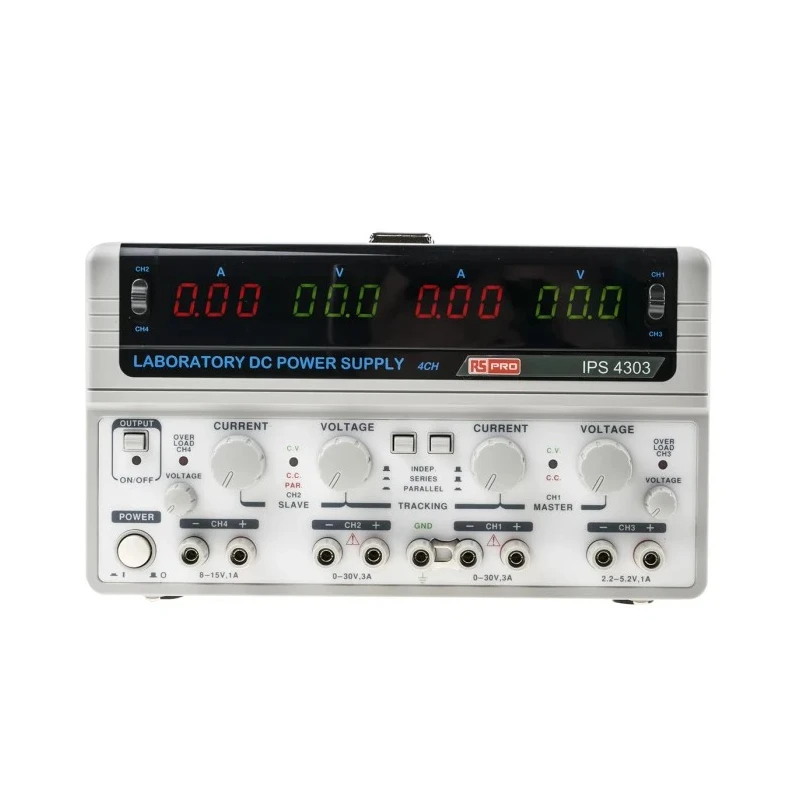

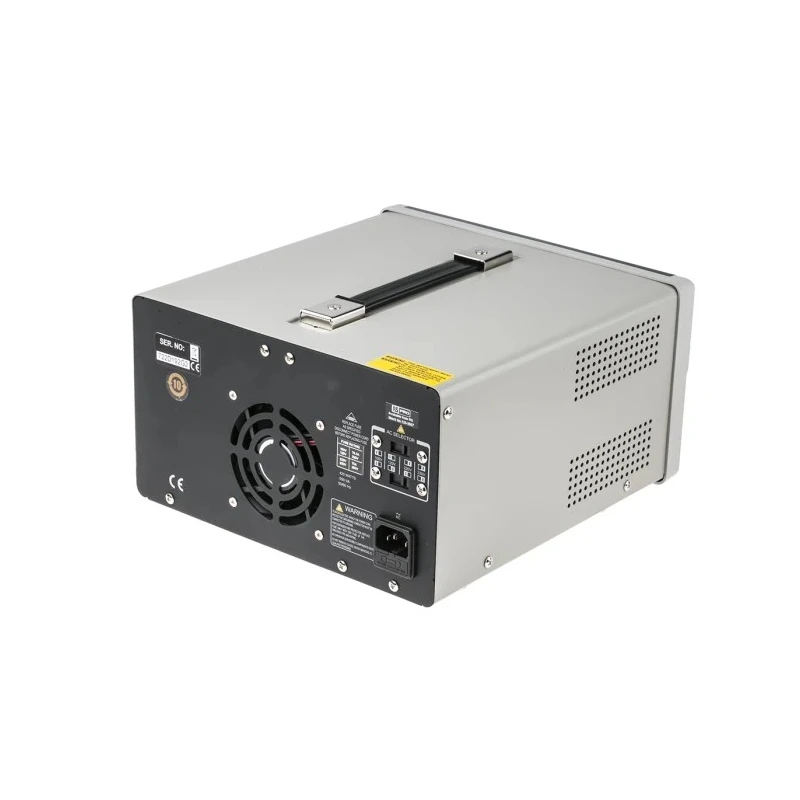

RS PRO Digital Bench Power Supply, 4-Output 5.2 V to 27.2 V, 200 W, 3 A Max 123-3567

RS PRO 123-3567 Digital Bench Power Supply is a high-quality industrial linear DC power supply designed for precise electronics testing and development. Offering four independent output channels, this model ranges from 5.2 V minimum output voltage up to 27.2 V maximum output voltage with a maximum output current of 3 A and a total power rating of 200 W. It supports digital output with crisp 3-digit LED displays for voltage and current monitoring on all outputs.

The device is equipped with important features such as overload and reverse polarity protection, as well as an output ON/OFF switch to enhance user safety. A fan speed control circuit effectively minimizes noise generation, improving the testing environment. The power supply supports tracking operation which allows voltages or currents from multiple outputs to be combined in series or parallel configurations, extending the versatility of power delivery to electronic circuits.

Designed to operate under ambient temperatures from 0 to 40 degrees Celsius, this power supply is suitable for a variety of industrial, laboratory, educational, and manufacturing environments. It comes with an IEC 320 plug type, accepting wide input supply voltages from 100 to 230 V AC, accommodating diverse global electric standards.

This RS PRO model manufactured in China follows general industry standards to deliver clean, low ripple power with noise levels under 2 mVrms at frequencies from 5 Hz to 1 MHz, crucial for sensitive electronic testing and precise measurements.

This Bench Power Supply features four independent output channels for flexible voltage options. Digital display with 3-digit LED readout offers clear monitoring of voltage and current. Includes overload and reverse polarity protection enhancing safe operation.

Fan speed control circuit minimizes noise during bench use. Supports tracking operation, allowing series and parallel voltage/current output. Designed for applications in education, laboratories, and industrial electronics testing.

Operates within 0°C to 40°C environment for reliable performance. Equipped with IEC 320 plug and supports 100 V to 230 V AC supply voltage.

This product is part of the RS PRO IPS series known for affordability and reliability. It is a versatile tool ideal for electronics development, test & measurement instrumentation, and educational lab settings. Explore more bench power supplies and precision testing instruments from RS PRO in the EnvMart catalog.
