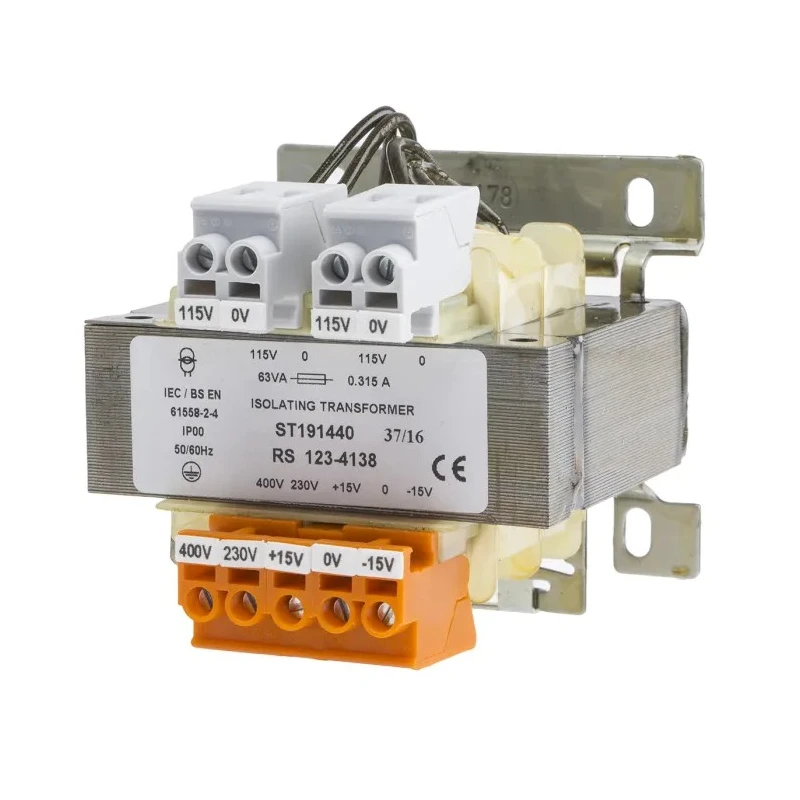

RS PRO 63 VA DIN Rail Isolation Transformer, 230 V AC, 400 V AC Primary, 2 x 115 V Secondary, 50-60 Hz, 130°C Max 123-4138

RS PRO 123-4138 is a 63 VA DIN rail mount isolation transformer designed for safe and efficient voltage transformation in industrial and electronic applications. It features primary voltages of 230 V AC and 400 V AC, with two secondary outputs each providing 115 V AC. This configuration ensures adaptability in various setups requiring dual output voltages.

The transformer operates effectively within a frequency range of 50 to 60 Hz, suitable for a broad array of electrical supply environments. Its insulation and coil varnishing protect against humidity and rust, enhancing longevity and operational safety. Laminations incorporated into the design help maintain low electrical noise levels, critical for sensitive equipment.

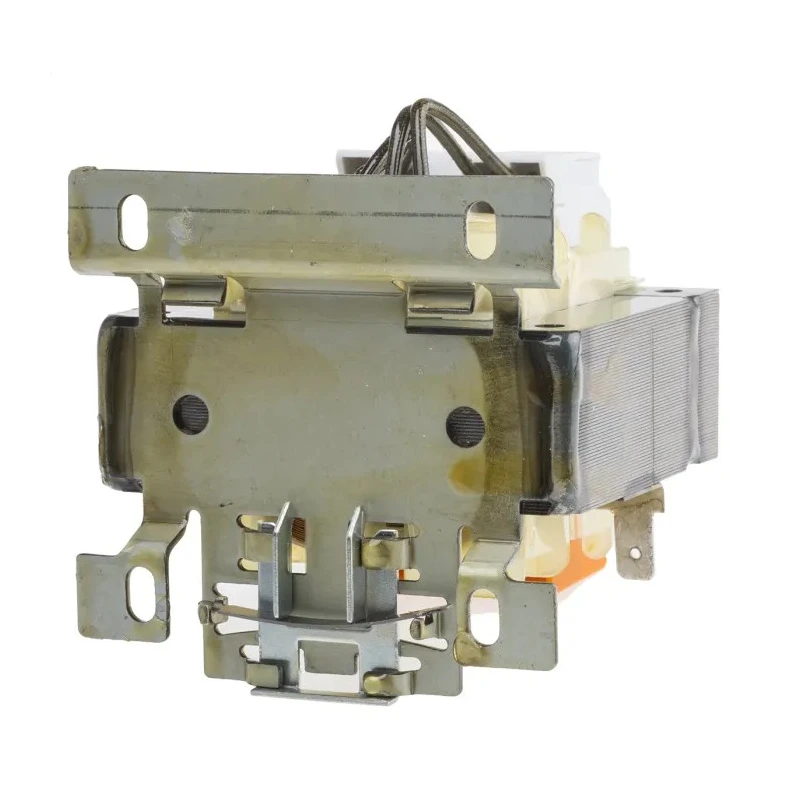

Dimensionally compact, with a length of 78 mm, width of 60 mm, and depth of 94 mm, it is ideal for installations with space constraints. Mounting brackets permit easy attachment to DIN rails or screw fixing, facilitating versatile deployment in control panels and switchgear assemblies.

This product meets rigorous international standards such as ASNZS 61558..6, IEC BS EN 615584, as well as environmental and safety certifications including RoHS and CE, validating its compliance and quality for industrial use.

The maximum operating temperature of 130°C ensures stable operation under demanding conditions, making it suitable for manufacturing, electrical distribution, automation, and laboratory environments where reliable and precise power delivery is essential.

Provides isolation to safeguard electrical equipment from power surges. Equipped with DIN rail mounting for secure and efficient installation. Operates within 50 to 60 Hz frequency range for wide compatibility. Constructed for high durability with varnish-impregnated coils and lamination to reduce electrical noise.

Compact dimensions of 78 mm length, 60 mm width, and 94 mm depth for space-saving setup. Certified to multiple standards including ASNZS 61558 series, IEC BS EN, RoHS, and CE for assured quality. Designed to function reliably up to a maximum operating temperature of 130°C.
