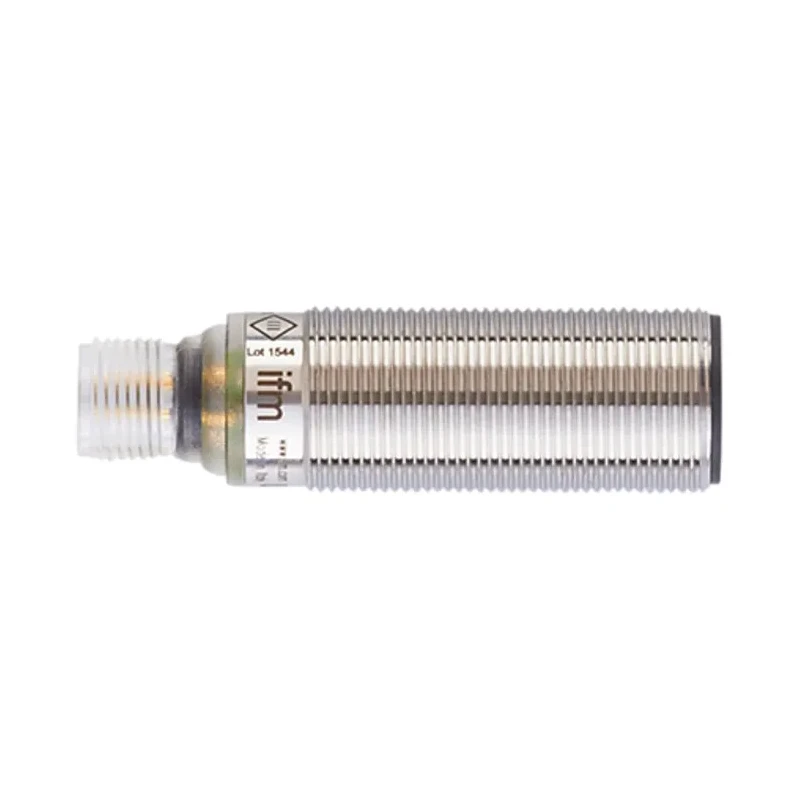

ifm electronic Threaded Barrel Ultrasonic Proximity Sensor M18 x 1 3000 mm 35mA 0/10 V 3V-30 V DC UGT502

ifm electronic UGT502 is a threaded barrel Ultrasonic Proximity Sensor designed for precise object detection in industrial automation environments. The M18 x 1 body thread and compact 60.5 mm length allow for versatile installation where space is limited. Its ultrasonic sensing technology enables detection of various object types including those with challenging surface properties, such as shiny or transparent materials.

The sensor supports a maximum detection distance of 3000 mm and transmits output signals in the 0/10 V range with a switching current of 35mA. Connectivity is provided through a robust M12 4-pin connector, compatible with industrial automation systems. It features a tough housing made from epoxy glass ceramic, stainless steel, and polyamide, delivering excellent resistance to mechanical stress and environmental factors.

Engineered for demanding industrial use, the UGT502 operates reliably within a temperature range of -20°C to 70°C and offers protection rated to IP67, enabling use in harsh and dusty or wet conditions. The device complies with important certifications such as CE and cULus, ensuring operational safety and electromagnetic compatibility.

The ultrasonic sensor's design minimizes contamination buildup through a vibrating sound transducer, enhancing longevity and reducing maintenance. This model is well suited for applications across manufacturing, automation, HVAC, and water treatment industries where non-contact and reliable proximity sensing is essential.

Equipped with an M18 x 1 threaded barrel body style for secure mounting. Operates with an output type of 0/10 V and switching current of 35mA. Interfaces via an M12 4-pin connector for reliable connectivity. Features IP67 rating ensuring protection against dust and water ingress.

Handles operating temperatures from -20°C to 70°C for versatile application. Constructed from epoxy glass ceramic, stainless steel, and polyamide for durability. Maximum supply voltage ranges between 3V to 30V DC for flexible power use.

Certified to standards including CE, cULus, and various EN and UL approvals for quality assurance.

Choose ifm electronic UGT502 for robust, precise ultrasonic distance measurement and reliable industrial proximity sensing. Browse our extensive range of ultrasonic sensors at EnvMart for similar advanced automation components.
