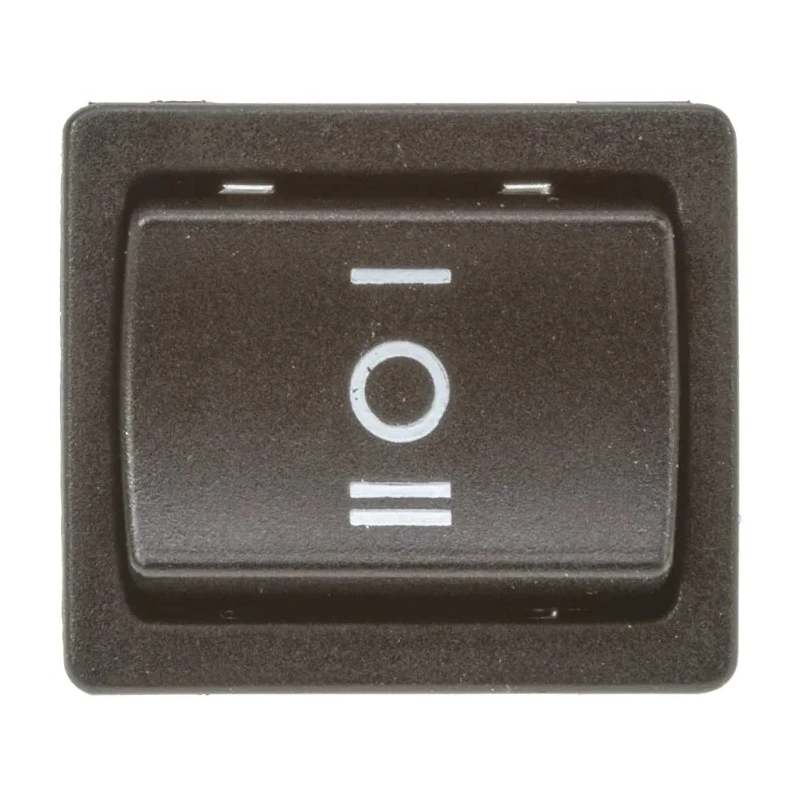

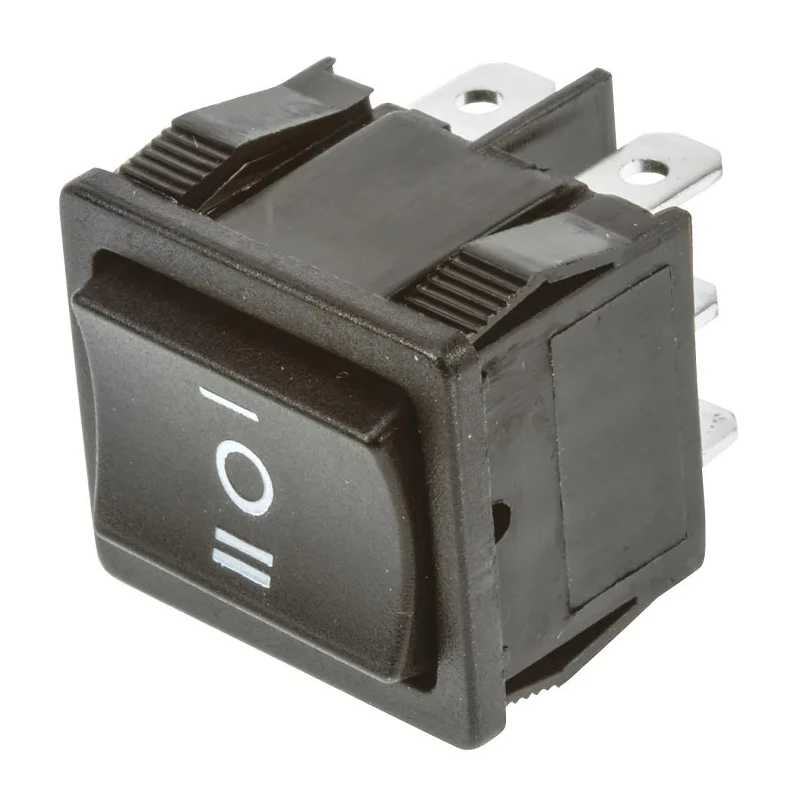

TE Connectivity DPDT On-Off-On Rocker Switch Panel 1-1634200-7 10A, IP66, Panel Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP66 |
| Mount Type | Panel |
| Housing Material | Polyamide 66 |
| Series | PRE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22.2 x 19.4 mm |

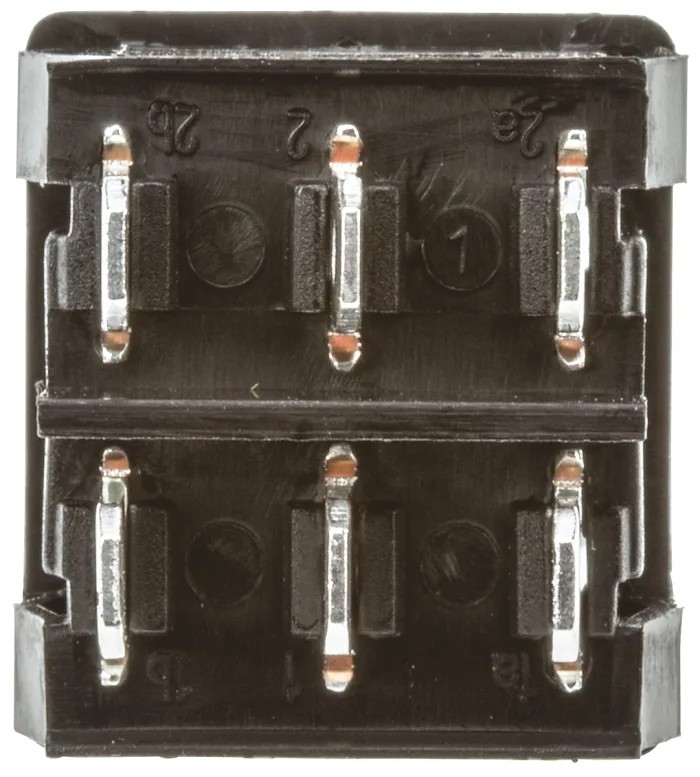

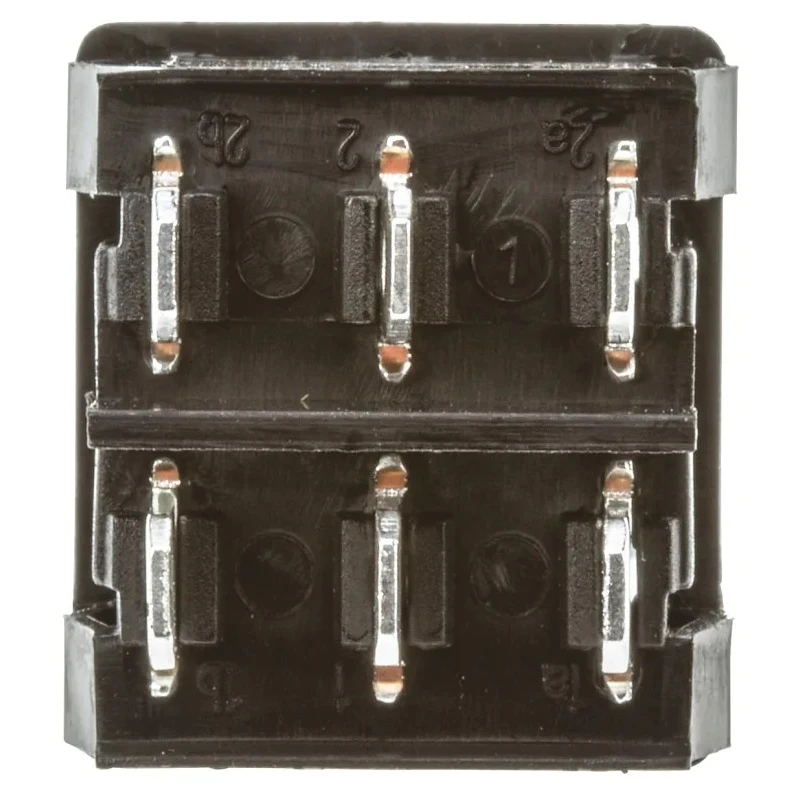

| Terminal type | Quick Connect |
| Standards/Approvals | VDE, UL, RoHS, ENEC, CSA, CE |
| Switch Operation | On-Off-On |
| Actuator Colour | Black |
| Contact DC Voltage | 15V dc |
| Actuator Style | Rectangular |
| Switch Contact Current | 10A |
| Mechanical Life | 100000Operations |
| TE Connectivity DPDT, On-Off-On On-Off-On Rocker Switch PanelBrand | TE Connectivity |
Key Features
- Double Pole Double Throw (DPDT) contact configuration supporting On-Off-On switching.
- Constructed with durable polyamide 66 housing and black rectangular actuator.
- Panel mount type with a panel cutout size of 22.2 x 19.4 mm.

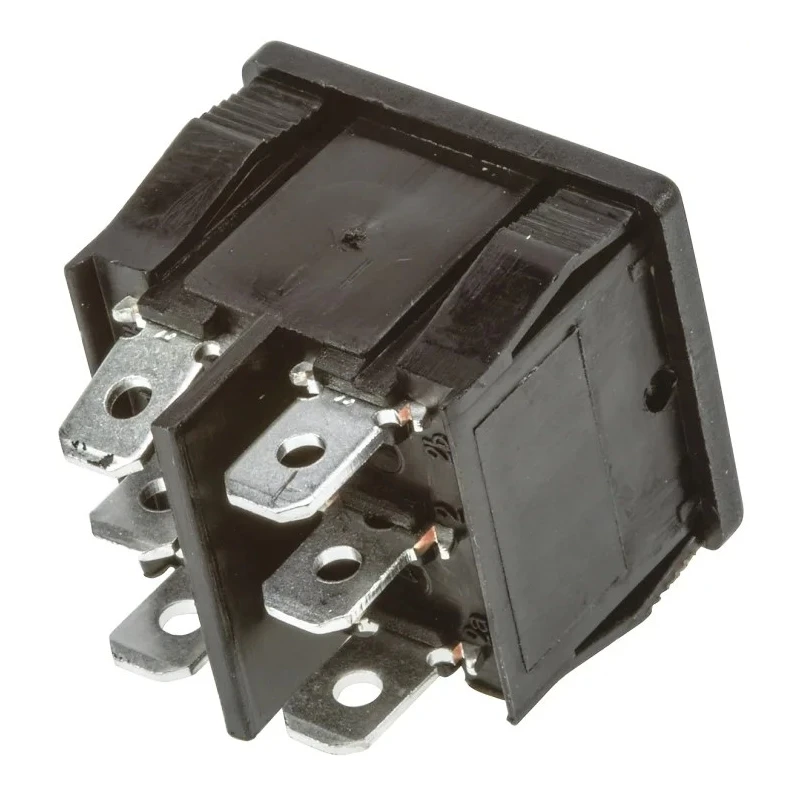

- Quick connect terminals for easy installation and maintenance.
- Rated for mechanical life of 100000 operations ensuring long-term durability.
- Wide operating temperature range from -25°C to 85°C suitable for diverse environments.
- Complies with standards including VDE, UL, RoHS, ENEC, CSA, and CE.
- Contact DC voltage rating of 15V dc for low voltage applications.
Product Description
TE Connectivity 1-1634200-7 DPDT On-Off-On Rocker Switch Panel combines durability and reliable electrical performance with a rugged polyamide 66 housing. Designed for panel mounting, it requires a 22.2 x 19.4 mm cutout and features quick connect terminals facilitating ease of installation in industrial electrical and automation systems.

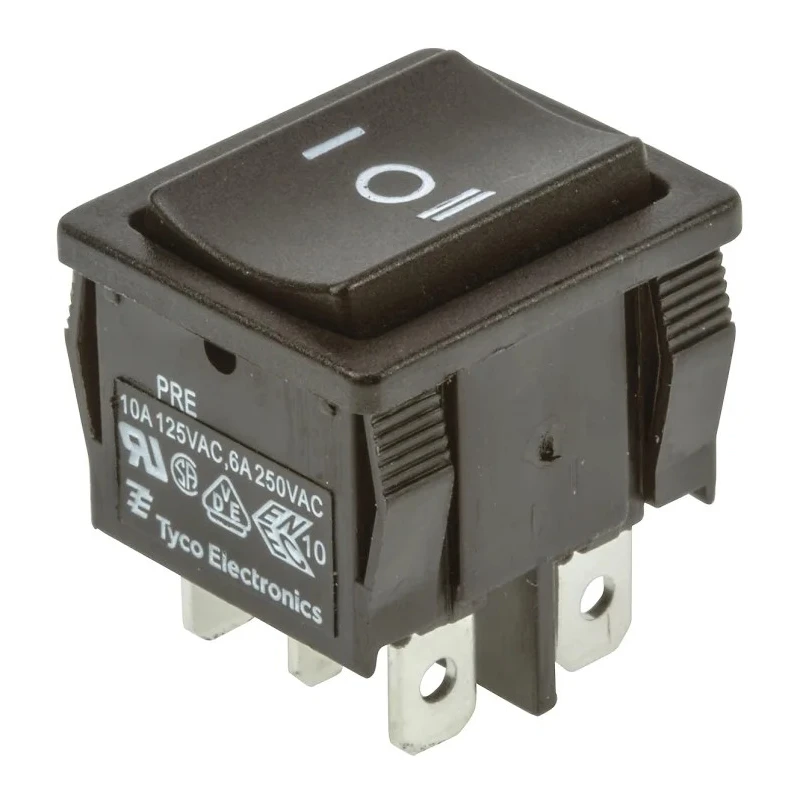

This rocker switch supports a Double Pole Double Throw contact configuration allowing On-Off-On switch operation with a robust contact current rating of 10A at 125 Vac and 6A at 250 Vac. The switch is rated to withstand a mechanical life of 100000 operations, making it ideal for repetitive switching tasks in both industrial and commercial environments.
The black rectangular actuator is designed for reliable actuation without illumination capability. Its IP66 rating ensures protection against dust and water ingress, enabling use in harsh or exposed environments. Operating temperatures range from -25°C to 85°C, accommodating a variety of installation conditions.
The switch meets key international standards including VDE, UL, RoHS, ENEC, CSA, and CE, confirming compliance with safety and environmental requirements. Rated for a DC voltage of 15V, it is suited for low voltage control circuits.
Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching. On-Off-On switch operation for flexible control applications. Durable polyamide 66 housing for long service life. Panel mounting with precise cutout size of 22.2 x 19.4 mm.
Quick connect terminal type for simplified wiring. Rated mechanical life of 100000 operations for reliability. Wide operating temperature range from -25°C to 85°C. Achieves IP66 ingress protection rating against dust and water jets.
Meets international standards VDE, UL, RoHS, ENEC, CSA, and CE.
This Rocker Switch panel is applicable in electronics and electrical automation systems for controlling power circuits with precision and safety. Suitable industries include manufacturing, industrial control panels, HVAC controls, and commercial electrical installations.
Explore more electrical switch solutions at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for On-Off-On switch operation.
It has a contact current rating of 10A at 125 Vac and 6A at 250 Vac, suitable for various electrical applications.
The switch has an IP66 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
The required panel cutout size for this rocker switch is 22.2 x 19.4 mm.
It operates within a wide temperature range of -25°C to 85°C, accommodating various installation conditions.
The rocker switch is rated for a mechanical life of 100,000 operations, ensuring reliability for repetitive tasks.
It is constructed with a durable polyamide 66 housing, which contributes to its long service life.
This model features quick connect terminals, facilitating easy installation and maintenance.
It complies with several international standards, including VDE, UL, RoHS, ENEC, CSA, and CE.
The contact DC voltage rating is 15V dc, making it suitable for low voltage applications.
The actuator is rectangular in style and is colored black, designed for reliable actuation without illumination capability.
