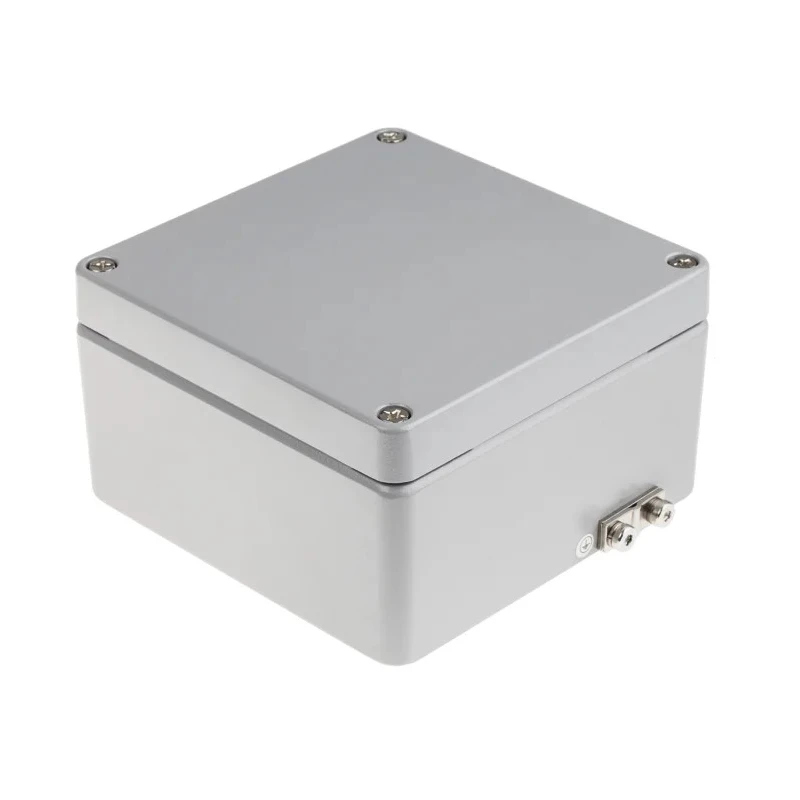

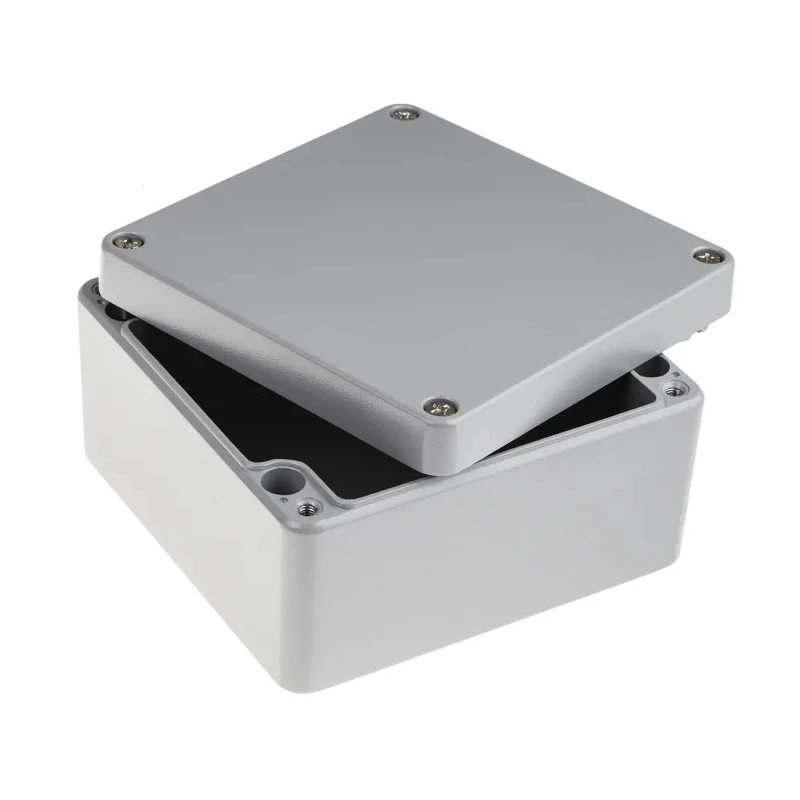

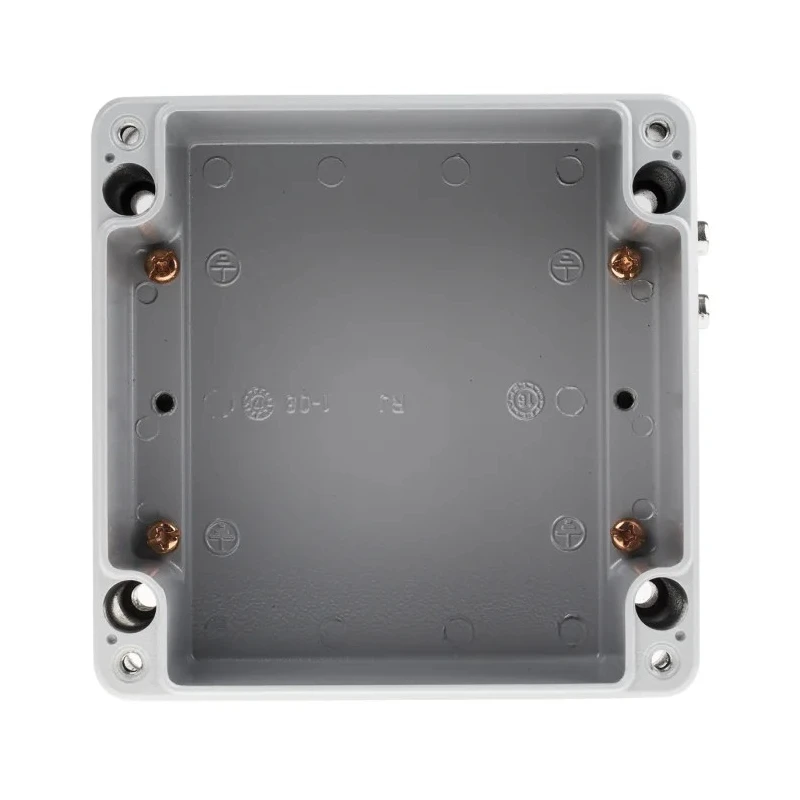

RS PRO Grey Lid Aluminium Enclosure IP68 IP67 IP66 IP65 IK09 91 mm x 160 mm x 160 mm IP68
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Model | IP68 |
| IP Rating | IP68, IP67, IP66, IP65 |
| Service Temperature | -50°C to 135°C |
| Series | RS PRO |
| External Width | 160mm |
| External Height | 91mm |
| Shielding | Unshielded |
| Hazardous Area Certification | IECEx, ATEX |
| Standards/Approvals | RoHS Compliant |
| External Length | 160mm |
| Lid Colour | Grey |
| IK Rating | IK09 |
| Gasket Material | Silicon |
| Internal/external earthing | 4 mm2 to 120 mm2 internal and external |
| • Mechanical Strength | in accordance with 60079-0, impact energy 7 Nm |
| • Protection Class | EN60529, IP66 |
| RS PRO Grey Lid Aluminium Enclosure, IP66, IK09, 81 mm x 100 mm x 100 mmBrand | RS PRO |
Key Features
- Diecast aluminium body with grey powder-coated finish for durability.
- Certified for hazardous areas with IECEx and ATEX approval.
- High mechanical strength with IK09 rating and impact energy of 7 Nm.
- Suitable for industrial applications including process control, automation, and mining.
- Silicon gasket ensures effective sealing against dust and water ingress.
- Includes stainless steel captive lid screws for secure fastening.
- Wide service temperature range from -50°C to 135°C.
- Internal and external earthing provisions up to 120 mm2.
Product Description
RS PRO IP68 grey lid aluminium enclosure offers robust and reliable housing with key protection ratings including IP68, IP67, IP66, and IP65. Designed with a durable diecast aluminium body and a grey powder-coated finish, this enclosure suits demanding industrial environments.
This enclosure is certified for hazardous areas with IECEx and ATEX approvals, making it ideal for explosive atmospheres and strict safety requirements. Its IK09 impact rating and mechanical strength tested to 7 Nm impact energy provide excellent resistance to physical damage.
With dimensions of 91 mm in height, 160 mm in width, and 160 mm in length, it is well-suited for process control systems, automation, mining industries, locomotives, crane hoists, solar panels, load cells, oil meters, and high torque brakes. The silicon gasket ensures superior sealing against moisture and dust to meet the enclosure's protection class per EN60529 (IP66).
The enclosure includes stainless steel captive lid screws for secure closing and supports internal/external earthing from 4 mm² to 120 mm², complying with relevant IEC/EN standards (60079-0, 60079-7, 60079-31) and ISO 9001:2008 quality management systems.
Diecast aluminium body and grey powder coat finish for durability. IECEx and ATEX hazardous area certifications. IK09 impact rating for mechanical strength. Multi-level IP protection ratings: IP68, IP67, IP66, and IP65. Silicon gasket for effective sealing against dust and water.
Includes 4 stainless steel captive lid screws. Service temperature range from -50°C to 135°C. Internal/external earthing provisions accommodate 4 mm² to 120 mm² conductors. Compliance with IEC/EN standards for explosion protection and mechanical strength.
Manufactured in India adhering to ISO 9001:2008 quality standards.
This RS PRO aluminium enclosure is an excellent choice for industrial, process control, automation, electrical, and mining applications requiring high protection, durability, and certification compliance. Explore more electrical enclosures and related products at EnvMart for your project needs.
Explore more products in our General Purpose Enclosures category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The enclosure has external dimensions of 91 mm in height, 160 mm in width, and 160 mm in length.
It has multiple IP ratings, including IP68, IP67, IP66, and IP65, providing high protection against dust and water ingress.
The service temperature range is from -50°C to 135°C, making it suitable for various industrial environments.
It is certified for hazardous areas with IECEx and ATEX approvals, ensuring compliance with safety standards for explosive atmospheres.
This model has an IK09 impact rating, which indicates its mechanical strength and resistance to physical damage.
The body is made of diecast aluminium with a grey powder-coated finish for added durability.
It features a silicon gasket that ensures effective sealing against dust and water ingress.
It supports internal and external earthing provisions for conductors ranging from 4 mm² to 120 mm².
It is suitable for industrial applications, including process control, automation, mining, and other environments requiring robust protection.
The enclosure includes stainless steel captive lid screws for secure fastening of the lid.
It complies with relevant IEC/EN standards for explosion protection and has RoHS compliance.
This enclosure is manufactured in India, adhering to ISO 9001:2008 quality management standards.
