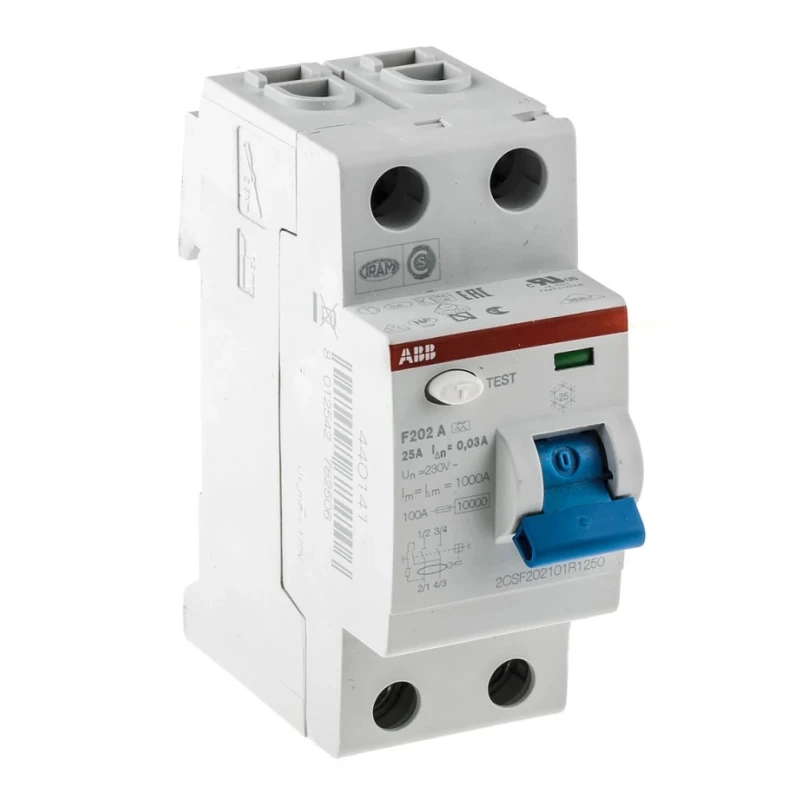

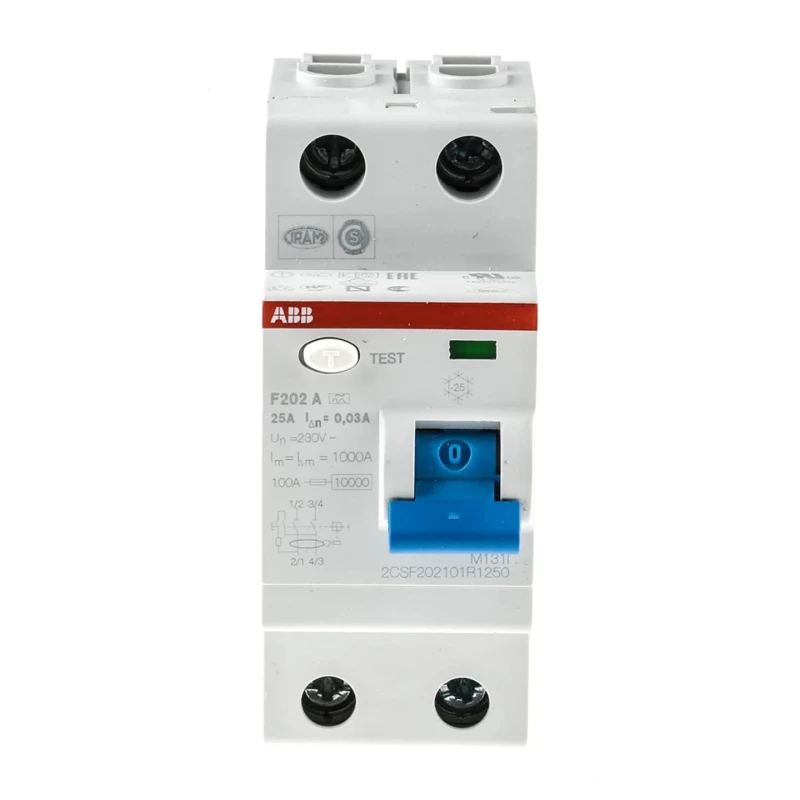

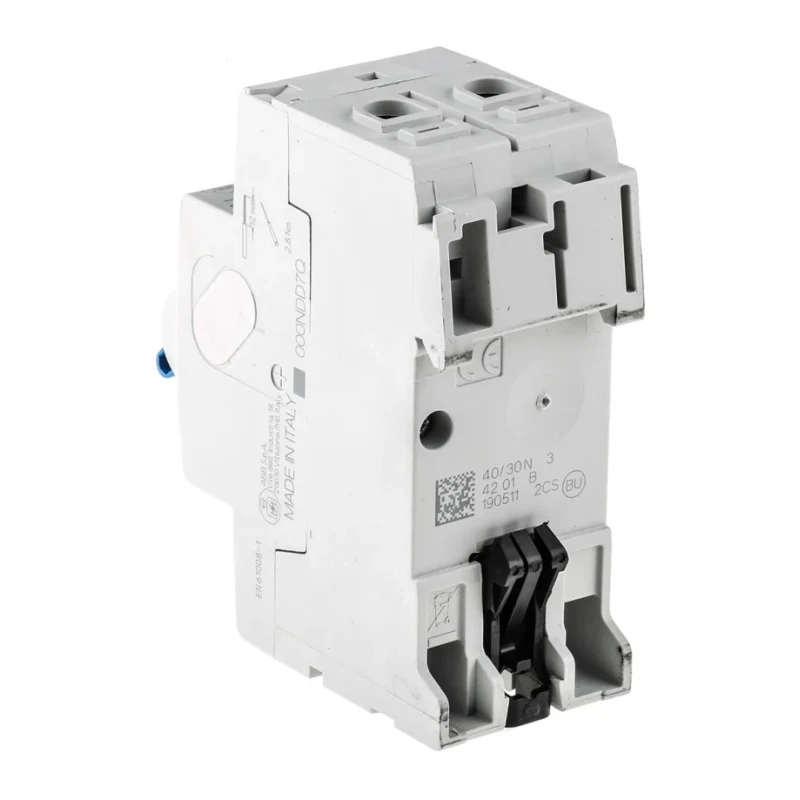

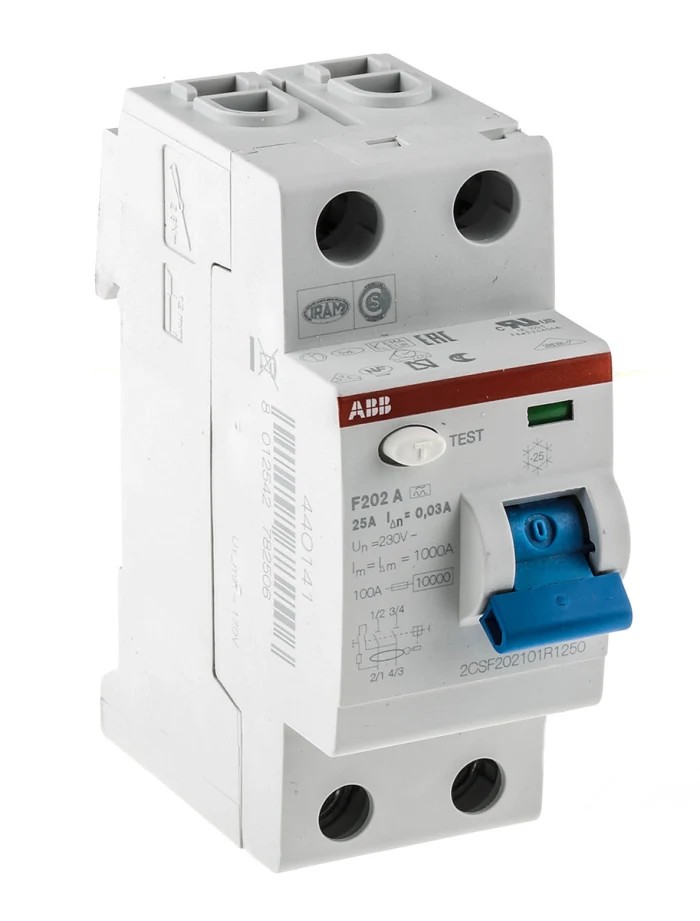

ABB Residual Current Circuit Breaker F200 Series 25A 2-Pole 30 mA Type A 1 kA Breaking 2CSF202101R1250 - F202A-25/0.03

The ABB 2CSF202101R1250 - F202A-25/0.03 Residual Current Circuit Breaker (RCCB) from the F200 series offers a reliable and robust solution for electrical circuit protection. It is rated at 25 amperes with a 2-pole configuration and is sensitive to earth leakage currents with a trip sensitivity of 30 mA, classified as Type A to detect both alternating and pulsating direct currents. This makes it suitable for a variety of industrial and commercial electrical installations.

The RCCB’s compact dimensions of 69 mm width, 85 mm height, and 85 mm depth allow installation in limited space environments. Its thermoplastic housing delivers excellent resistance to mechanical impacts and abrasion, ensuring durability in harsh industrial conditions. Installation is facilitated by DIN rail mounting and secure screw-type terminals for stable electrical connections. The device offers an IP20 rating, which provides finger-safe protection against intrusion by larger solid objects over 12 mm.

It supports an operating temperature range of -25°C to +55°C, making it suitable for demanding environmental conditions. With an instantaneous break time and a breaking capacity of 1 kA, it ensures prompt response to electrical faults, mitigating potential damage to connected equipment.

Compliance with international standards IEC/EN 61008, REACH, RoHS, and UL 1053 guarantees safety and regulatory adherence. Manufactured in Italy, this RCCB supports the electrical safety needs for industrial motors, process machinery, and packaging equipment, maintaining protection against leakage currents over a long lifespan capable of enduring up to 10,000 operating cycles.

Type A earth leakage protection sensitive to AC and pulsating DC currents. Compact size with dimensions 69mm (W) x 85mm (H) x 85mm (D) for constrained installations. DIN rail mounting for quick and secure installation. Screw type terminals ensure reliable electrical connections.

Thermoplastic housing offers impact and abrasion resistance. IP20 finger-safe rating protecting from objects greater than 12 mm. Operating temperature ranges from -25°C to +55°C for versatile environmental use. Instantaneous break time for rapid fault clearance.

Compliant with IEC/EN 61008, REACH, RoHS, and UL 1053 standards. Made in Italy ensuring quality and durability.

Ideal for industrial, commercial, and electrical automation applications, this ABB F200 series RCCB protects personnel and equipment by detecting leakage currents and quickly disconnecting the circuit to prevent electrical hazards. Explore similar high-quality circuit protection devices on EnvMart for enhanced electrical safety and system reliability.
