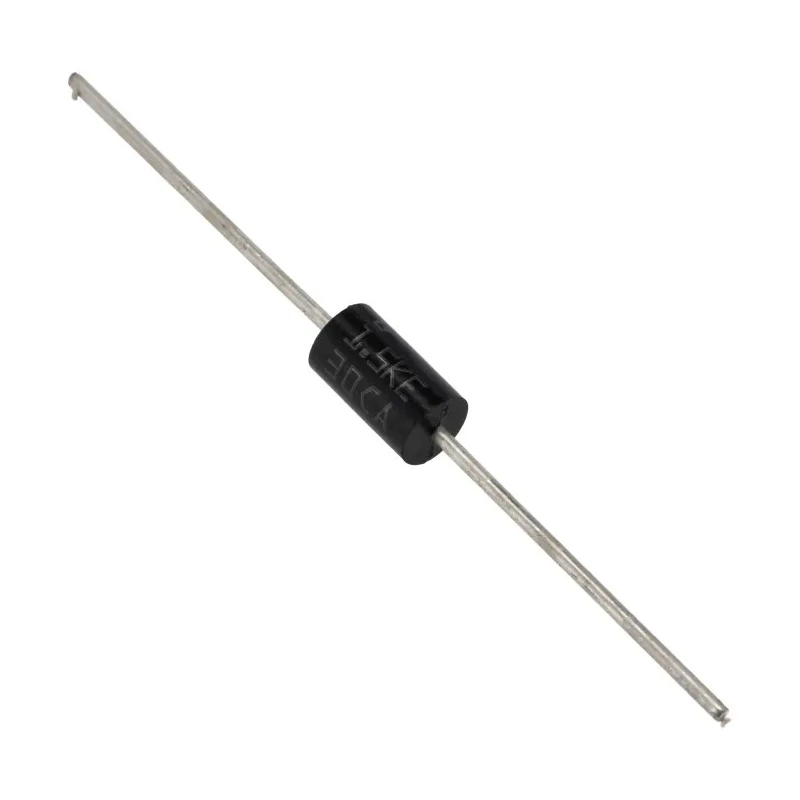

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin DO-201 1.5KE30CA

STMicroelectronics 1.5KE30CA is a high-performance 1-Element Bi-Directional Transient Voltage Suppression (TVS) Diode engineered for protecting electronic circuits from transient voltage surges and spikes. Rated for a peak pulse power dissipation of 1.5 kW, it operates efficiently in harsh industrial and electronic environments requiring robust voltage clamping performance.

The device features a single diode configuration with bi-directional voltage clamping, making it suitable for AC and DC transient protection. The package type is DO-201, designed for through-hole mounting, facilitating easy installation in various printed circuit boards and electronic assemblies.

With a minimum breakdown voltage of 28.5 V and a maximum reverse standoff voltage of 25.6 V, this diode ensures accurate transient suppression without affecting normal circuit operation. It accommodates a maximum peak pulse current of 187 A and features a clamping voltage of 53.5 V to safely redirect voltage spikes.

The wide operating temperature range from -65°C to +175°C makes it ideal for use in automotive, industrial, laboratory, manufacturing, and power supply applications where temperature extremes are common. The device's low leakage current of 1 µA enhances efficiency and reduces power loss during standby operation.

Mechanical dimensions include a length of 9.5 mm and a diameter of 5.3 mm, providing a compact profile suitable for dense circuit layouts. The robust build quality from STMicroelectronics ensures product reliability and longevity.

Designed for transient voltage suppression to protect sensitive electronics. Single diode configuration with bi-directional voltage clamping. Minimum breakdown voltage of 28.5 V for precise triggering. Compact DO-201 through-hole package for easy PCB mounting.

High peak pulse power dissipation of 1.5 kW supports demanding transient events. Wide operating temperature range (-65°C to 175°C) for industrial environments. Low reverse leakage current of 1 µA minimizes standby losses.

High maximum peak pulse current rating of 187 A enhances protection capabilities. Suitable for automotive, industrial, and electronic circuit protection applications. Explore more STMicroelectronics TVS Diodes and related discrete semiconductors at EnvMart for high-reliability electronic component solutions.
