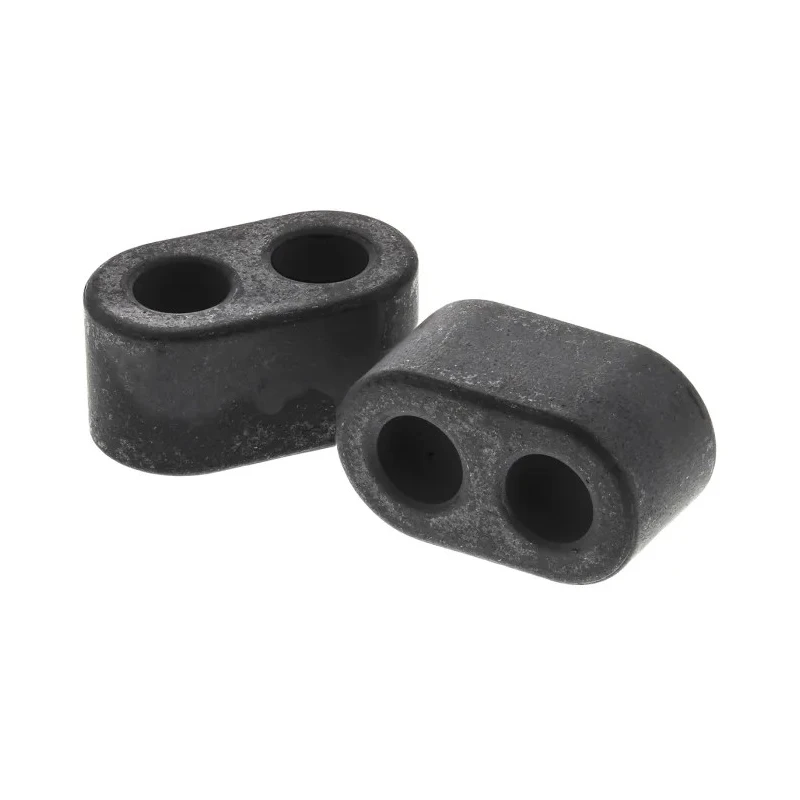

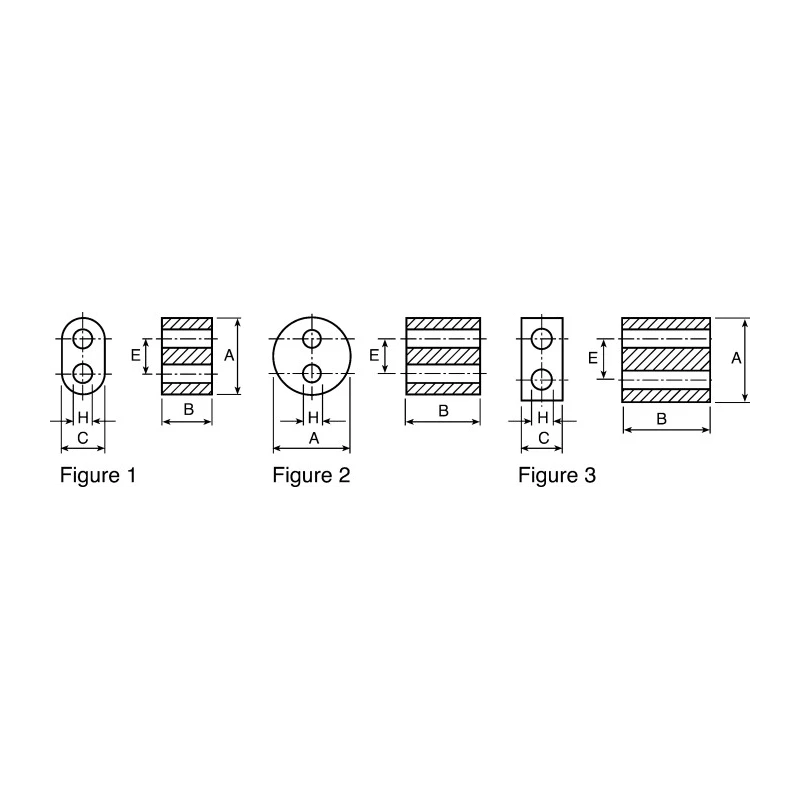

Fair-Rite Multi Aperture Ferrite Sleeve Diameter 3.8 mm, Apertures 2 x 13.3 mm & 7.5 mm for Suppression Components 2861001502

Free Delivery in India | Lowest Global Shipping Charges

Fair-Rite Multi Aperture Ferrite Sleeve Diameter 3.8 mm, Apertures 2 x 13.3 mm & 7.5 mm for Suppression Components 2861001502

Name: Fair-Rite Multi Aperture Ferrite Sleeve Diameter 3.8 mm, Apertures 2 x 13.3 mm & 7.5 mm for Suppression Components 2861001502
Brand: Fair-Rite
SKU: 189222
Price: 0.5 USD
Availability: InStock



Category Ferrite Sleeve Brand Fair-Rite Condition New

Specifications

Country of Origin	India
Brand	Fair-Rite
Material	61 Material
Aperture diameter	3.8mm
Sub Type	Multi Aperture Core
External Width	7.5mm
External Height	13.3mm
Standards/Approvals	RoHS
Impedance at 100 MHz	340Ω
Impedance at 25 MHz	195Ω
Number of Apertures	2
Multi aperture ferrite core,6.6mm LBrand	NEUTRAL
Fair-Rite, Diameter 3.8 mm Ferrite Sleeve, Apertures	2 13.3 mm 7.5 mm, For Suppression Components

Key Features

This ferrite sleeve includes two apertures with diameters of 13.3 mm and 7.5 mm respectively.
Constructed from 61 material, ensuring optimal magnetic properties and durability.
Provides impedance of 195Ω at 25 MHz and 340Ω at 100 MHz for effective EMI suppression.
Non-gapped and non-openable design for stable performance in balun transformers and other applications.
Applicable in broadband transformers used in communication and CATV circuits.
Also suitable for use in automotive air bag circuit suppression components.
RoHS compliant, meeting environmental safety standards.
External dimensions measure 13.3 mm in height and 7.5 mm in width, compatible with various assembly requirements.

Product Description

Fair-Rite 2861001502 multi aperture ferrite sleeve features a 3.8 mm diameter core designed specifically for suppression components used in electronic systems. Crafted from 61 magnetic material, this ferrite sleeve offers substantial impedance values (195Ω at 25 MHz and 340Ω at 100 MHz) which help in minimizing electromagnetic interference effectively.

This component is non-gapped and non-openable, providing reliable performance in high-frequency applications such as broadband transformers often utilized in communication technologies, CATV circuits, and automotive safety systems like air bag circuits.

The sleeve includes two apertures with dimensions measuring 13.3 mm height and 7.5 mm width, accommodating multiple signal pathways or wiring configurations. Manufactured to RoHS standards, it ensures environmental compliance and quality assurance.

This ferrite sleeve provides effective EMI suppression in multilayer circuit assemblies. Suitable for use in balun transformers facilitating balance to unbalance signal conversion. Provides high impedance at relevant frequencies for noise attenuation.

Designed for industrial, laboratory, telecommunications, and automotive electronics applications. Ensures compatibility with various electronic assembly standards due to its multi-aperture construction. RoHS compliance guarantees safe usage in environmentally conscious projects.

Its durable 61 material composition offers long-term operational stability. The product is tailored for use in broadband transformer applications in communications and automotive sectors. Explore EnvMart’s comprehensive range of electronic components including Ferrite Sleeves, EMI filters, and magnetic cores for diverse industrial and commercial uses.
