RS PRO Digital Bench Power Supply, 4-Output 0 V AC to 32 V, 212 W, 3 A Max 122-5035

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Digital Bench Power Supply, 4-Output 0 V AC to 32 V, 212 W, 3 A Max 122-5035

Name: RS PRO Digital Bench Power Supply, 4-Output 0 V AC to 32 V, 212 W, 3 A Max 122-5035
Brand: RS PRO
SKU: 189069



Category Bench Power Supply Brand RS PRO Condition New

Specifications

Country of Origin	China
Display	4.3 Inch LCD Display
Brand	RS PRO
Power	212W
Height	155mm
Model	122-5035
Depth	306mm
Width	210mm
Output type	Digital
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Plug Type	IEC 320
Number of outputs	4
Maximum Output Current	3A
Standards/Approvals	RoHS
Maximum Output Voltage	32V
Maximum Supply Voltage	230V ac
Digital/Analogue	Digital
Supported Number of Displays	1
Minimum Output Voltage	0V ac
Minimum Output Current	0A

Key Features

Four isolated output channels provide flexible power supply options.
Features a 4.3 inch LCD display for clear voltage and current readings.
High resolution and low noise with smart cooling for stable operation.
Supports tracking series and parallel operation up to 32 V / 6 A output.
Operates safely from 0°C to 40°C ambient temperature.
Includes IEC 320 type plug for standardized connection.
Built-in digital panel controls allow precise setting and readback of voltage and current.
Key lock function protects device under test from unauthorized parameter changes.

Product Description

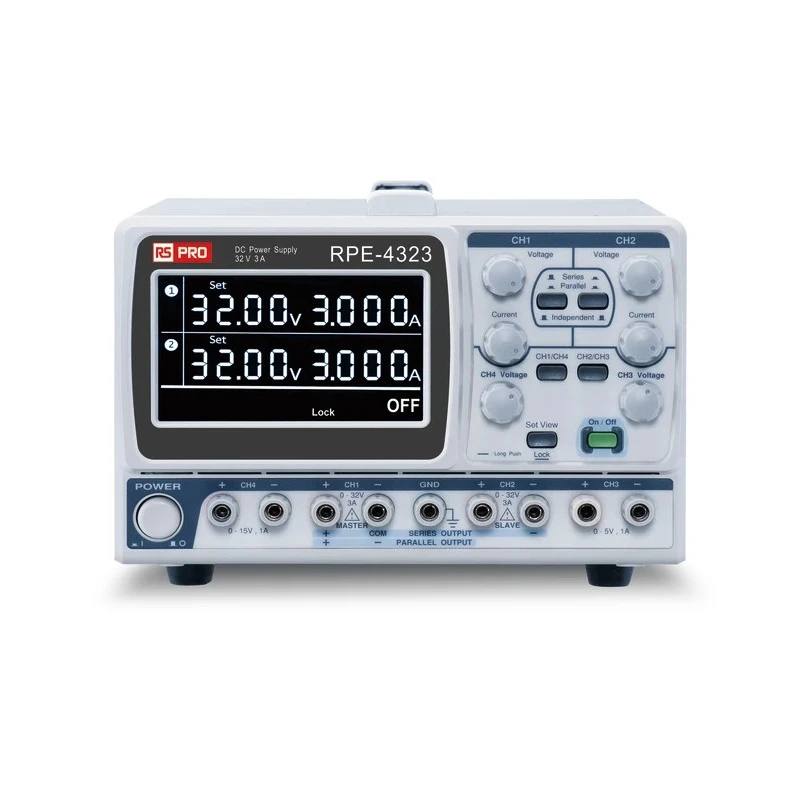

RS PRO 122-5035 Digital Bench Power Supply is a multiple output linear DC power supply designed for industrial, laboratory, and electronic testing environments. It provides four independent isolated output channels delivering voltages from 0 V AC up to 32 V and a maximum output current of 3 A, with a total power rating of 212 W. This model incorporates a digital control panel with a 4.3 inch LCD display, enhancing user interface and precision in setting voltage and current.

Manufactured to RoHS standards and built for reliability, the power supply features low noise performance achieved through smart cooling fan technology, ensuring efficient operation even under continuous use. The unit allows for tracking series and parallel configurations, enabling output adjustment up to 32 V and 6 A for broader applications.

Its compact size, with dimensions 210 mm width, 306 mm depth, and 155 mm height, fits easily on benchtops while delivering robust performance. The operating temperature range from 0°C to +40°C supports use in various climates and industrial settings. The power supply uses a standard IEC 320 plug for power input at 230 V AC.

Typical applications include communication equipment testing, medical device development, signal processing, and low noise amplifier power sources. The key lock function ensures that voltage and current parameters remain stable during critical tests by preventing accidental changes.

Four independent isolated outputs for flexible testing scenarios. High resolution digital display 100 mV / 10 mA for precise control. Compact 4.3 inch LCD display panel with simple interface. Low electromagnetic emissions and noise from smart cooling fan.

Supports series and parallel operations up to 32 V / 6 A outputs. Wide operating temperature range from 0°C to 40°C. Standard IEC 320 plug for 230 V AC supply voltage. Key lock function to secure voltage and current settings.

This RS PRO Bench Power Supply is ideal for industrial, laboratory, manufacturing, and HVAC applications requiring precise and reliable power delivery. Explore more RS PRO products for superior testing and measurement solutions on EnvMart.
