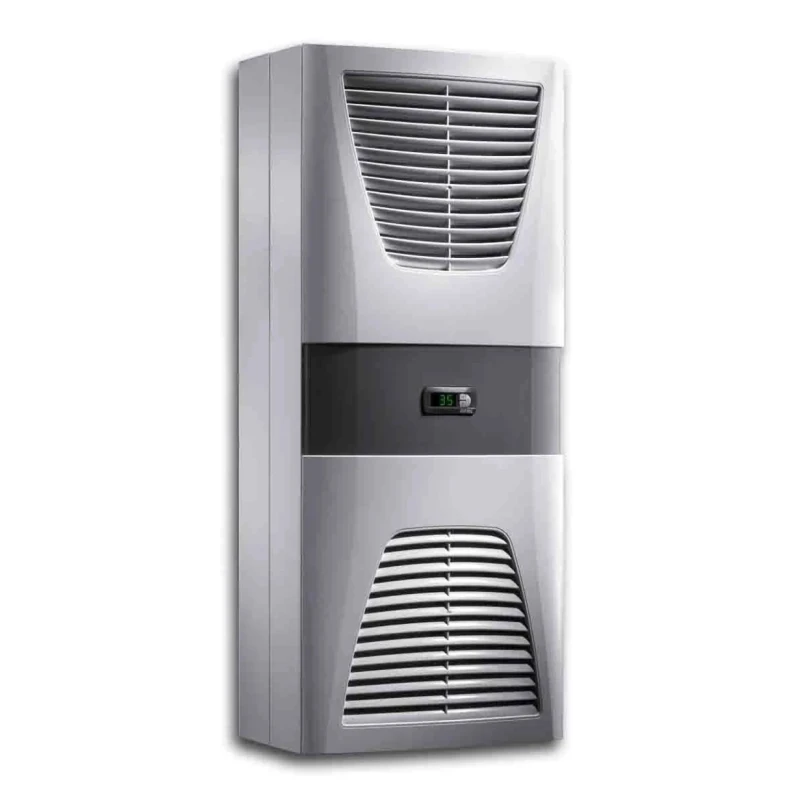

Rittal TopTherm Blue e Series Enclosure Cooling Unit 1.6kW 460V AC 540m³/h 950mmx400mmx260mm 3305540
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 1.61kW |
| Frequency | 60Hz |
| Brand | Rittal |
| Material | Sheet Steel |
| Height | 950mm |
| Air Flow | 540m³/h |
| Model | 3305540 |
| Connection Type | Plug-In Terminal Strip |
| Depth | 260mm |
| IP Rating | IP34, IP54 |
| Gross Weight | 42kg |
| Width | 400mm |
| Cooling Capacity | 1.25kW |
| Mount Type | Wall |
| Certification | EAC |
| Series | TopTherm Blue e |
| Input power | 900W |
| Cooler Type | Air Conditioner |
| Refrigerant Type | R134A |
| Nominal Current | 2.5A |
| Maximum Temperature Setting | 55°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 460V ac |
| Maximum Cooling Power | 1.6kW |
| Min Temperature Setting | 20°C |
| Type of installation | Wall-Mounted |
| Operating temperature range (environment) | +10 °C...+55 °C |
| Setpoint temperature setting range | +20 °C...+55 °C |
| Rittal Enclosure Cooling Unit, 1600W, 400VBrand | Rittal |
Key Features
- The unit offers a maximum cooling capacity of 1.6kW for effective heat dissipation.
- Operates on 460V AC power supply with a frequency of 60Hz.
- Constructed with durable sheet steel material for longevity and impact resistance.
- Features a wall-mount design suitable for enclosures requiring efficient temperature control.
- Equipped with a nano-coated condenser to prevent moisture build-up and maintain efficiency.
- Has an airflow rate of 540 m³/h internally and 950 m³/h externally to ensure proper ventilation.
- Temperature settings adjustable from 20°C to 55°C for versatile operation.
- Integrated electrical condensate evaporation system facilitates maintenance and uptime.
Product Description
Rittal 3305540 TopTherm Blue e Series Enclosure Cooling Unit is a high-performance air conditioning unit designed for wall mounting on or in doors and side panels of electrical enclosures. Delivering a maximum cooling power of 1.6kW and airflow of 540 m³/h, this unit is engineered to prevent overheating in sensitive industrial environments.
The unit features a durable sheet steel construction and a nano-coated condenser that prevents moisture buildup, ensuring continuous, reliable cooling performance. Its internal circuit airflow of 540 m³/h combined with an external circuit of 950 m³/h provides efficient heat dissipation while maintaining energy efficiency through an intelligent operating system that regulates fan operation automatically.
Designed for demanding applications, the cooling unit operates within an ambient temperature range of +10°C to +55°C, with adjustable output temperature settings from +20°C to +55°C using the integrated e-Comfort controller preset at +35°C. This flexibility allows for precise thermal management tailored to the needs of server rooms, office buildings, assembly plants, and medical facilities.
The cooling system includes an integrated electrical condensate evaporation function facilitating maintenance without manual intervention. It holds an IP34 and IP54 rating for protection against dust ingress and water splashing, suitable for harsh operational conditions.
Standards compliances include EN 14511 and IEC 60529, ensuring certified performance and reliability. The enclosure cooling unit also uses refrigerant type R134A and complies with RoHS directives, further emphasizing its environmental and operational standards.
The unit offers a maximum cooling capacity of 1.6kW for effective heat dissipation. Operates on 460V AC power supply with a frequency of 60Hz. Features durable sheet steel construction for impact and corrosion resistance.
Wall-mount installation with plug-in terminal strip for hassle-free setup. Nano-coated condenser prevents moisture buildup and simplifies cleaning. Adjustable temperature range from 20°C to 55°C with integrated e-Comfort controller.
Incorporates electrical condensate evaporation system to reduce maintenance. IP34 and IP54 ratings provide protection against dust and water ingress. Suitable for industrial, commercial, and medical applications requiring enclosure cooling.
Explore more advanced electrical enclosure cooling solutions at EnvMart to maintain optimal operating conditions across your industrial and commercial applications.
Explore more products in our Cooling Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum cooling capacity is 1.6kW, providing effective heat dissipation for enclosures.
It has an internal airflow rate of 540 m³/h and an external airflow rate of 950 m³/h, ensuring proper ventilation.
The cooling unit measures 950mm in height, 400mm in width, and 260mm in depth.
It operates within an ambient temperature range of +10°C to +55°C.
This model is designed for wall-mounted installation, making it suitable for various enclosures.
It operates on a 460V AC power supply with a frequency of 60Hz.
It is constructed from durable sheet steel, providing impact and corrosion resistance.
Yes, it holds an EAC certification and complies with RoHS directives, ensuring environmental standards.
It uses R134A as the refrigerant type, which is common in cooling applications.
The gross weight of this unit is 42kg.
It includes an integrated electrical condensate evaporation system, which facilitates maintenance without manual intervention.
