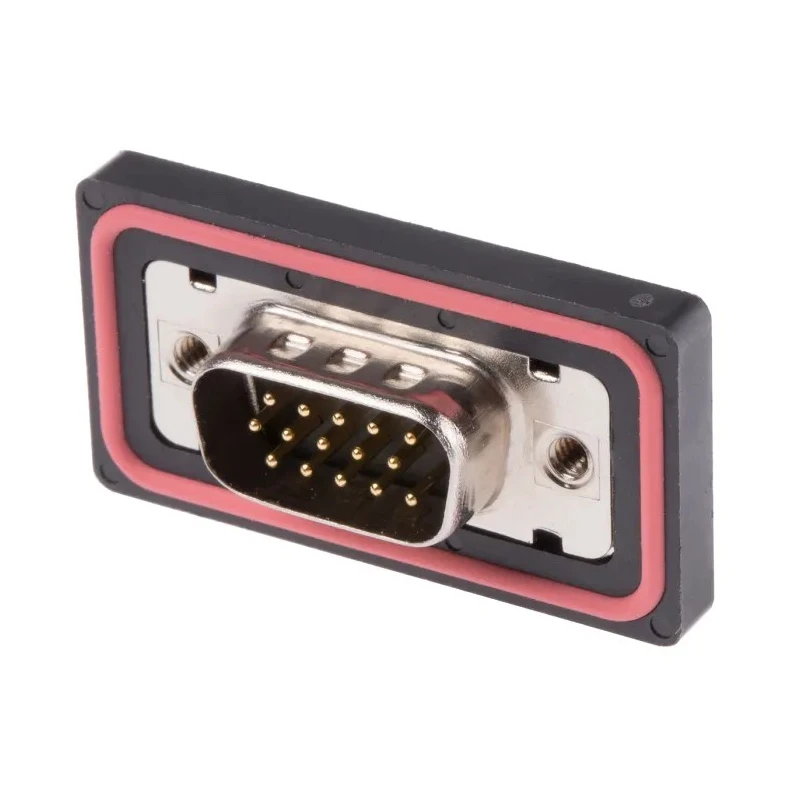

RS PRO 15 Way Straight Panel Mount D-Sub Connector Male 1kV 5A Polybutylene Terephthalate Housing 122-3038

RS PRO 122-3038 is a 15 Way Straight Panel Mount D-Sub Connector Male designed for demanding industrial, commercial, and computer interfacing applications. It features a robust Polybutylene Terephthalate (PBT) housing that provides excellent mechanical durability and insulation properties. The connector shell is constructed from professional quality SPCC grade steel with a nickel plating for corrosion resistance and strength.

This connector is IP68 rated, making it fully waterproof and dustproof, ideal for environments where ingress protection is critical. The distinctive red silicone O-Rings form a tight seal against elements, ensuring longevity of the connection and reliability in harsh conditions.

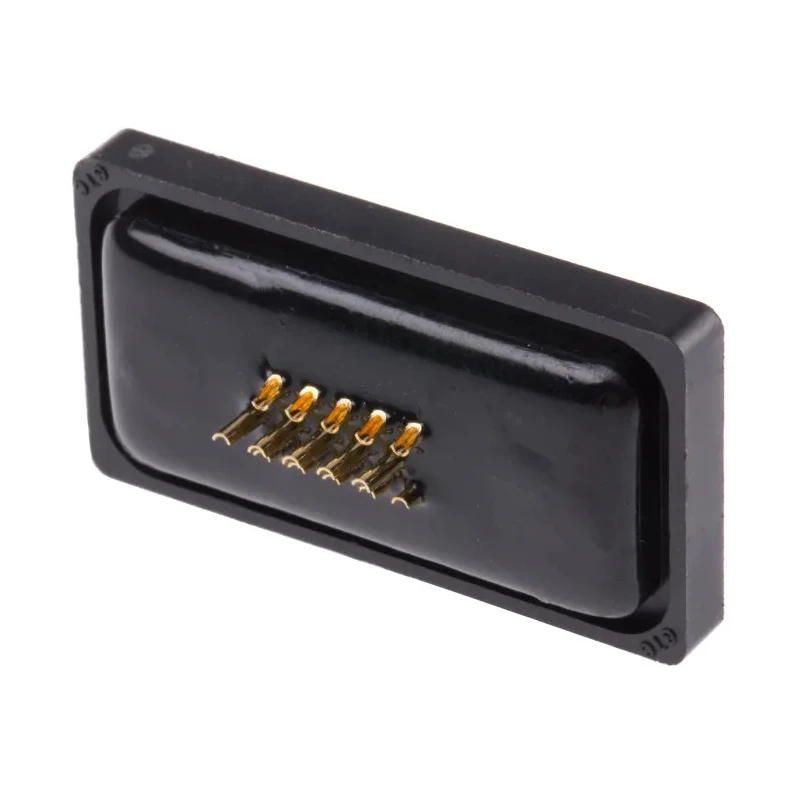

The contacts are made from high-grade copper alloy with a gold flash plating, delivering excellent electrical conductivity and corrosion resistance. Designed for a panel thickness range of 0.8mm to 2.0mm, the connector employs solder bucket termination types for easy and secure cable connection. It is engineered to operate within a wide temperature range from -40°C to 85°C, ensuring compatibility with various industrial environments.

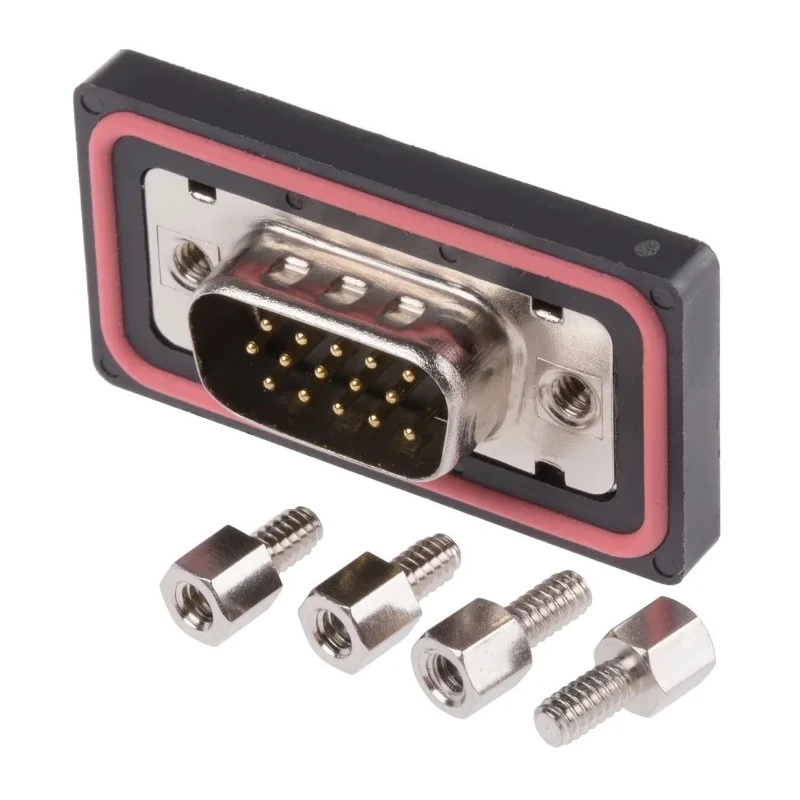

This 15-pin male D-sub connector operates at a voltage rating of 1kV and a current capacity of 5A, suitable for reliable signal and power transmission. The straight orientation and panel mount type simplify integration into existing systems, while 4-40 UNC machine screws guarantee secure attachment.

Connector features a sturdy Polybutylene Terephthalate housing for excellent durability. Gold-plated copper alloy contacts ensure reliable conductivity and resistance to corrosion. Engineered with solder termination for secure electrical connection.

Supports panel mount installation with a straight orientation and 0.8mm to 2.0mm panel thickness. Operates over a wide temperature range from -40°C to 85°C for rugged environmental conditions. IP68 waterproof rating with red silicone O-ring seal provides dust and water ingress protection.

Shell made of nickel-plated SPCC steel for enhanced mechanical strength. Standard 4-40 UNC machine screws ensure firm mounting and stability. Compatible with applications requiring high-density 15-contact male D-Sub Connectors.

This product is well-suited for industrial machinery, commercial equipment, and computing hardware requiring robust, sealed, and high-performance connectivity solutions. It ensures stable signal integrity and protection in challenging conditions.
