Wurth Elektronik WR-FFC Series Ribbon Cable 30 Conductors 1 mm Pitch 100 mm Length 686630100001

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-FFC Series Ribbon Cable 30 Conductors 1 mm Pitch 100 mm Length 686630100001

Name: Wurth Elektronik WR-FFC Series Ribbon Cable 30 Conductors 1 mm Pitch 100 mm Length 686630100001
Brand: Wurth Elektronik
SKU: 188374
Price: 3.54 USD
Availability: InStock



Category Ribbon Cable Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Cable Length	100mm
Series	WR-FFC
Conductor Material	Copper
Jacket Material	Polyphenylene Ether
Pitch	1mm
Standards/Approvals	RoHS Compliant
Jacket Colour	White
Number of Conductors	30

Key Features

High flexibility with flexing test exceeding 20 cycles at 180 degrees.
Blue PET support tape at both ends enabling easy ZIF and LIF connections.
Lightweight and low profile design to save space in compact applications.
Constructed from copper conductors with polyphenylene ether white jacket material.
RoHS compliant ensuring environmental safety and regulatory adherence.
Ideal for electrical connections between PCBs and display units in electronics.
Suitable for use in LCD appliances, plasma display panels, printers, scanners, DVD players, and notebook PCs.
Available in standard lengths from 50 mm to 200 mm with a variety of circuits.

Product Description

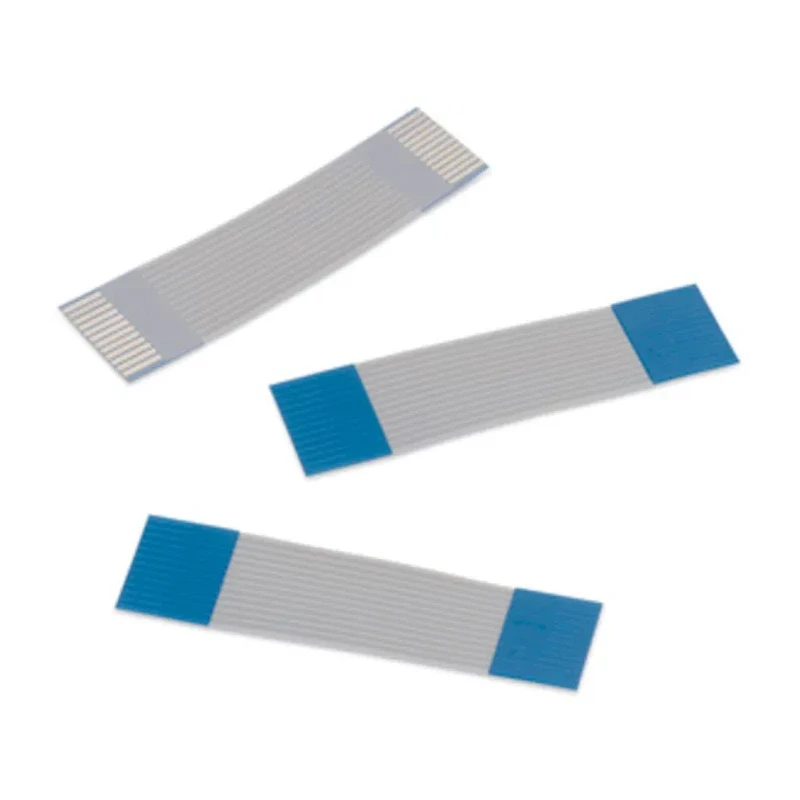

Wurth Elektronik 686630100001 WR-FFC Series Ribbon Cable is a Type 1 flat flexible cable with a 1.00 mm pitch, featuring 30 copper conductors and a 100 mm length. It is designed for secure, lightweight, and high-density board-to-board connections, suitable for use in industrial, electronic manufacturing, and commercial applications.

This cable exhibits excellent flexibility, having passed flexing tests beyond 20 cycles at 180 degrees, which allows installation in complex, confined spaces requiring durable and flexible interconnects. The cable’s flat and low-profile design helps reduce space and weight, improving overall device integration.

Both ends of the cable are equipped with blue PET support tape to facilitate ZIF (Zero Insertion Force) or LIF (Low Insertion Force) connections when mated with compatible FPC connectors, enabling simple and reliable assembly processes.

The cable jacket is made from polyphenylene ether and is colored white for identification. This product complies with the RoHS directive, ensuring it meets environmental standards for hazardous substances.

These Ribbon Cables are widely used to electrically connect printed circuit boards to display panels and other electronic modules. Common applications include LCD devices, plasma display panels, printers, scanners, DVD players, and notebook computers.

Standard lengths available range from 50 mm up to 200 mm, with various circuit options allowing tailored configurations to meet specific design requirements, maximizing compatibility and space saving in electronic assemblies.

Highly flexible with durability over multiple flex cycles. Blue PET tape for easy connector interface. Lightweight and space-saving profile. Copper conductor for excellent conductivity. Polyphenylene ether white jacket for protection and identification.

RoHS compliant, environmentally safe. Ideal for LCD, plasma displays, printers, scanners, DVD players, and notebooks. Multiple lengths and circuits available for versatile use. Explore more related cables and connectors on EnvMart for your precise electronic design and manufacturing needs.
