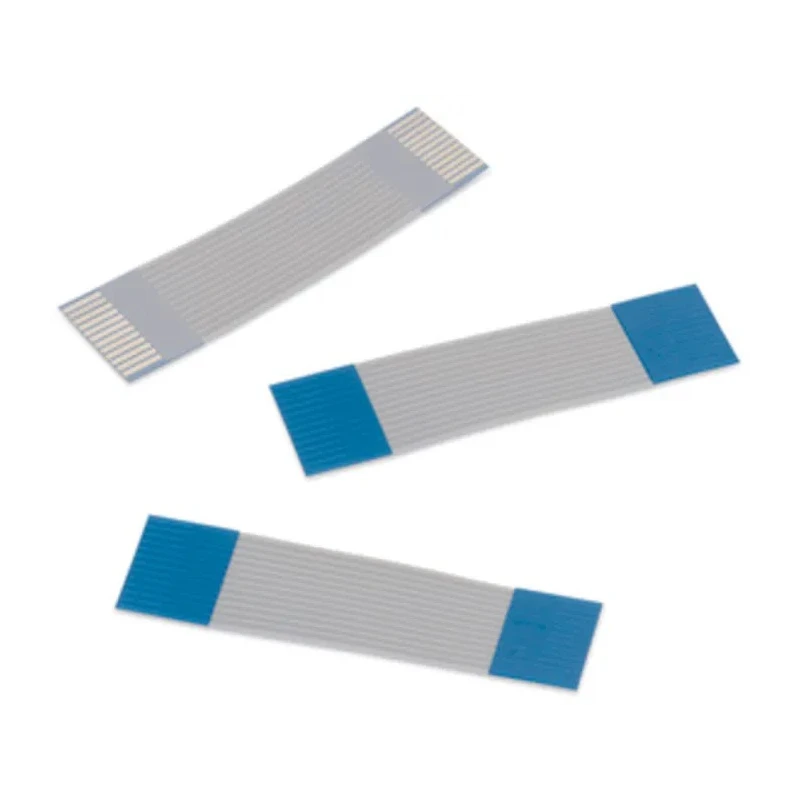

Wurth Elektronik WR-FFC Series Ribbon Cable 12 Conductors 1 mm Pitch 152 mm Length 686612152001

Wurth Elektronik 686612152001 WR-FFC Series Ribbon Cable is a Type 1 Flat Flexible Cable (FFC) with 12 copper conductors spaced at a 1 mm pitch and a cable length of 152 mm. This ribbon cable is engineered for achieving secure and space-saving board-to-board connections in complex and compact designs.

The cable jacket is made of durable white polyphenylene ether, providing electrical insulation and mechanical protection. Its high flexibility accommodates bending and flexing applications, withstanding more than 20 flex cycles at a 180° angle, making it suitable for dynamic environments.

At both ends, a blue PET support tape facilitates the assembly process with Zero Insertion Force (ZIF) or Low Insertion Force (LIF) connectors, enhancing connection reliability. This design element allows simple and accurate mating to board mount flexible printed circuit (FPC) connectors.

These cables support a range of applications including LCD appliances, plasma display panels, printers, scanners, DVD players, and notebook computers, where compactness and reliable electrical connections are paramount. The low profile, lightweight design enables cost and space savings in high-density electronic assemblies.

Wurth Elektronik’s WR-FFC cables comply with RoHS standards, ensuring environmentally safe manufacturing practices. The cable length of 152 mm allows use in applications requiring a precise fit between circuit boards.

The cable features a 1.0 mm pitch suitable for compact electronic assemblies. Constructed with copper conductors enclosed in white polyphenylene ether jacket for durability. Designed for high flexibility with a flexing test exceeding 20 cycles at 180° bend.

Blue PET support tape at cable ends ensures ease of ZIF and LIF connector mating. Ideal for use in LCD appliances, plasma displays, printers, scanners, DVD players, and notebook PCs. RoHS compliant, ensuring adherence to environmental and safety standards.

Cable length is precisely 152 mm to fit specific board spacing requirements. Lightweight, space-saving design facilitates dense board layouts and efficient assembly.

These cables are an essential component for industrial electronics, laboratory instrumentation, consumer electronics manufacturing, and other electrical applications requiring reliable ribbon cable connectivity. Explore the full range of Wurth Elektronik Ribbon Cables on EnvMart for your next project.
