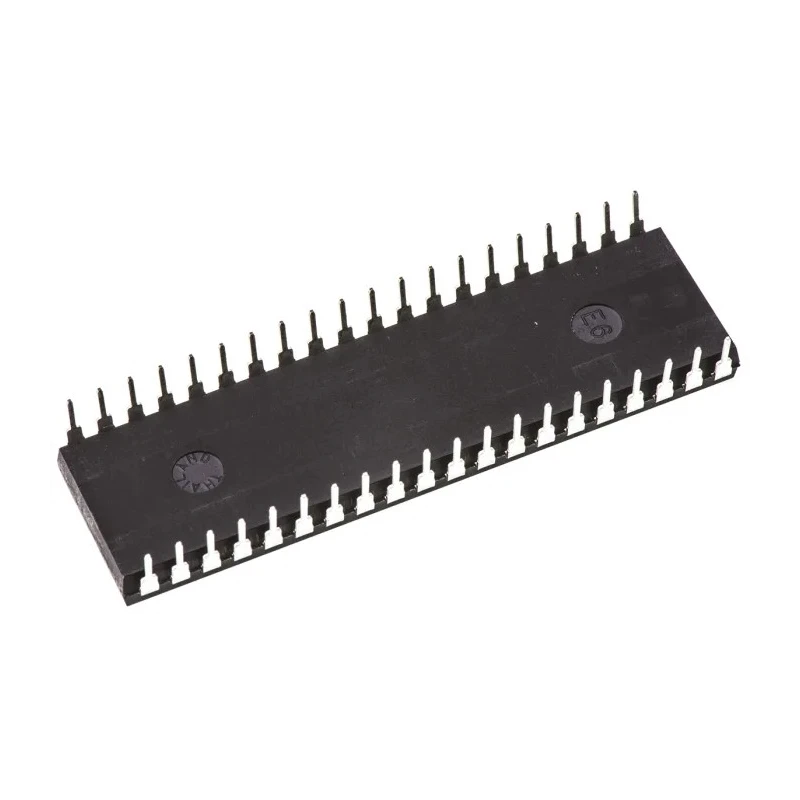

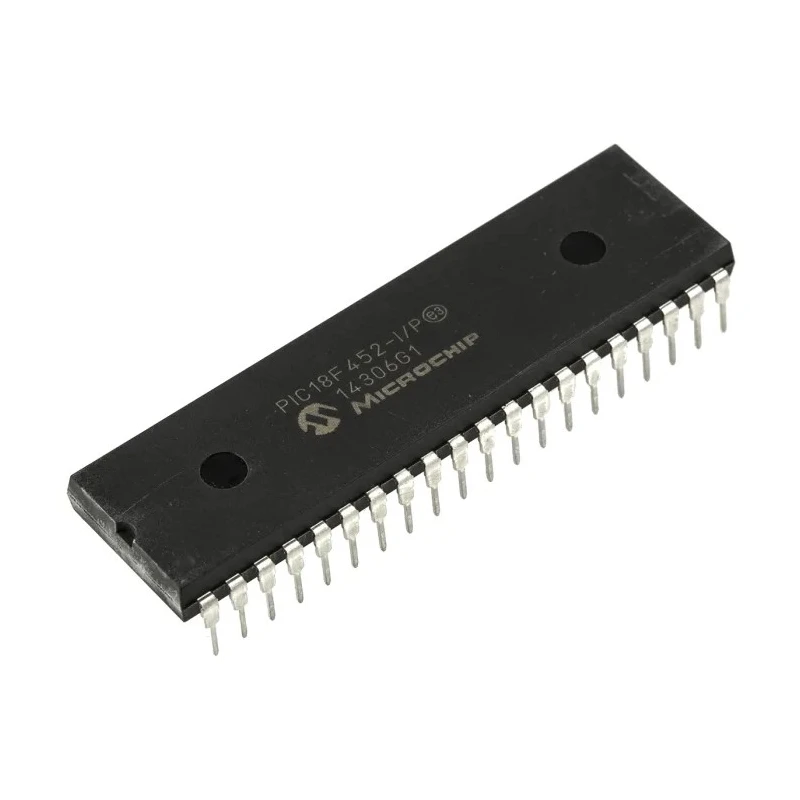

Microchip 8 bit PIC PIC18F Microcontroller 40 MHz 32kB FLASH 40-Pin PDIP PIC18F452-I/P

Microchip PIC18F452-I/P is an advanced 8 bit PIC microcontroller designed for embedded system development and control applications. This device features a 40 MHz maximum clock frequency and 32kB FLASH program memory, complemented by 1.54kB of RAM, meeting the demands of resource-conscious applications.

Encased in a 40-pin PDIP package with through-hole mount type, it is ideal for prototyping and PCB implementations requiring robust physical connections. The microcontroller operates on a RISC instruction set architecture with an 8-bit data bus width, enhancing execution efficiency for control tasks. It includes four timers and eight 10-bit ADC inputs, enabling precise timing and analog signal conversion necessary for sensor interfacing and control loops.

Engineered for industrial-grade reliability, this microcontroller functions across a broad temperature range of -40°C to 85°C and supports an operating voltage range of 4.2 to 5.5 V. Power dissipation is maintained at a maximum of 1 watt, allowing for stable operation within thermal constraints.

Key technical attributes also include RoHS compliance, ensuring environmental safety in manufacturing and use. The compact size, measuring 52.45 mm in length, 14.22 mm in width, and 4.06 mm in height, facilitates incorporation into various electronic assemblies. The program memory is of FLASH type, which allows in-circuit programming and updates, thus enhancing development flexibility.

This microcontroller finds extensive applications across industrial automation, instrumentation, embedded control systems, and educational development platforms. Its robust operating specifications make it suitable for manufacturing, HVAC control, automotive electronics, and consumer device development.

Equipped with 40-pin PDIP package for hardware convenience. Enables use of 8-bit data bus with RISC architecture efficiency. Provides multiple timers and ADC channels for enhanced control. Designed for wide voltage and temperature operational ranges.

Complies with RoHS standards for environmental sustainability. FLASH memory supports in-circuit programming. Compact physical dimensions for diverse mounting options. Explore more Microcontrollers and embedded solutions in the Microchip category on EnvMart for your industrial and development needs.
