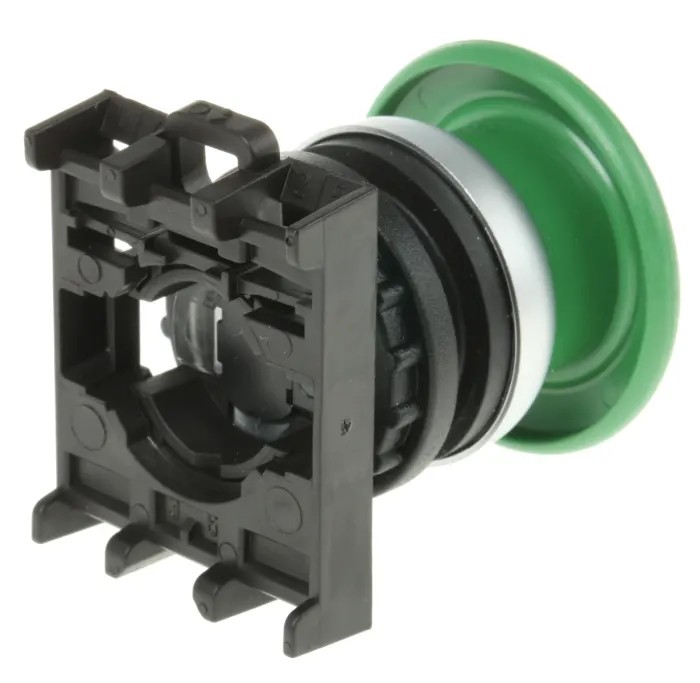

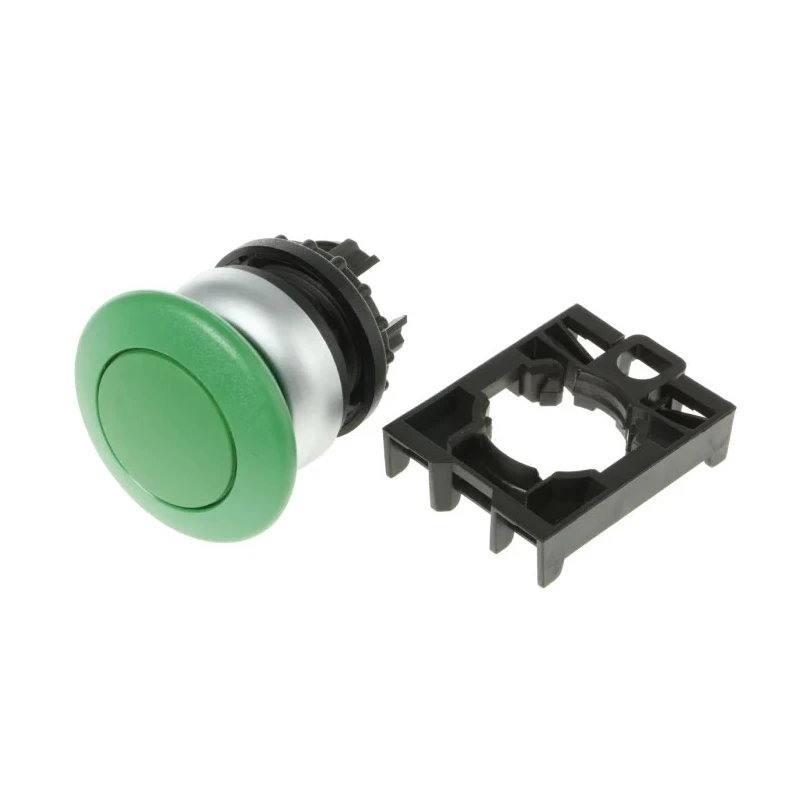

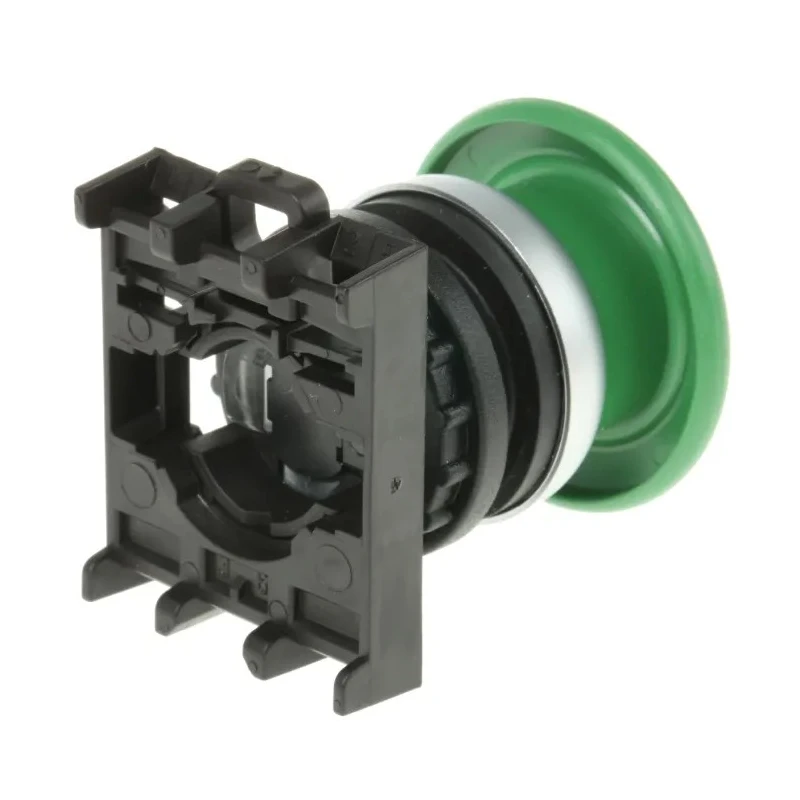

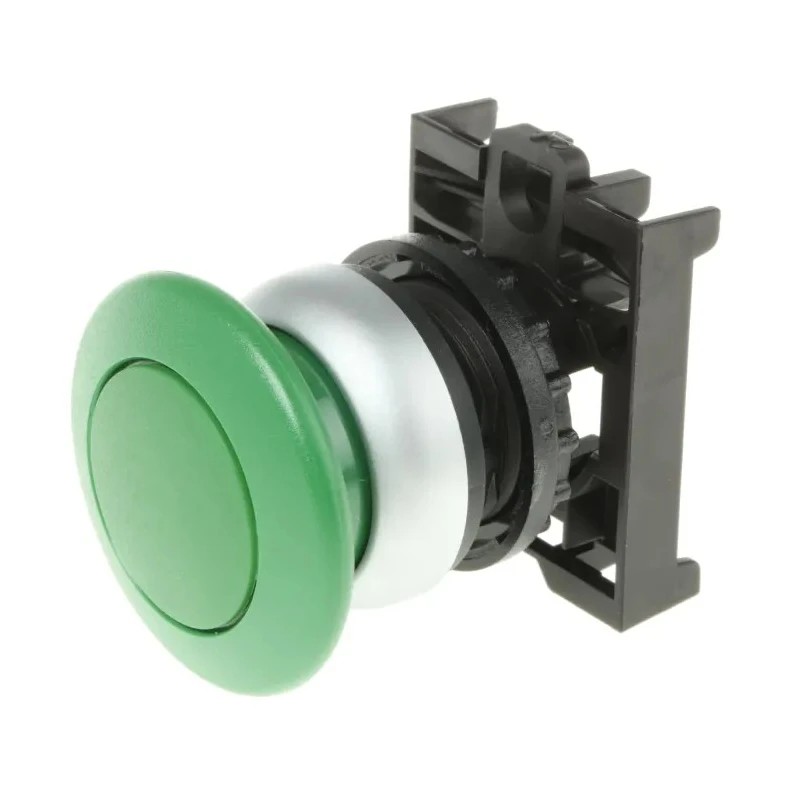

Eaton RMQ Titan M22 Series Green Momentary Push Button Head 22 mm Cutout IP69K 78639354 M22-DP-G+M22-A

Eaton 78639354 M22-DP-G+M22-A RMQ Titan M22 Series Green Momentary Push Button Head is engineered for industrial and automation control applications requiring reliable manual equipment operation with a 22 mm cutout and IP69K ingress protection.

The push button head features a large 36.5 mm diameter mushroom-shaped cap made of impact- and abrasion-resistant plastic, providing comfortable and durable operation in challenging environments. Its green color allows for intuitive color coding, typically used to start machines or indicate safe operational status.

This momentary push button operates only while pressed, making it ideal for control functions such as conveyor movement or other manual actuation tasks. It has a mechanical lifespan of up to 5,000,000 operations, ensuring long-term reliability.

Designed to withstand harsh industrial conditions, the device is rated IP69K, signifying protection against dust ingress and powerful high-temperature water jets. It complies with various industry standards such as CE, IEC 60068-2 series, UL 508, and IEC/EN 60947-5, ensuring safety and quality.

Despite its robustness, this push button is not suitable for emergency stop applications as it does not provide a maintained or latching function; it features a spring return. The product includes the body and fixing collar for easy assembly and installation.

Durable plastic mushroom push button head with 36.5mm diameter. Momentary actuation with spring return for manual control. IP69K rated for dust tightness and water jet protection. Complies with CE, IEC, UL, and CSA standards.

Suitable temperature range from -25°C to 70°C. Includes fixing collar and unmarked button for customization. Built for industrial sectors including chemical and pharmaceutical production.

This series, Eaton RMQ Titan M22, provides a broad range of ergonomic control devices designed to enhance machine safety and operational efficiency within industrial automation systems. Its high ingress protection and compliance with stringent standards make it an ideal choice for demanding environments.
