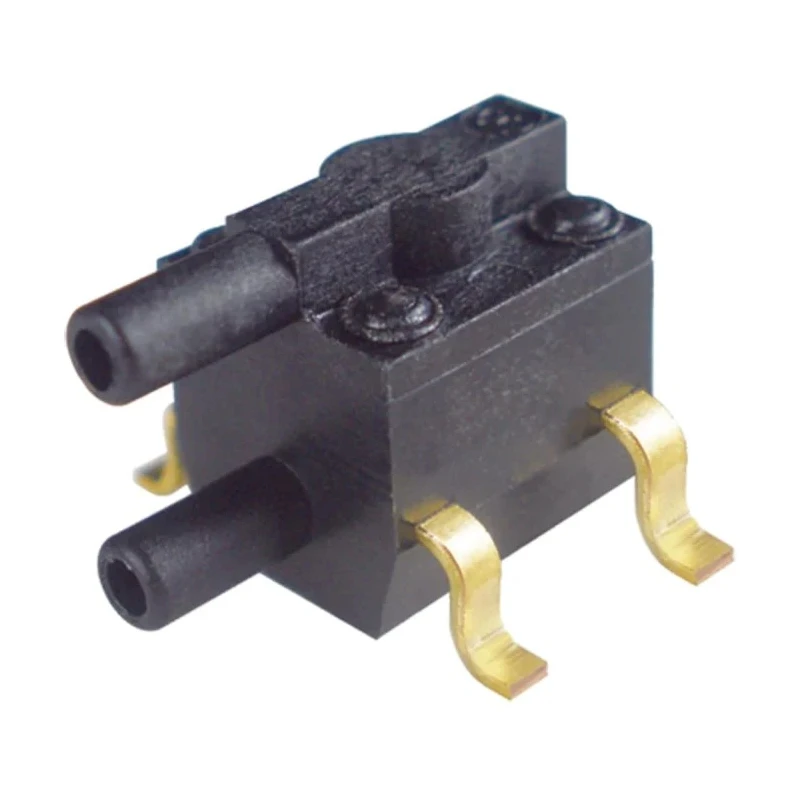

Honeywell Technologies Low Pressure Differential Sensor SMT 4 Pin, 2.5V-12V, 0-5 psi, ±0.2% Accuracy 24PC05SMT
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.2 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 5 psi |
| Height | 7.7mm |
| Length | 7.1mm |
| Model | 24PC05SMT |
| Sensor Type | Differential Pressure Sensor |
| Width | 6.73mm |
| Mount Type | Surface |
| Series | 24PC |
| Maximum Operating Temperature | 85°C |
| Port Type | Barb |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | ISO 9001, RoHS |
| Pin Count | 4 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.5V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 20psi |
| 24PC Series | Uncompensated/Unamplified |
| 26PC Series | Compensated/Unamplified |
Key Features
- Compact surface mount technology (SMT) package minimizes PCB footprint.
- Differential pressure sensor suitable for wet/wet applications.
- Operating temperature range from -40°C to 85°C ensures versatile industrial use.
- Max overload pressure rating of 20 psi provides operating safety margin.
- Pin count of 4 enables easy PCB integration.
- Uncompensated and unamplified sensor from 24PC series ensures consistent performance.
- Robust design compatible with fluids that are compatible with PPA plastics and media seals.
- ISO 9001 certified manufacturing and RoHS compliant for reliability and environmental standards.
Product Description
Honeywell 24PC05SMT is a precise and reliable low pressure differential sensor featuring a compact SMT surface mount package and 4 pins, designed for various industrial and electronic applications requiring differential pressure measurement with high accuracy. It supports a supply voltage range of 2.5V to 12V and measures pressures from 0 to 5 psi with an accuracy of ±0.2%.
This sensor series utilizes a specialized piezo-resistive micro-machined sensing element for dependable wet/wet differential sensing. Its compact SMT configuration helps reduce PCB footprint and cost, allowing integration alongside other common SMT components to improve manufacturing efficiency.
Operating temperature range is robust from -40°C to 85°C, making it suitable for demanding industrial environments. The 24PC05SMT can handle maximum overload pressure up to 20 psi. The device is uncompensated and unamplified, making it suitable for applications requiring calibrated external amplification or compensation.
The sensor’s body is made from polyphthalamide (PPA) plastics and media seals compatible with a wide variety of wet and dry media. Its design includes a barb port for secure and reliable pressure connection. Honeywell manufactures these sensors in compliance with ISO 9001 management systems and meets RoHS environmental directives.
Compact SMT mounting package reduces board space usage and cost. Ideal for wet/wet differential sensing in industrial, electronic, and commercial applications. Wide operating temperature range supports harsh environments.
ISO 9001 certified quality and RoHS compliant construction. Uncompensated and unamplified for flexibility in custom electronic circuits. Surface mount 4-pin configuration for easy PCB assembly. Robust PPA plastic construction and compatible seals for media versatility.
Barb port type ensures secure pressure connection. Supports supply voltages from 2.5V to 12V for various system requirements. Accurate pressure measurement with ±0.2% nominal accuracy at rated pressure.
This pressure sensor suits applications in instrumentation, HVAC systems, industrial controls, medical devices, and automotive systems where low differential pressure measurement and compact PCB integration are critical.
Explore other sensors and components in the Electronics & Electricals category at EnvMart to complement your designs and industrial projects.
Explore more products in our Pressure Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has an accuracy of ±0.2% at rated pressure.
It measures pressures from 0 to 5 psi.
The sensor supports a supply voltage range of 2.5V to 12V.
The maximum overload pressure rating is 20 psi.
The sensor has a height of 7.7 mm, length of 7.1 mm, and width of 6.73 mm.
It uses a surface mount technology (SMT) package for easy PCB integration.
The operating temperature range is from -40°C to 85°C.
The sensor's body is made from polyphthalamide (PPA) plastics, compatible with various fluids.
It features a barb port type for secure pressure connection.
It is ISO 9001 certified and RoHS compliant.
This sensor is uncompensated and unamplified, allowing for external calibration or amplification.
It is suitable for instrumentation, HVAC systems, industrial controls, medical devices, and automotive systems requiring low differential pressure measurement.
