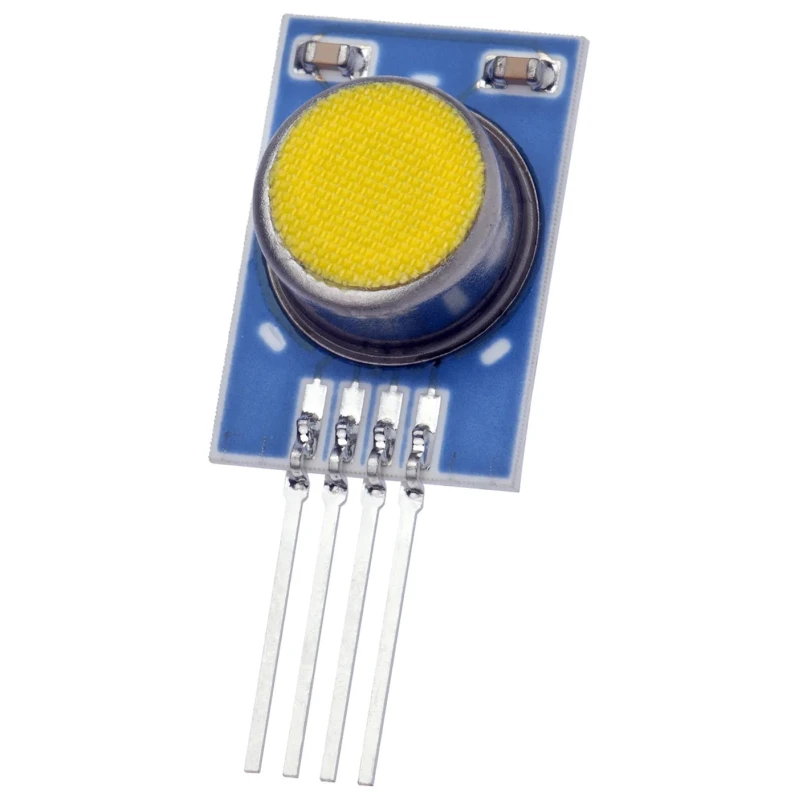

IST INNOVATIVE SENSOR TECHNOLOGY Digital Output Temperature & Humidity Sensor, Through Hole Mount, Serial-I2C, ±1.8 % HYT221
Specifications
| Country of Origin | Switzerland |
|---|---|
| Accuracy | ±1.8 %, 0.2 k |
| Brand | IST INNOVATIVE SENSOR TECHNOLOGY |
| Height | 15.3mm |
| Length | 10.2mm |
| Model | HYT221 |
| RH Range | 0 to 100 % |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Output type | Digital |
| Maximum Operating Temperature | 125°C |
| Sub Type | Temperature & Humidity Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Pin Count | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Provides digital output for both temperature and humidity measurements.
- Compact and robust through-hole mount design suitable for PCB integration.
- Operating temperature range from -40°C to 125°C ensures versatility.
- Supports supply voltage range of 2.7V to 5.5V for flexible power requirements.
- Measures relative humidity from 0 to 100 % with low drift and high stability.
- Features 4 pins and compact dimensions of 10.2mm length, 5.3mm width, and 15.3mm height.
- Fully calibrated and compensated sensor module for immediate deployment.
- Low power consumption suitable for battery-operated and embedded systems.
Product Description
IST INNOVATIVE SENSOR TECHNOLOGY HYT221 Digital Output Temperature & Humidity Sensor delivers accurate and stable measurements for both humidity and temperature within a compact through-hole mount package. It features a Serial-I2C interface enabling easy integration into various electronic systems.
This sensor operates reliably across a wide temperature range from -40°C to 125°C and operates with supply voltages from 2.7V to 5.5V. It measures relative humidity from 0 to 100 % with an accuracy of ±1.8 % and low drift, making it well suited for precise environmental monitoring tasks.
The HYT221 is designed for diverse industrial applications including process control, medical instrumentation, HVAC systems, and test and measurement equipment. Its chemical resistant and condensed water proof sensing area ensures durability in harsh environments. The low power consumption and fully calibrated output signal significantly simplify design and deployment.
The sensor's dimensions are 10.2mm length, 5.3mm width, and 15.3mm height, featuring a 4-pin through-hole mount for straightforward PCB assembly and connectivity. Provides digital output for temperature and humidity measurements for ease of interface integration.
Compact, robust through-hole mount package suitable for various electronic designs. Wide operating temperature range from -40°C to 125°C supports numerous environments. Low power consumption enhances suitability for portable and embedded applications.
Fully calibrated and compensated to ensure accuracy and reliability immediately out of the box. Chemical resistance and condensed water proof sensing area improve sensor lifespan in industrial conditions. Interfaces via Serial-I2C for seamless integration in modern digital systems.
Ideal for applications in process control, HVAC, medical, and test and measurement industries. Compact size and 4-pin mounting facilitate easy PCB integration and assembly. Ensures long-term stability and low drift for reliable environmental monitoring.
Explore EnvMart's sensor category for a wide range of IST INNOVATIVE SENSOR TECHNOLOGY components and advanced temperature and humidity sensors designed for industrial and scientific applications.
Explore more products in our Temperature & Humidity Sensor category.
