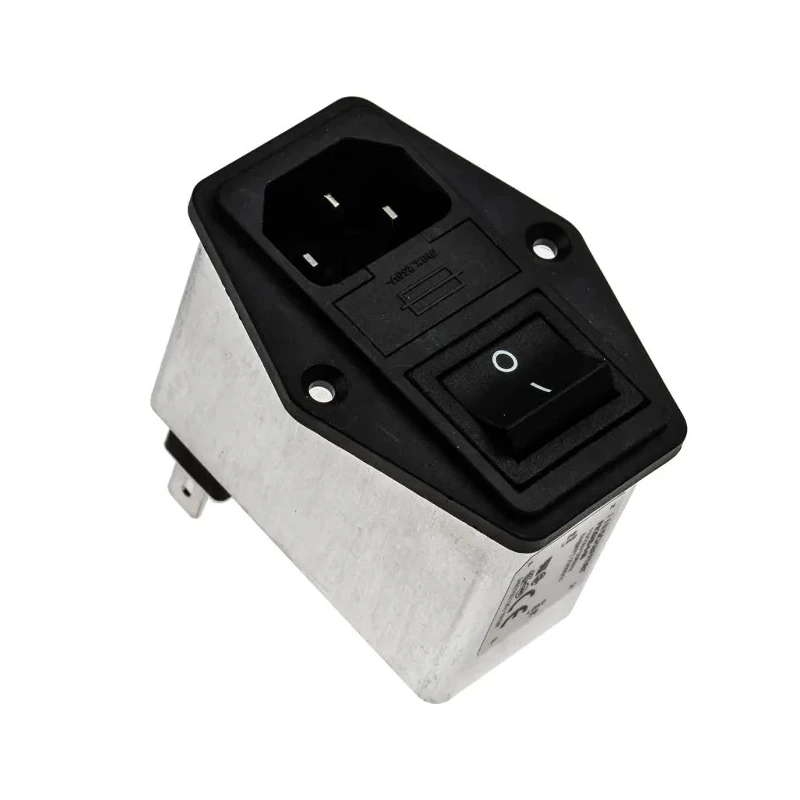

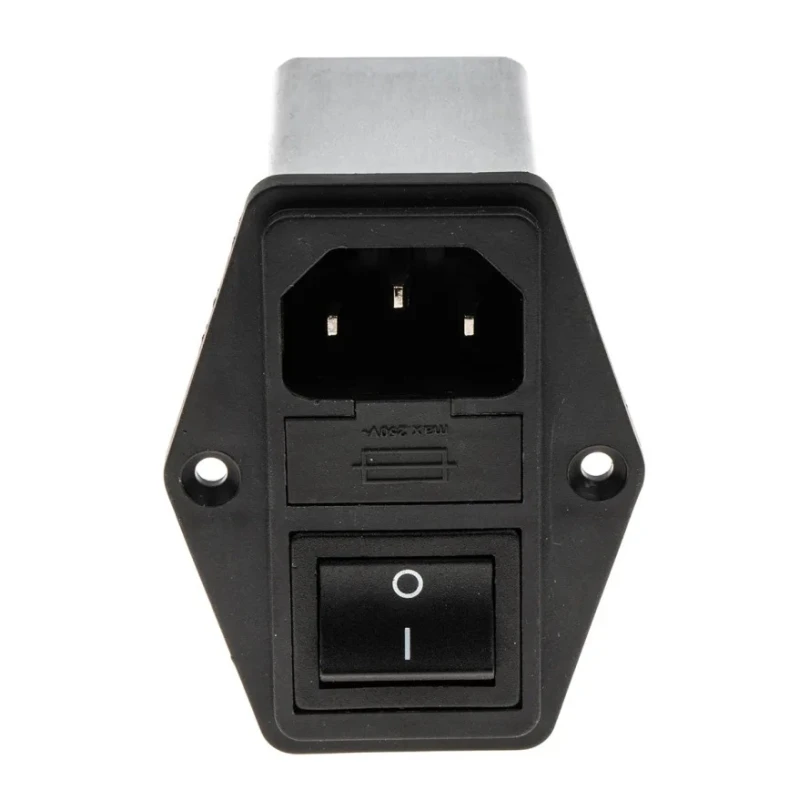

Schaffner 250V AC 6A Panel Mount IEC Filter Male 2 Pole 2 Fuse Faston FN284B-6-06

Schaffner FN284B-6-06 is a high-performance IEC filter with a 250V AC voltage rating and 6A current rating, designed for panel mount applications. It features a male C14 IEC connector with dual fuses (2 fuses of 5 x 20 mm size) and Faston terminations for reliable and secure connections. The filter is engineered as a medical version with a bleed resistor and excludes the Y2 capacitor.

This IEC inlet filter is optimized to reduce mains-borne interference where capacitors are insufficient, providing low earth leakage current and high safety compliance. The operating frequency support ranges from 50Hz to 400Hz, and its robust operating temperature span from -25°C to 85°C allows for versatile industrial, medical, household, and electrical equipment applications.

The product includes a dual-pole rocker switch for convenient operation and a fuse drawer allowing easy access. Its dimensions are 65mm in height, 50mm in width, and 64.8mm in depth, making it a compact and practical component for various equipment requiring IEC filtering.

Typical uses include medical equipment, household electrical devices, single-phase and switch-mode power supplies, and test and measurement instruments, ensuring compliance with IEC 950 standards. Schaffner IEC filters ensure reliability and safety in critical power and signal applications across industries.

Panel mount IEC filter with male C14 connector and Faston terminals. Dual fuse design with 2 fuses sized 5 x 20 mm for circuit protection. Voltage rating of 250V AC and current rating of 6A. Fits operating frequencies between 50Hz and 400Hz for broad compatibility.

Medical-grade version with bleed resistor and absence of Y2 capacitor. Operating temperature range from -25°C up to 85°C. Low earth leakage current suitable for safety critical applications. Explore more Schaffner IEC Filters and related electronic components at EnvMart for quality and dependable solutions.
