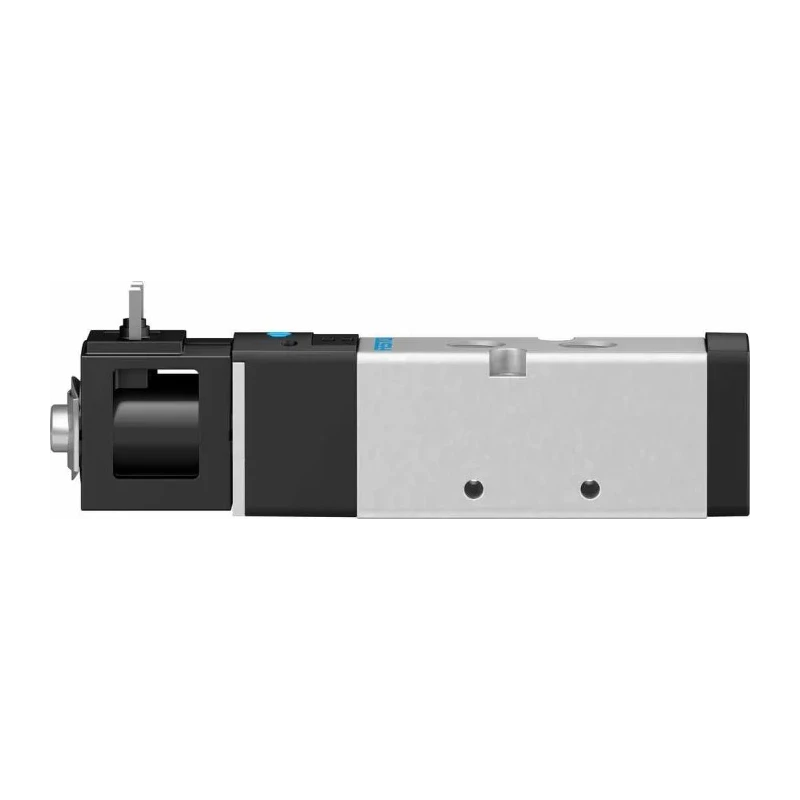

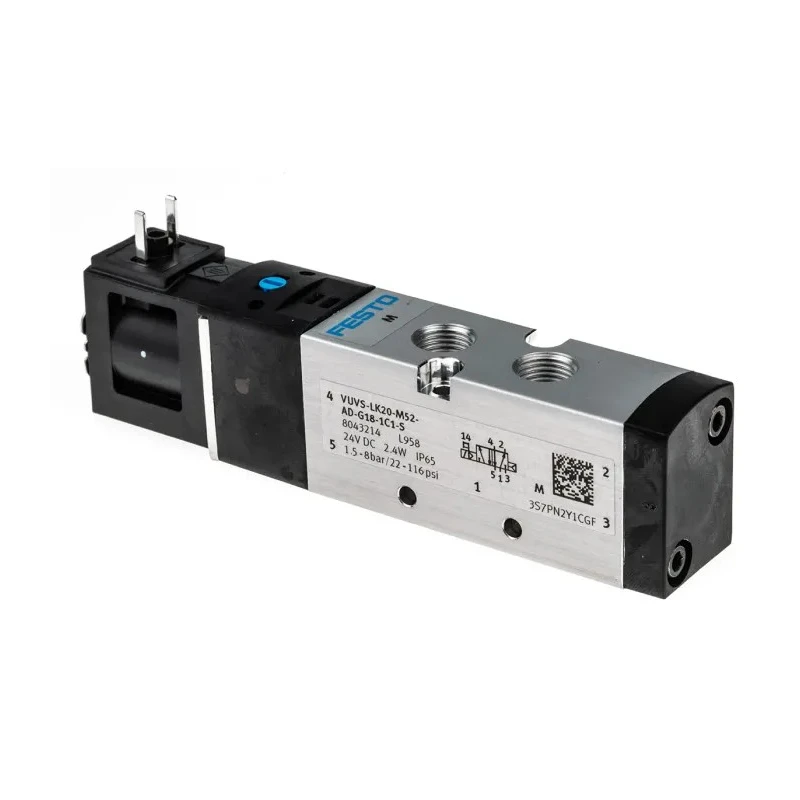

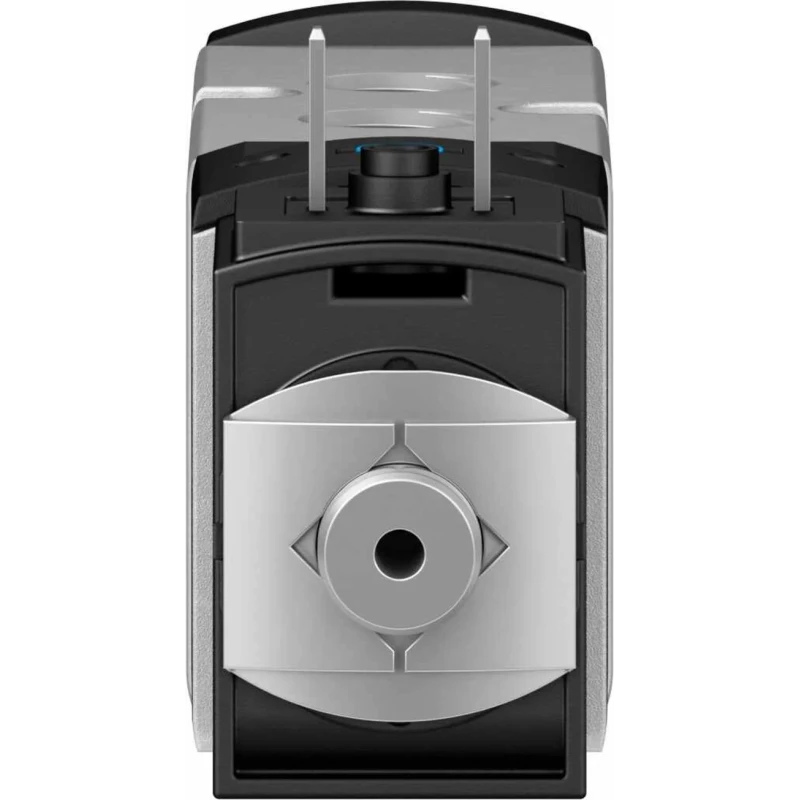

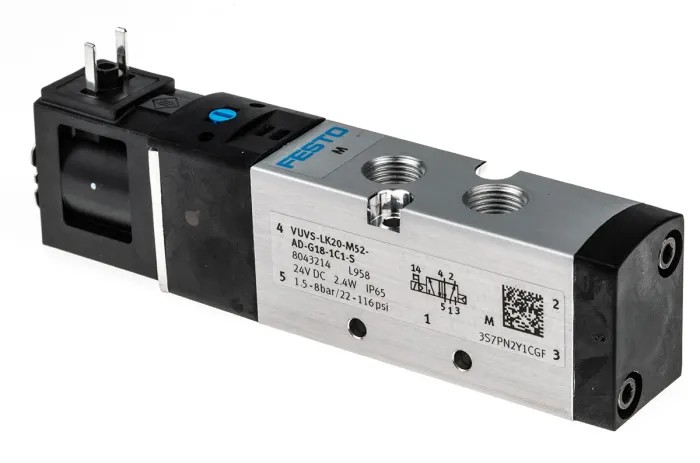

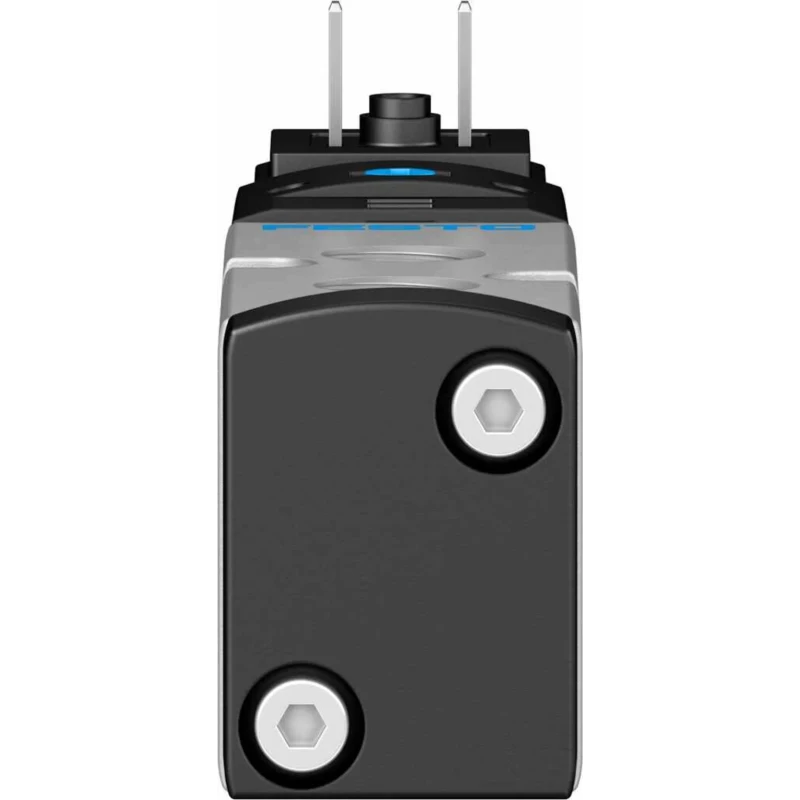

Festo Pneumatic Solenoid Valve - 5/2 Solenoid/Spring G 1/8 Port Size 24V DC VUVS-LK20-M52-AD-G18-1C1-S
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVS-LK20-M52-AD-G18-1C1-S |
| Width | 21mm |
| Mount Type | In-Line |
| Series | VUVS |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 550L/min |
| Standards/Approvals | RoHS, EN, IEC, ISO |
| Connection Thread Standard | G 1/8 |
| Minimum Pilot Pressure | 1.5bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Type C |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 2.4W |
| Festo Solenoid Pilot Valve - Pilot G 1/8 CPE Series 550237Brand | Festo |
Key Features
- The solenoid valve features a corrosion-resistant aluminium alloy body for durability.
- Operates at a maximum pressure of 8 bar suitable for pneumatic vacuum and fluid control systems.
- Equipped with a reliable piston-slide design and internal air-spring reset for quick response.
- Rated for operating temperature range from -5°C to 50°C for use in harsh environments.
- Includes manual override and Type C electrical connection for versatile control.
- Designed with 5 ports and 2 positions for efficient flow regulation.
- Seal material is nitrile rubber (NBR) ensuring leak resistance and durability.
- Compliant with RoHS and standards EN, IEC, and ISO.
Product Description
Festo VUVS-LK20-M52-AD-G18-1C1-S pneumatic solenoid valve is designed for reliable flow control in industrial pneumatic systems. This 5/2 solenoid/spring valve features a corrosion-resistant aluminium alloy body, making it suitable for industrial, laboratory, construction, HVAC, manufacturing, and water treatment applications. It operates at 24V DC with a solenoid power consumption of 2.4W, enabling fast electrical actuation.
The valve offers a maximum flow rate of 550L/min and can handle pressures up to 8 bar. Its piston-slide structure and internal air-spring reset ensure quick open and close cycles for efficient regulation. The operating temperature range of -5°C to 50°C allows operation in diverse environmental conditions.
The valve’s design includes a manual override for flexible operation and uses nitrile rubber (NBR) seals for reliable sealing performance. It has 5 ports and 2 positions, with a G 1/8 female connection thread standard compliant with industrial fittings.
Compliant with RoHS, EN, IEC, and ISO standards, this valve is certified for quality and safety. Its IP67 ingress protection rating confirms it is dust-tight and capable of withstanding immersion in up to 1 metre of water for 30 minutes, ensuring long service life in harsh environments.
Typical applications include vacuum systems, packaging processes, and heating and cooling system controls. The valve comes pre-assembled and is easy to install inline for immediate use in industrial pneumatic setups.
The solenoid valve features a corrosion-resistant aluminium alloy body for durability. Operates at a maximum pressure of 8 bar suitable for pneumatic vacuum and fluid control systems. Equipped with a reliable piston-slide design and internal air-spring reset for quick response.
Rated for operating temperature range from -5°C to 50°C for use in harsh environments. Includes manual override and Type C electrical connection for versatile control. Designed with 5 ports and 2 positions for efficient flow regulation.
Seal material is nitrile rubber (NBR) ensuring leak resistance and durability. Compliant with RoHS and standards EN, IEC, and ISO. Ingress protection rated IP67 for dust-tightness and immersion resistance. Female port gender and G 1/8 connection thread standard for secure fitting.
Explore more Pneumatic Solenoid Valves and accessories available at EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 8 bar.
It has a maximum flow rate of 550L/min.
This model operates at 24V DC.
The operating temperature range is from -5°C to 50°C.
It uses a Type C electrical connection.
The valve is designed with 5 ports.
The seal material is nitrile rubber (NBR).
This valve is designed for in-line mounting.
The body material is made of corrosion-resistant aluminium alloy.
It is compliant with RoHS, EN, IEC, and ISO standards.
The actuation type is solenoid/spring.
The valve has an IP67 ingress protection rating, making it dust-tight and resistant to immersion in water.
