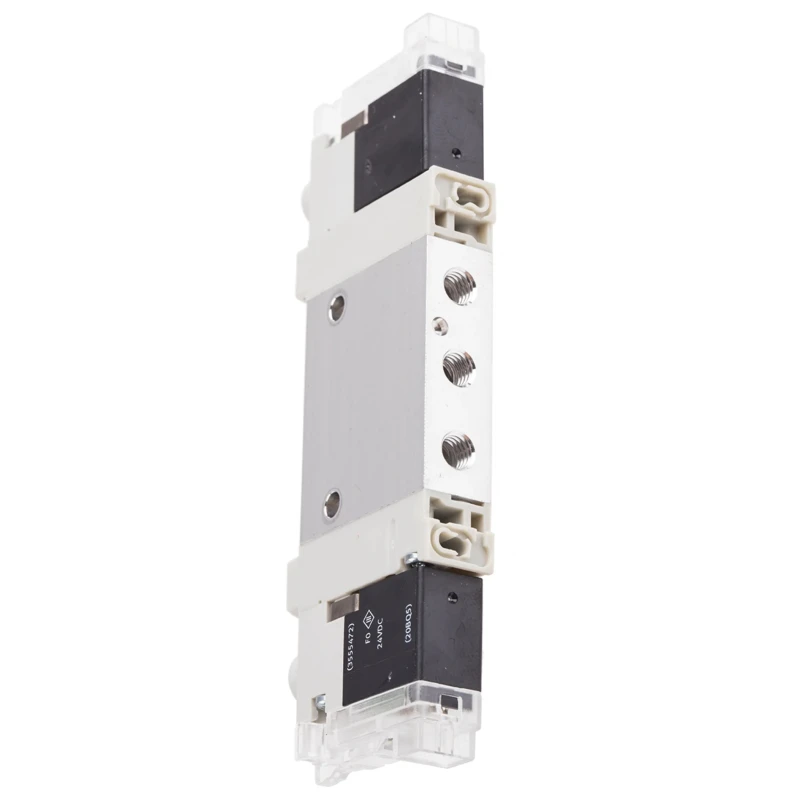

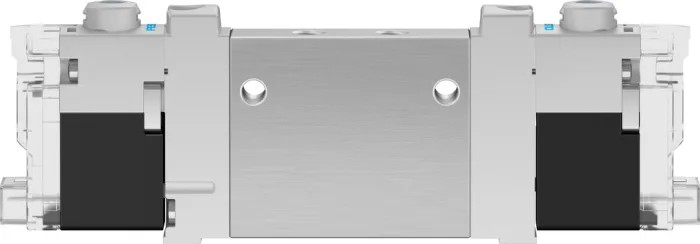

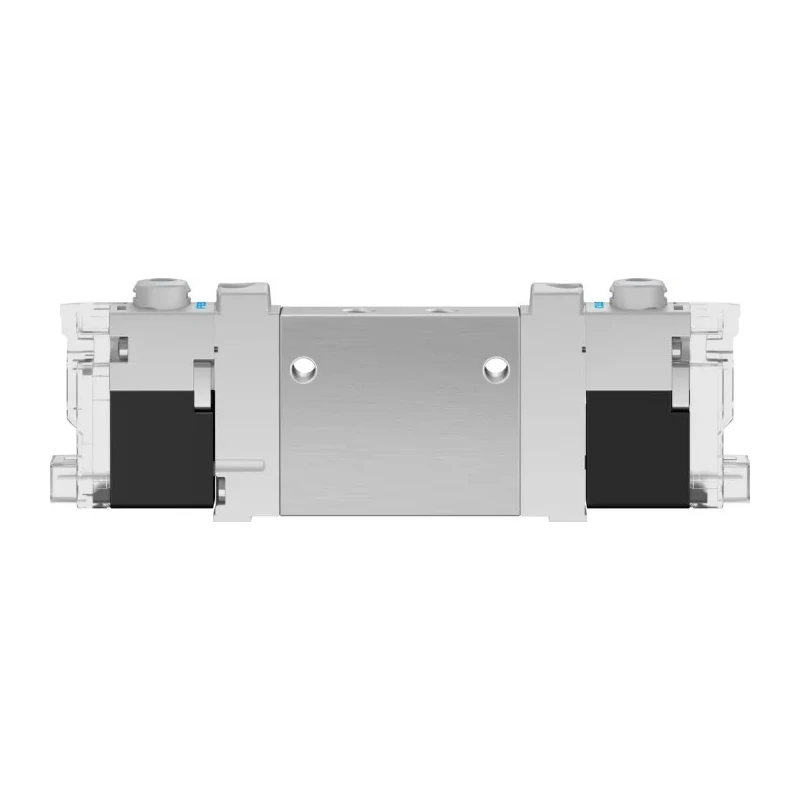

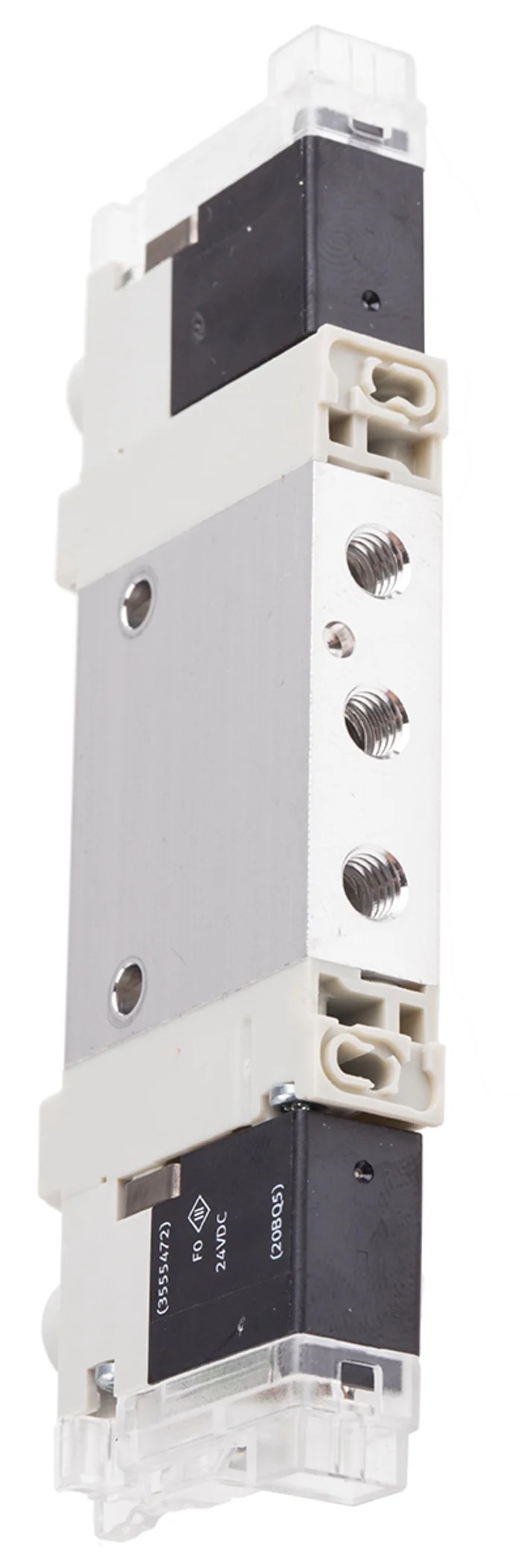

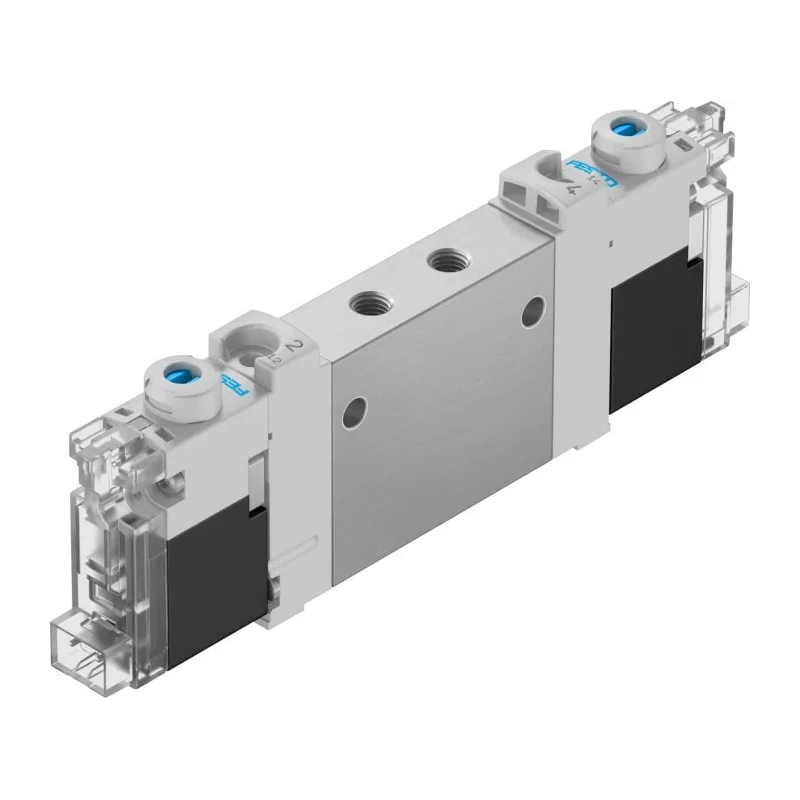

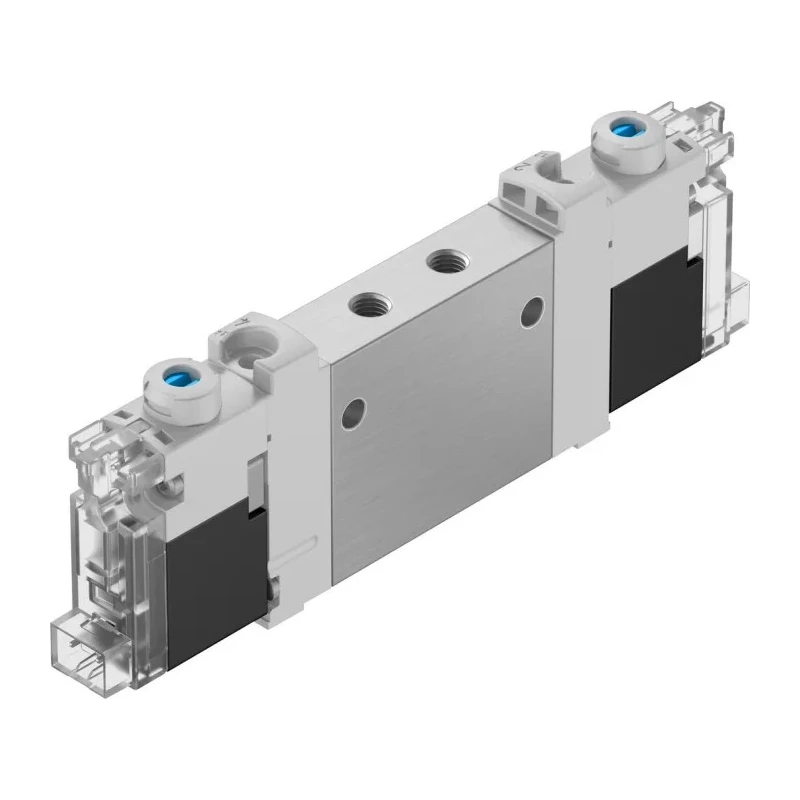

Festo Solenoid Valve 3/2 Solenoid/Spring Valve M5 Port Size Aluminium Alloy Body 24V dc 0.8W VUVG-LK10-T32C-AT-M5-1H2L-S

Festo VUVG-LK10-T32C-AT-M5-1H2L-S solenoid valve is a precision-engineered pneumatic component designed for controlling airflow in industrial pneumatic systems. It is a 3/2 solenoid/spring type valve with a 24V dc electrical supply and low power consumption of 0.8W, ensuring energy efficiency and reduced heat emission during operation.

The valve features a robust aluminium alloy body that is resistant to corrosion and mechanical impacts, providing reliable long-term performance in demanding industrial environments. Threaded with metric M5 ports and female port gender, it allows easy integration with standard pneumatic setups. The nitrile rubber (NBR) seals protect internal components from dust and debris, securing smooth operation and durability.

With a maximum operating pressure of 7 bar and operating temperature range between -5°C and 50°C, this valve is suited for diverse applications. It supports a throttleable exhaust function which maintains stable pressure in pneumatic systems by discharging excess pressure. The valve has two positions and three ports, operated by a single solenoid and spring mechanism, enabling rapid activation and reliable return to resting state on signal removal.

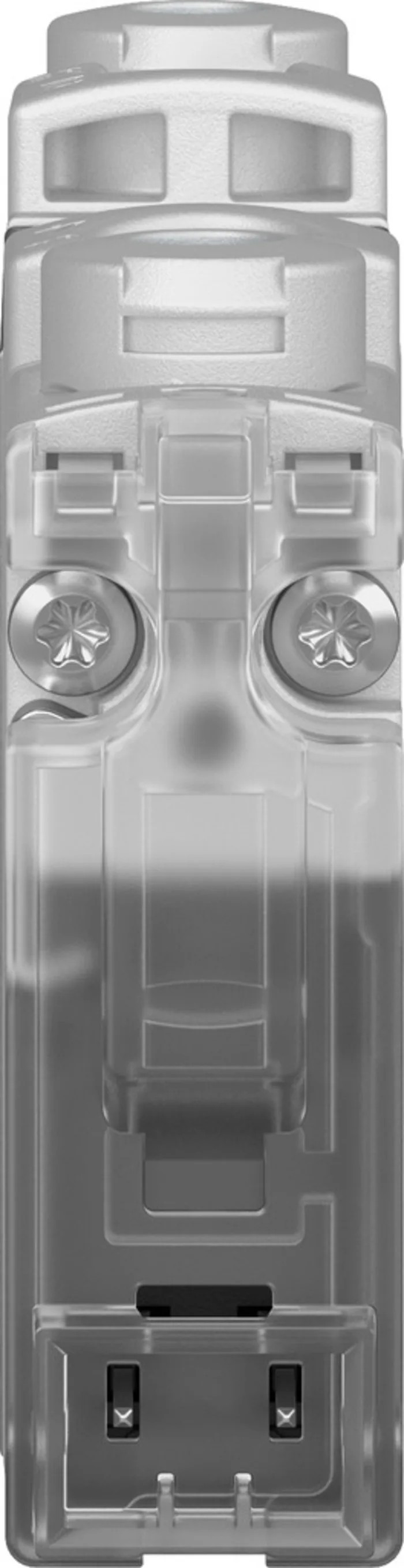

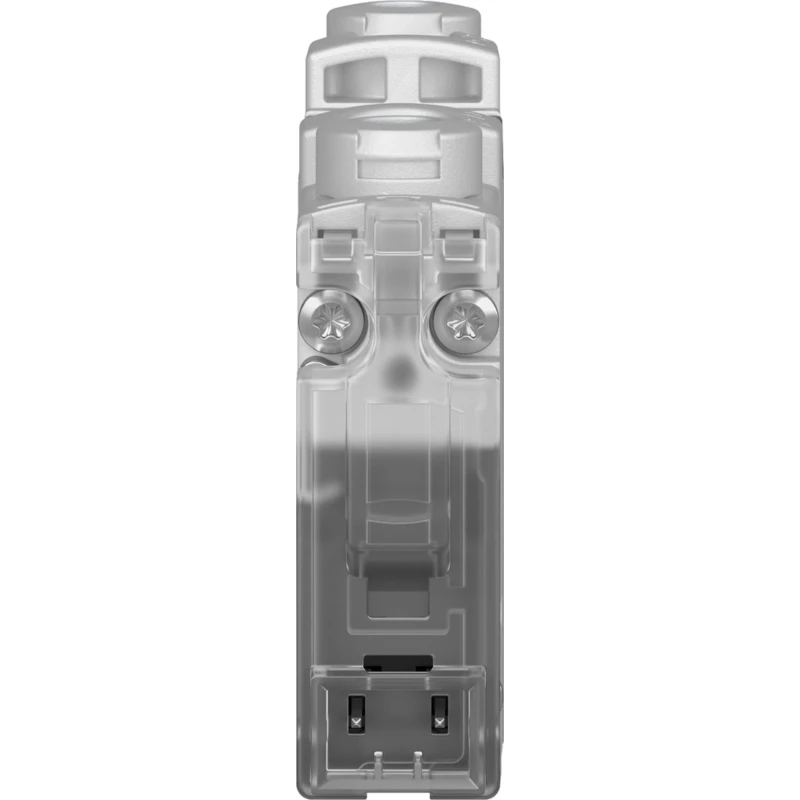

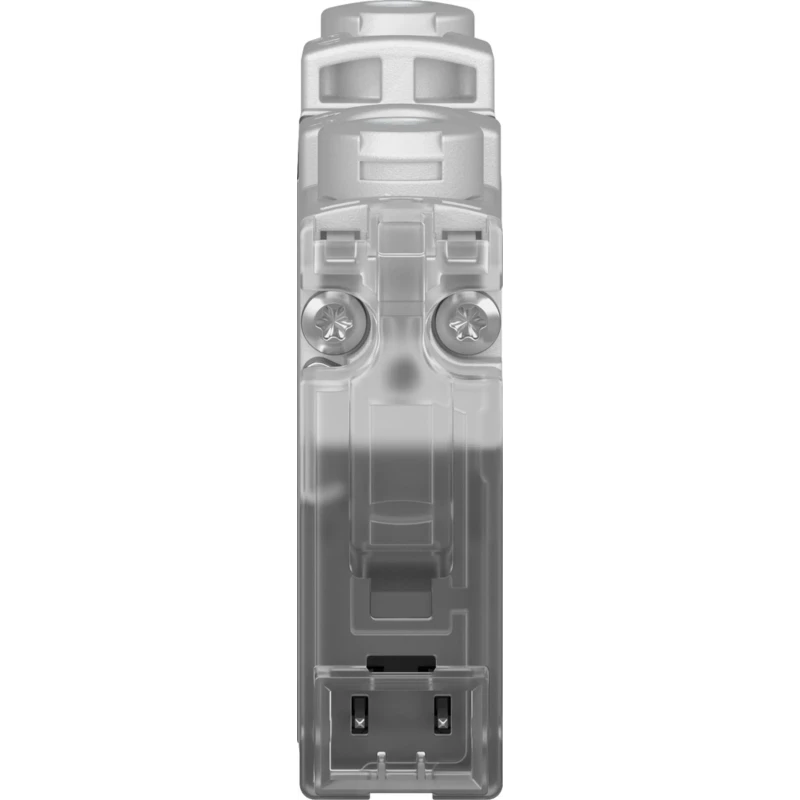

The compact 10 mm width and in-line mount type facilitate flexible and space-saving installation either on manifold rails or via through-holes on the valve body. The 2-pin plug electrical connection provides straightforward wiring compatibility for automation environments.

Common use cases include wastewater treatment plants, pharmaceutical manufacturing, and processing and packaging equipment, where precise pneumatic control and reliability are critical. It complies with RoHS, ISO, and EN standards ensuring quality and safety compliance for industrial applications.

The valve features a 3-port 2-position configuration for pneumatic control. Constructed with a corrosion-resistant aluminium alloy body. Equipped with Nitrile Rubber (NBR) seals for durability and dust protection. Operates at a maximum pressure of 7 bar and temperature range from -5°C to 50°C.

Uses a solenoid/spring actuation type with single solenoid design. Includes 2 pin electrical connection and M5 port size with metric thread standard. Throttleable exhaust maintains stable system pressure under operation.

Compact width of 10 mm allows flexible mounting in-line or on manifold rails. Energy-efficient low power consumption minimizes heat generation during use. Ideal for applications in wastewater treatment, pharmaceutical industry, and processing equipment.
