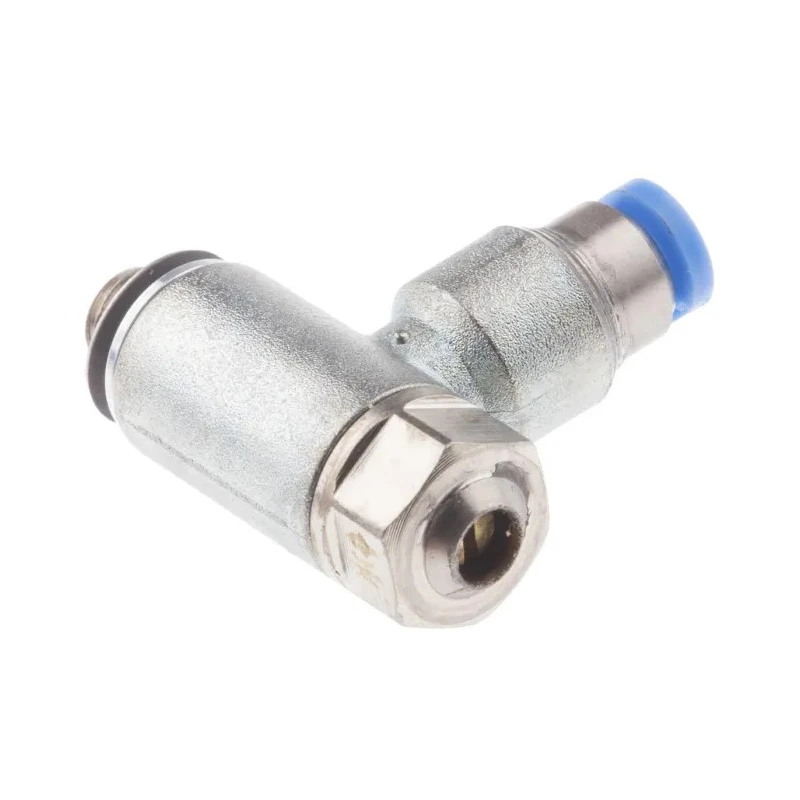

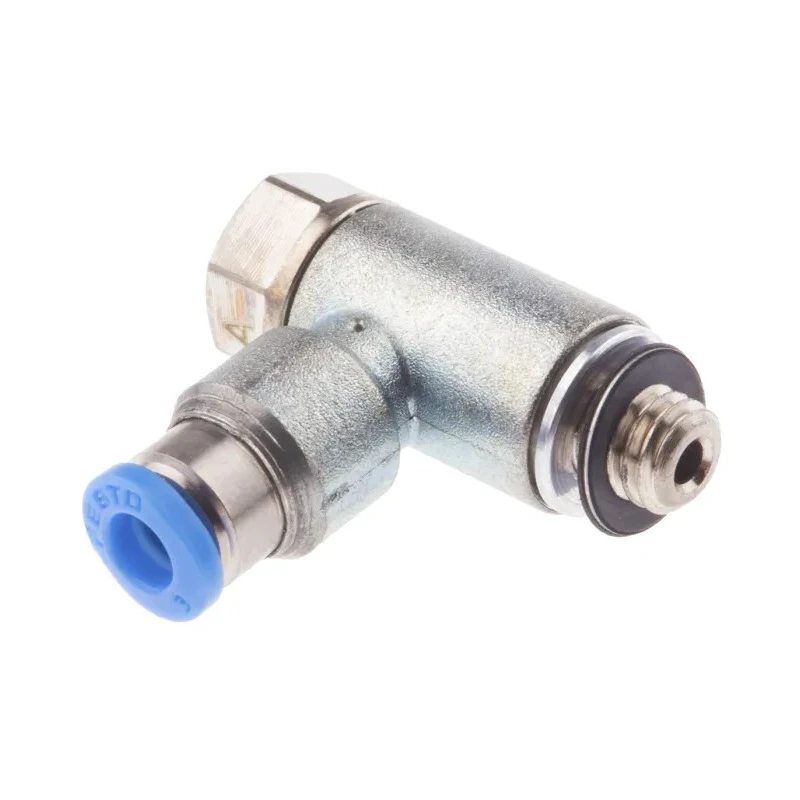

Festo Pneumatic Flow Controller Exhaust Valve GRLA Series Threaded ISO 1179-1 and ISO 228-1 GRLA-M5-QS-3-D
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Material | High Alloy Stainless Steel, Anodised wrought Aluminium Alloy, Brass, Die Cast Zinc, Nickel Plated Brass, Nitrile Rubber (NBR), Polyamide, POM |
| Maximum Operating Pressure | 1 bar |
| Outlet Connection Type | Threaded |
| Model | GRLA-M5-QS-3-D |
| Series | GRLA |
| Maximum Operating Temperature | 150°C |
| Sub Type | Flow Controller |
| Minimum Operating Temperature | -10°C |
| Inlet Thread Standard | ISO 1179-1 and ISO 228-1 |
| Minimum Operating Pressure | 0.2bar |
Key Features
- One-way exhaust air flow control valve designed for regulating piston speed during advance and return strokes.
- Robust metal construction using high alloy stainless steel, anodised aluminium, brass, and zinc for durability.
- Compatible with QS push-in fittings allowing 360° rotation and swivel for flexible installation.
- Operated manually with a slotted-head screw for precise flow adjustment.
- Lightweight design weighing only 13 grams with a nominal tightening torque of 0.8 Nm.
- Operates within temperature range -10°C to 150°C and maximum pressure of 1 bar.
- Suitable for industrial pneumatic applications requiring controlled exhaust flow.
- Threaded mounting type that can be assembled in any position.
Product Description
Festo GRLA-M5-QS-3-D is a pneumatic flow controller exhaust valve from the GRLA series, designed for effective flow regulation in pneumatic systems. Featuring threaded connections compliant with ISO 1179-1 and ISO 228-1 standards, this valve is built to ensure reliable exhaust air flow control and precise piston speed management during both advance and return strokes.
The valve body materials include high alloy stainless steel, anodised wrought aluminium alloy, brass, die cast zinc, nickel-plated brass, nitrile rubber (NBR), polyamide, and POM, offering robust durability and corrosion resistance in industrial environments. It weighs only 13 grams and is operated manually via a slotted head screw adjusting element with a nominal tightening torque of 0.8 Nm.
The integrated QS push-in fittings with captive seals provide simple and fast mounting, allowing rotation and swivel through a 360° axis to accommodate diverse installation orientations. The valve supports a maximum operating pressure of 1 bar and functions reliably across temperatures ranging from -10°C to 150°C.
This exhaust valve complies with key standards including RoHS, ISO 8573-1:2010 (7:4:4), ISO 228-1, ISO 1179-1, and carries Germanischer Lloyd approval, emphasizing its quality and suitability for pneumatic applications.
Typical industrial uses include pneumatic circuit speed regulation in manufacturing, automation, fluid power and tool applications. The GRLA series offers options with slow, medium, or fast piston movement settings to tailor performance as required.
One-way flow control valve for efficient exhaust air regulation. Robust metal design with brass threaded plug and adjusting screw. 360° rotatable QS push-in fittings enable flexible installation. Manual flow adjustment with slotted head screw.
Lightweight at 13 grams for ease of integration. Operates under temperatures from -10°C to 150°C and pressures up to 1 bar. Compliant with RoHS and multiple ISO standards for quality assurance. Threaded mounting suitable for any position assembly.
Discover more Pneumatic Valves and flow controllers at EnvMart for industrial automation and fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Festo GRLA-M5-QS-3-D exhaust valve is 1 bar.
This model operates within a temperature range of -10°C to 150°C.
The valve is made from high alloy stainless steel, anodised aluminium alloy, brass, die cast zinc, nickel-plated brass, nitrile rubber (NBR), polyamide, and POM.
Flow adjustment in this unit is done manually via a slotted head screw adjusting element.
The inlet thread standards for this exhaust valve are ISO 1179-1 and ISO 228-1.
This model weighs only 13 grams, making it lightweight for easy integration.
The valve features a threaded outlet connection type for installation.
Yes, it has a threaded mounting type that allows for assembly in any position.
This exhaust valve is suitable for industrial pneumatic applications requiring controlled exhaust flow, such as speed regulation in manufacturing and automation.
The nominal tightening torque for this model is 0.8 Nm.
Yes, it complies with RoHS, ISO 8573-1:2010 (7:4:4), ISO 228-1, and ISO 1179-1.
The GRLA-M5-QS-3-D belongs to the GRLA series of pneumatic flow controllers.
