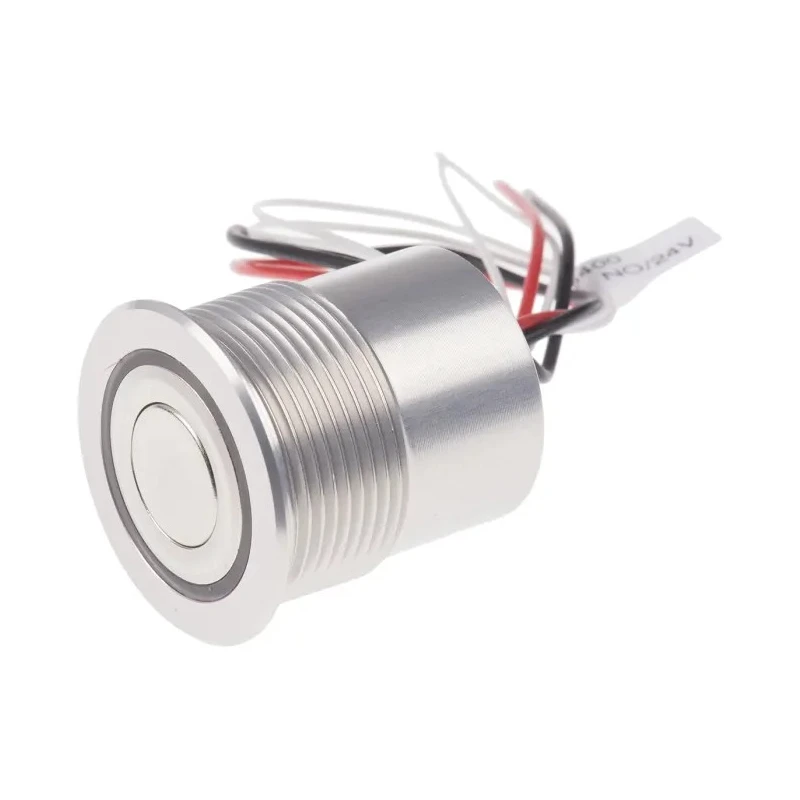

Schurter MCS 30 Series Illuminated Push Button Switch Latching Panel Mount 22.2 mm Cutout SPST Red LED IP40 IP65 1241.6400
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP40, IP65 |
| Mount Type | Panel |
| Series | MCS 30 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Contact Rating | 125mA / 48Vdc (SPNO) |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22.2 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 48V dc |
| Actuator Style | Flush |
| Switch Contact Current | 125mA |
Key Features
- Features a durable silver actuator and flush style for sleek operation.
- Designed for panel mounting with IP40 and IP65 ingress protection ratings.
- Operates at 48 V DC with a contact rating of 125mA suitable for control applications.
- Includes integrated ring illumination available in red LED for enhanced visibility.
- RoHS compliant and suitable for challenging industrial environments.
- Supports operating temperature range from -20°C to 60°C ensuring reliability.
- Designed with silver contacts providing long service life and reliable tactile feedback.
- Equipped with solder terminal type for secure electrical connection.
Product Description
Schurter 1241.6400 is an MCS 30 Series Illuminated Push Button Switch designed for robust industrial and commercial electrical control applications. This panel mount switch features a 22.2 mm cutout with a flush actuator style and silver color for professional appearance and easy integration.
The switch operates with a latching mechanism and Single Pole Single Throw (SPST) contact configuration suitable for on/off control. It supports a contact DC voltage rating of 48V and a contact current rating of 125mA, making it ideal for low power circuit control. The red LED ring illumination offers clear status indication, enhancing user interface in control panels.
Ingress protection ratings of IP40 and IP65 ensure resistance to dust and water ingress, allowing use in challenging industrial environments. The sturdy design includes silver contacts for longevity and tactile reliability. Operating temperature ranges from -20°C to 60°C, accommodating a wide variety of ambient conditions.
Durable latching push button with silver actuator and flush style. Panel mount type with 22.2 mm cutout suitable for various enclosures. Robust silver contact system rated for 125mA at 48V DC. High visibility red LED illumination integrated in the ring.
Compliant with RoHS standards ensuring environmental safety. IP40 and IP65 rated for dust and water protection. Reliable solder terminal type for strong electrical connections. Wide operating temperature range from -20°C to 60°C.
This push button switch is suitable for industrial automation, control panels, machinery, and commercial electrical systems requiring reliable tactile switches with integrated illumination. It provides both functional control and visual feedback within robust environments.
Explore a wide range of Push Button Switches and related electrical components for efficient industrial and commercial installations on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 125mA at 48V DC, suitable for low power circuit control applications.
This switch has ingress protection ratings of IP40 and IP65, providing resistance to dust and water ingress.
The operating temperature range for this unit is from -20°C to 60°C, accommodating various ambient conditions.
It features a Single Pole Single Throw (SPST) contact configuration, suitable for on/off control.
The required panel cutout size for installation is 22.2 mm.

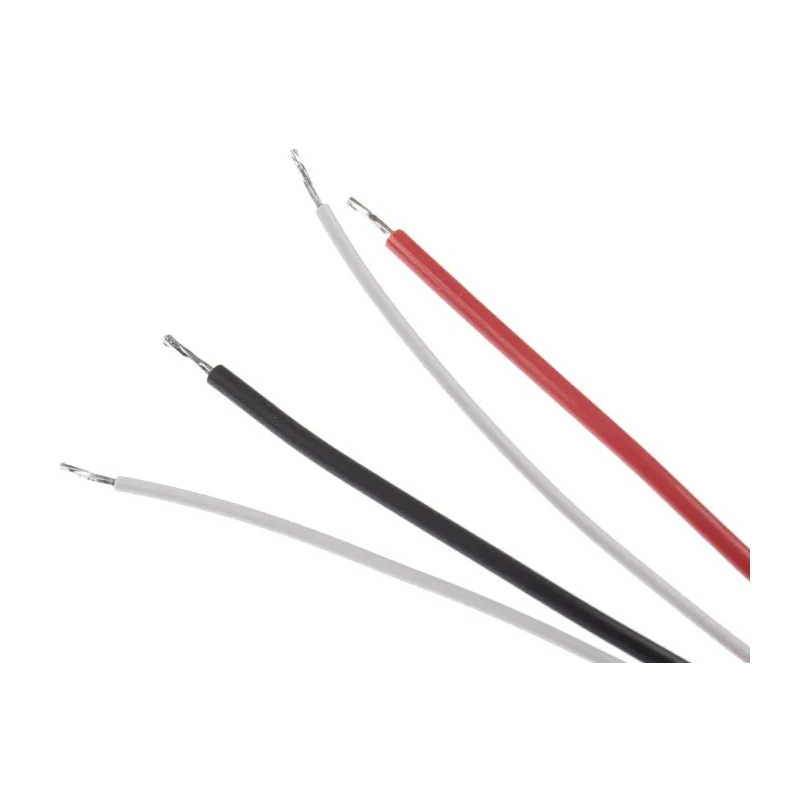

This model is equipped with solder terminals for secure electrical connections.
The integrated LED illumination is red, providing clear status indication.
It features a flush actuator style, designed for a sleek and professional appearance.
Yes, it is RoHS compliant, ensuring environmental safety in its materials and manufacturing.
This switch is suitable for industrial automation, control panels, machinery, and commercial electrical systems.
The actuator color is silver, contributing to its professional look and feel.
This model belongs to the Schurter MCS 30 Series of illuminated push button switches.
