Schurter MCS 19 Series Momentary Push Button Switch Panel Mount 19 mm Cutout SPST 48 V dc 1241.2800

Schurter 1241.2800 is a momentary push button switch from the MCS 19 series designed for panel mounting applications requiring a 19 mm cutout. This SPST (Single Pole Single Throw) switch is rated for 48 V dc, making it suitable for various electrical control circuits.

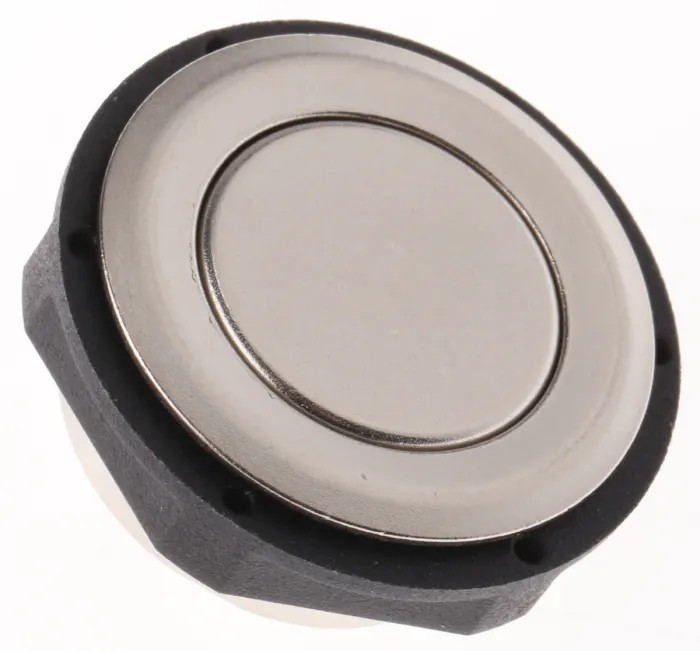

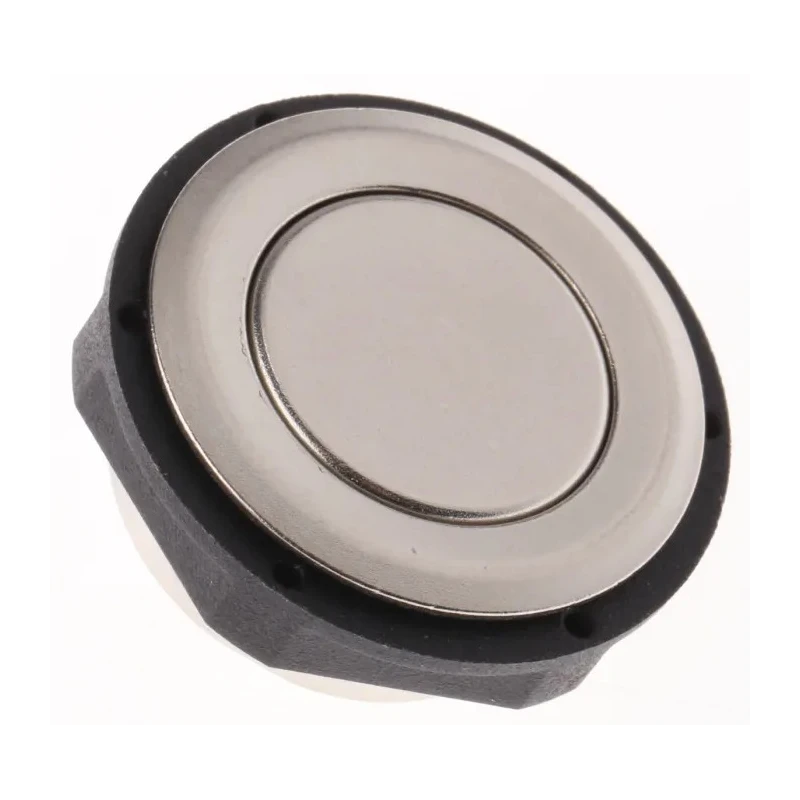

The switch features a silver-colored button actuator with a natural-colored case providing a sleek, sturdy appearance. It is designed to withstand challenging environments with its robust construction and anti-vandal properties. The push button operates momentarily, returning to its original position after actuation, making it ideal for momentary control applications.

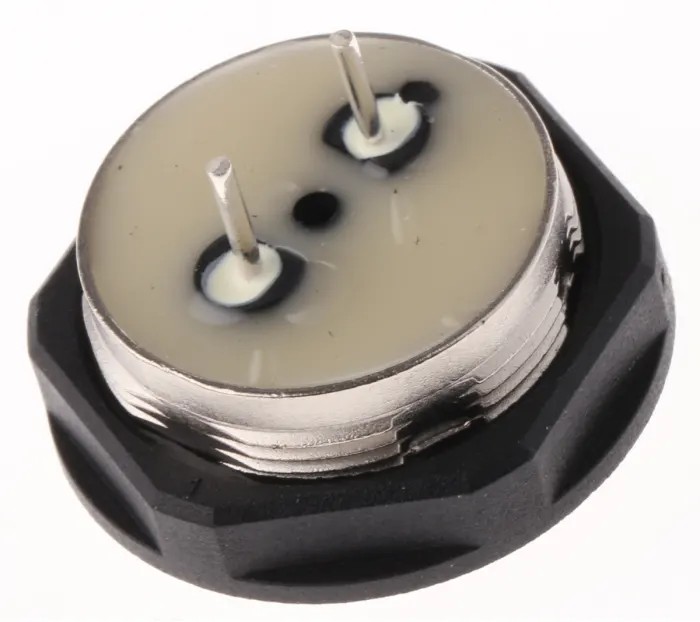

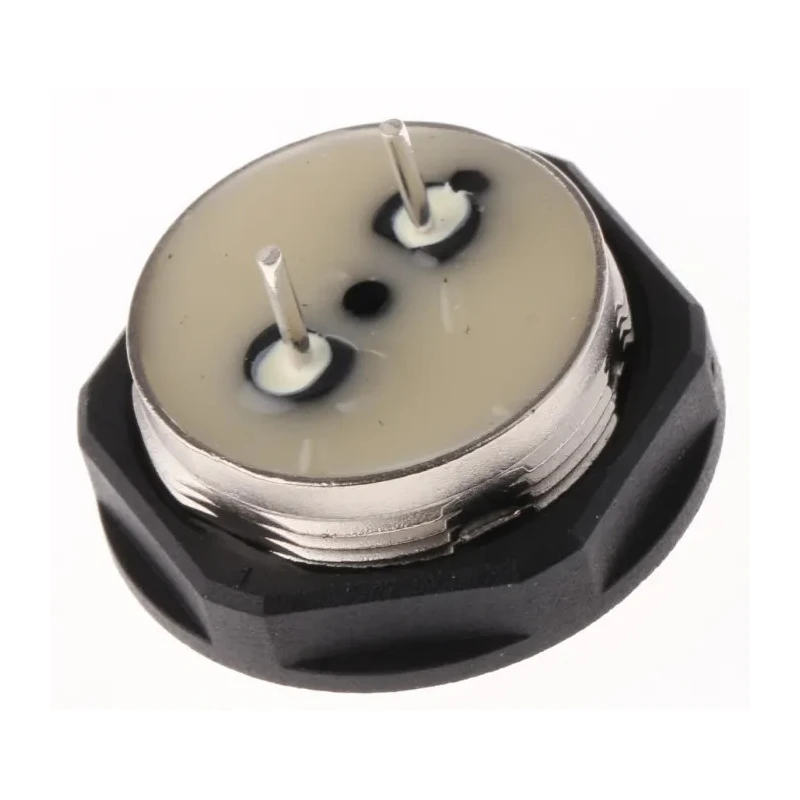

This switch fits securely into panels with its mounting type designed specifically for panel installation, including a nut and O-ring seal to prevent dust and moisture ingress. Electrical connection is via PCB pin terminals facilitating straightforward soldering to printed circuit boards.

Operating temperature ranges from -20°C to 60°C, ensuring reliable performance in varying industrial, laboratory, and automation settings. The switch complies with RoHS regulations reflecting environmental and health safety standards.

The electrical ratings include a switch contact current of 125mA and a contact rating of 50mA/24V dc, designed for low-power circuit control. This non-illuminated button style actuator provides a simple user interface without LED indication.

Schurter 1241.2800 push button switches is applicable for industrial automation, electrical equipment panels, control units, and other commercial or laboratory devices requiring reliable manual input devices.

A set includes the switch itself complete with mounting nut and O-ring seal to ensure panel integrity during installation. Constructed with a silver actuator color for enhanced visibility and durability. Designed for momentary switch operation ensuring quick and reliable activation.

Panel mount type fitting with PCB pin terminals provides secure and easy installation. Operates within a temperature range of -20°C to 60°C, suitable for varied industrial environments. Complies with RoHS standards ensuring environmental safety.

Switch contact current up to 125mA and contact rating of 50mA at 24V dc supports low voltage control systems. Includes a natural case color and comes supplied with nut and O-ring seal for panel protection. Non-illuminated button style actuator ensures simplicity and ease of use.

Single pole single throw (SPST) normally open contact configuration ensures straightforward circuit control.
