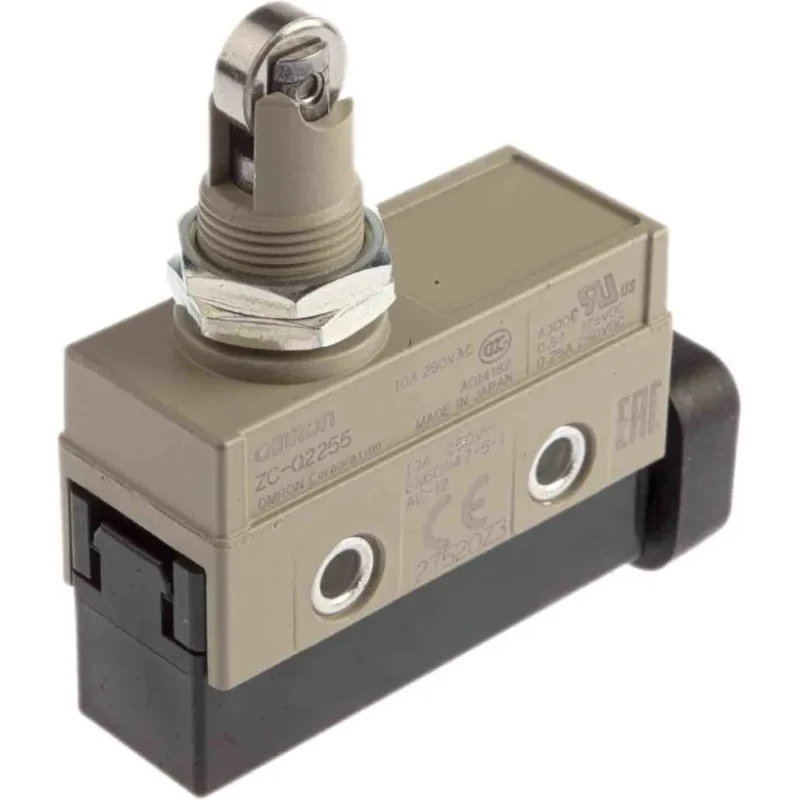

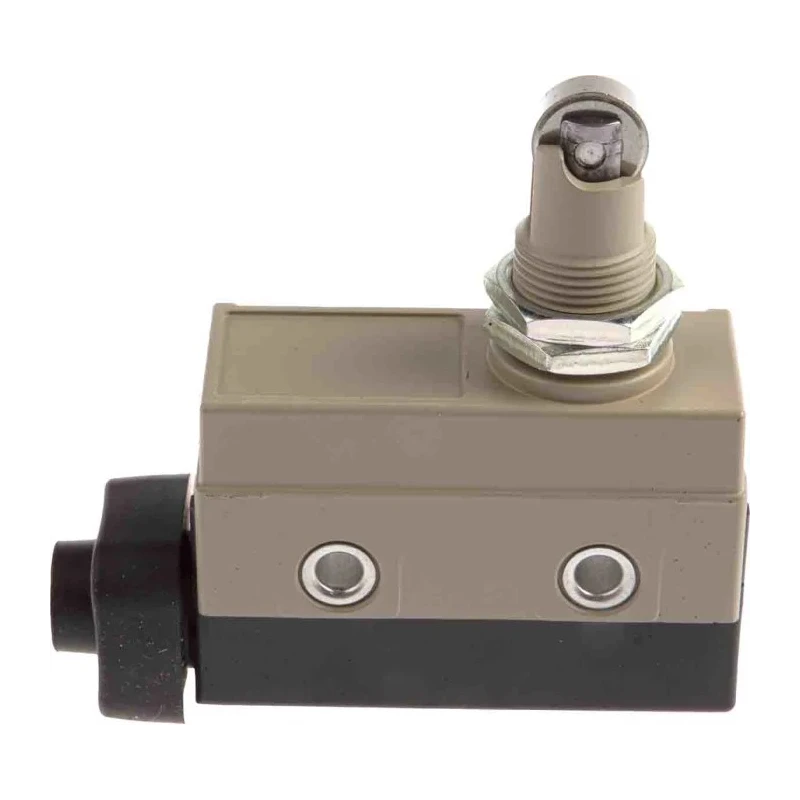

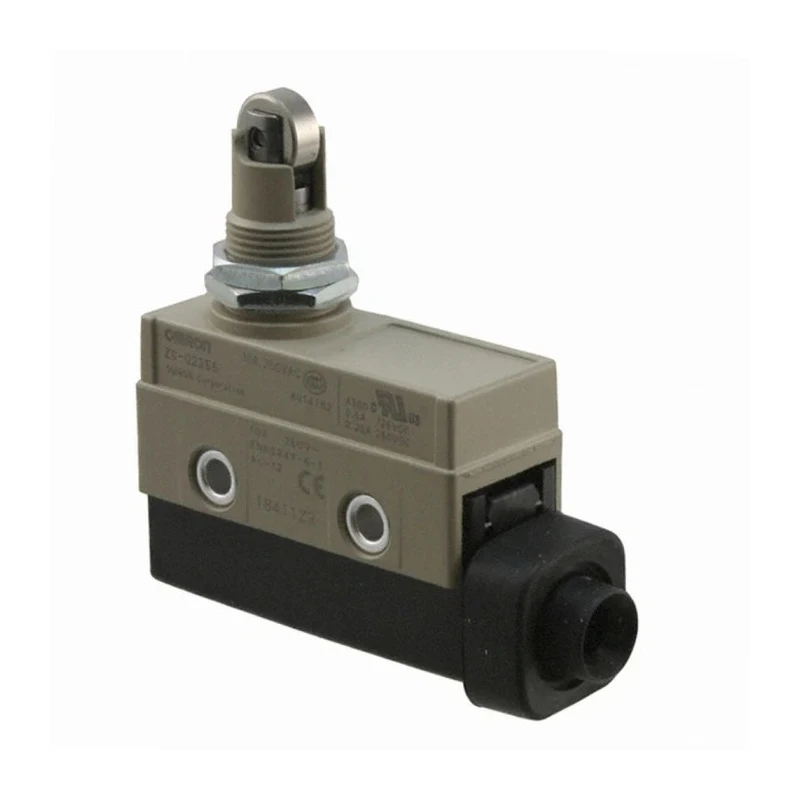

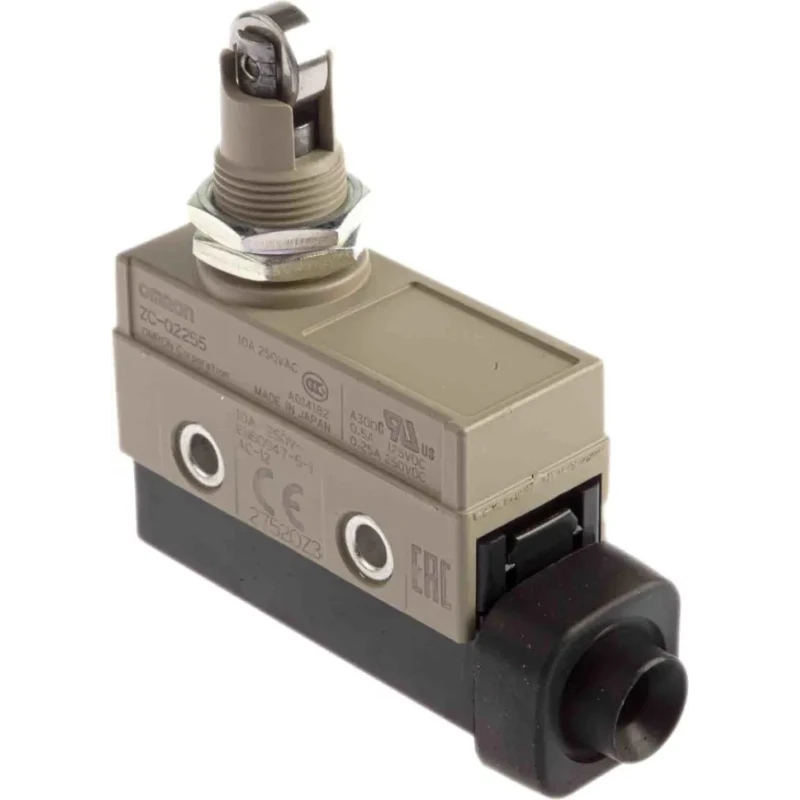

Omron ZC Series Plunger Limit Switch SPDT IP67 Case Housing 250V AC 10A

Omron ZC-Q2255 plunger limit switch is engineered for high precision detection in automated systems such as conveyor belts, packaging machinery, and access barrier controls. Featuring a spring-loaded plunger actuator mechanism, it precisely detects object position with actuations between 0.05 and 0.5 meters per second. This action triggers the SPDT physical contacts inside the switch, enabling reliable open or close of circuits in industrial automation control.

The device houses a robust case material and achieves an IP67 ingress protection rating which grants reliable resistance to dust ingress and temporary water immersion, making it suitable for contaminated and challenging working environments. It operates efficiently over a wide temperature range from -10 °C up to 80 °C, supporting various industrial applications where temperature fluctuations are common.

With a mechanical endurance rated for 10 million cycles, this limit switch ensures long-lasting service in high-use automation lines. The 10A switching current rating safeguards electrical circuits against faults with built-in fuse protection. The compact size allows panel mounting with ease, promoting streamlined installation in industrial machinery and control panels.

Compliant with international standards UL, CSA, CE, and CCC, and made in Japan, this Omron limit switch combines high quality with dependable performance. It suits industrial automation, factory manufacturing, packaging lines, and material handling systems that require precise and durable position switching solutions.

This limit switch features a spring-loaded plunger actuator enabling fast response between 0.05 to 0.5 m/s. It offers robust protection against dust and temporary immersion in water with IP67 rating. Suitable operating temperature ranges from -10°C to 80°C, supporting diverse industrial environments.

The mechanical life expectancy is at least 10 million cycles ensuring long-term operational reliability. Compact dimensions of 69.4 mm length, 70 mm width, and 21.7 mm depth facilitate panel mounting in various systems. The switch includes a 10A fuse protecting against overcurrent anomalies for enhanced safety.

Contacts are physical type with SPDT configuration and screw terminal connections for secure wiring. Designed and manufactured in Japan with compliance to UL, CSA, CE, and CCC standards. Explore EnvMart's wide range of Limit Switches and industrial automation components for your control system needs.
