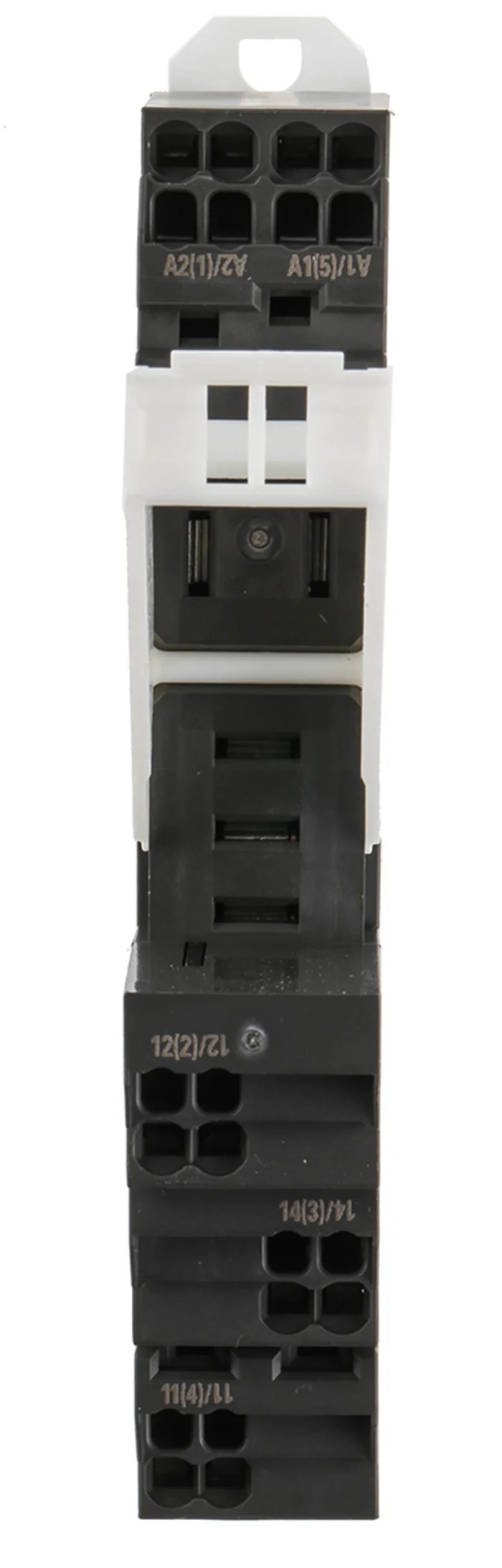

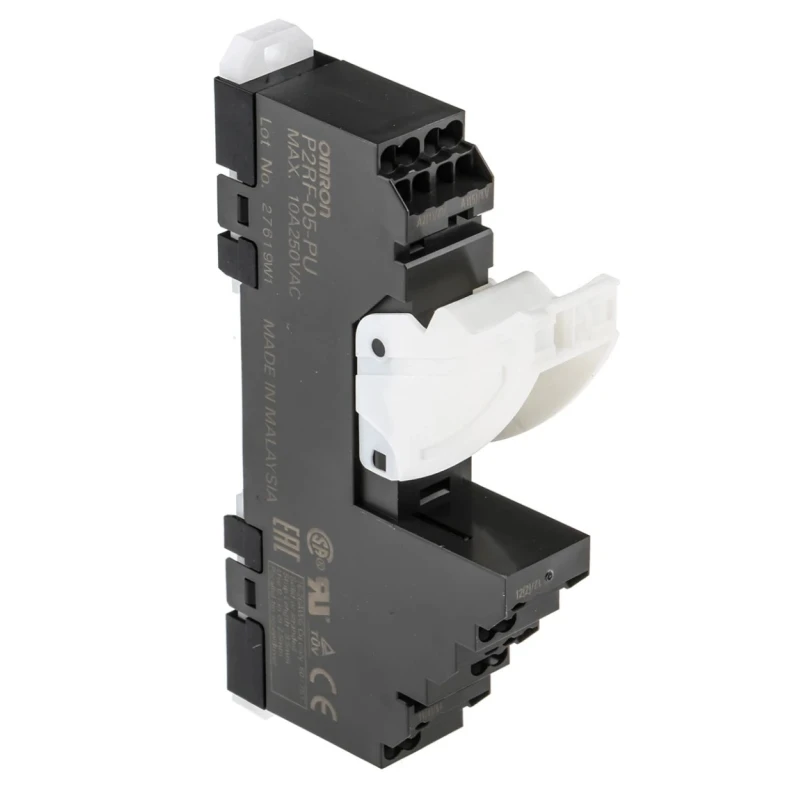

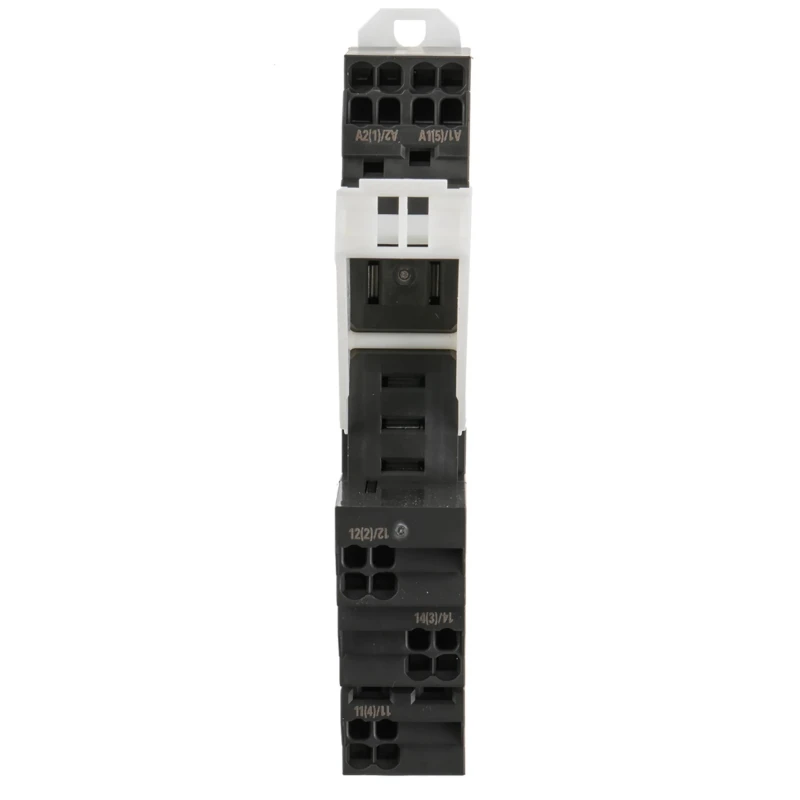

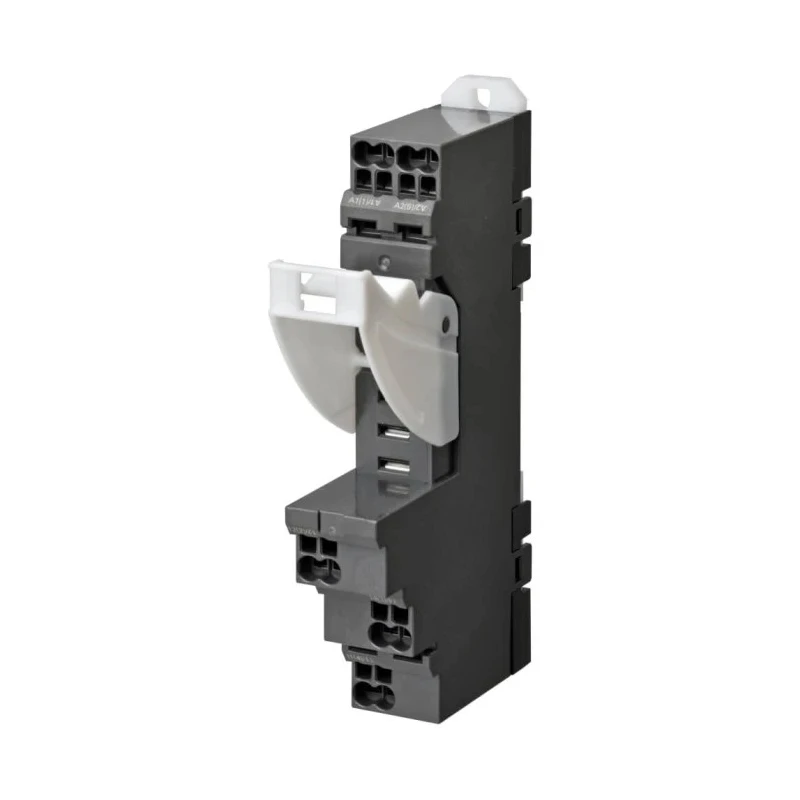

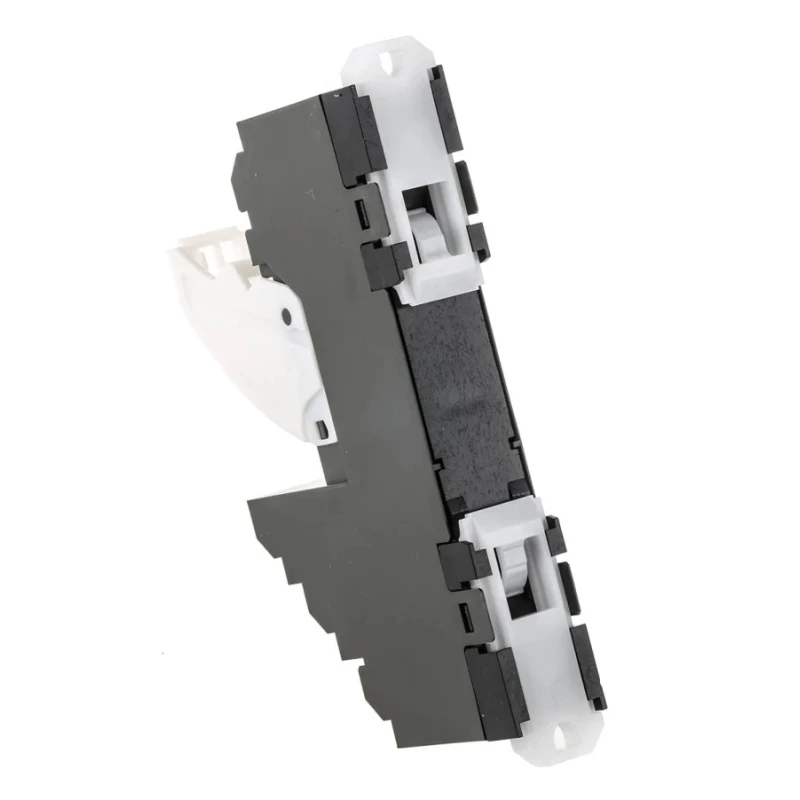

Omron 5 Way 250V AC DIN Rail Relay Socket for G2R-1-S Series General Purpose Relay, H3RN Series Timer P2RF

Omron P2RF 5 Way 250V AC DIN Rail Relay Socket is engineered for seamless connection with G2R-1-S Series General Purpose Relays and H3RN Series Timers. The socket supports a nominal voltage rating of 250V AC and a current capacity of 10A, making it ideal for light-duty automation, industrial lighting, and power transmission equipment.

This relay socket incorporates Omron’s robust engineering standards and advanced design features. Its screw terminal type ensures secure and stable wiring connections while its compact size (90 mm height, 15.5 mm width, and 52.1 mm depth) keeps installations neat and space-efficient. Designed for DIN rail mounting, the P2RF series simplifies the assembly and maintenance process by enabling snap-on installation without tooling.

Capable of withstanding operating temperatures ranging from -40°C to +70°C, this relay socket maintains performance in diverse industrial and commercial environments including telecommunications and robotics systems. The device’s 4kV dielectric strength between coil and contact terminals assures reliable operation against high voltage surges, protecting connected circuitry.

Additional convenience is provided by a release lever mechanism that facilitates quick, tool-free relay removal for ease of maintenance and replacement. Compliance with international standards such as EN 61984, TÜV Rheinland, UL, and CSA underscores the product’s adherence to global quality and safety benchmarks.

Manufactured in Malaysia under strict quality controls, the Omron P2RF relay socket exemplifies reliability and durability in relay interfacing applications. Supports 10A current rating for varied industrial applications.

5 way contact configuration suitable for versatile relay types. Screw terminal type ensures strong and secure wiring. DIN rail mountable with tool-free snap-on installation. Operates safely in temperatures from -40°C to +70°C.

Withstands 4kV dielectric strength between coil and contacts. Includes release lever for quick relay removal. Conforms to EN 61984, TÜV Rheinland, UL, CSA standards. Compact size: 90 x 15.5 x 52.1 mm (H x W x D). Manufactured in Malaysia.

Explore the Electronics & Electricals category to find more Relay Sockets and compatible accessories by Omron and other leading brands at EnvMart.
