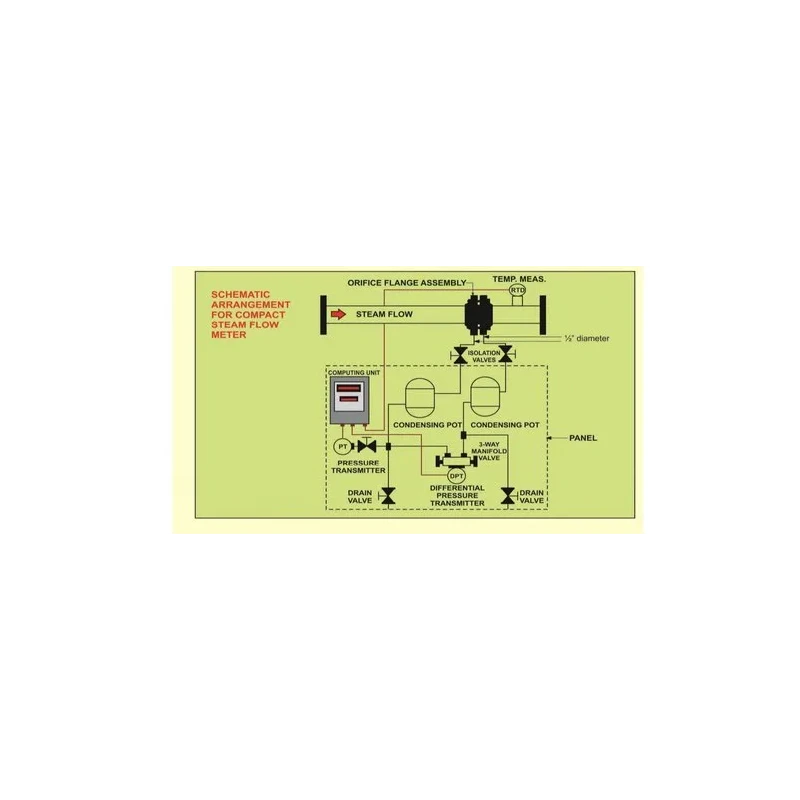

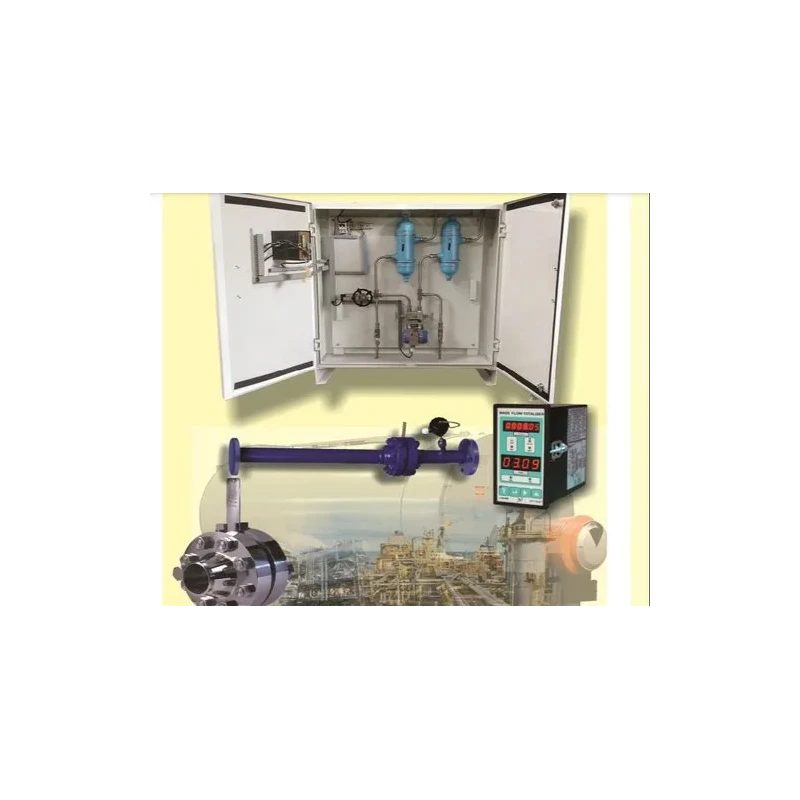

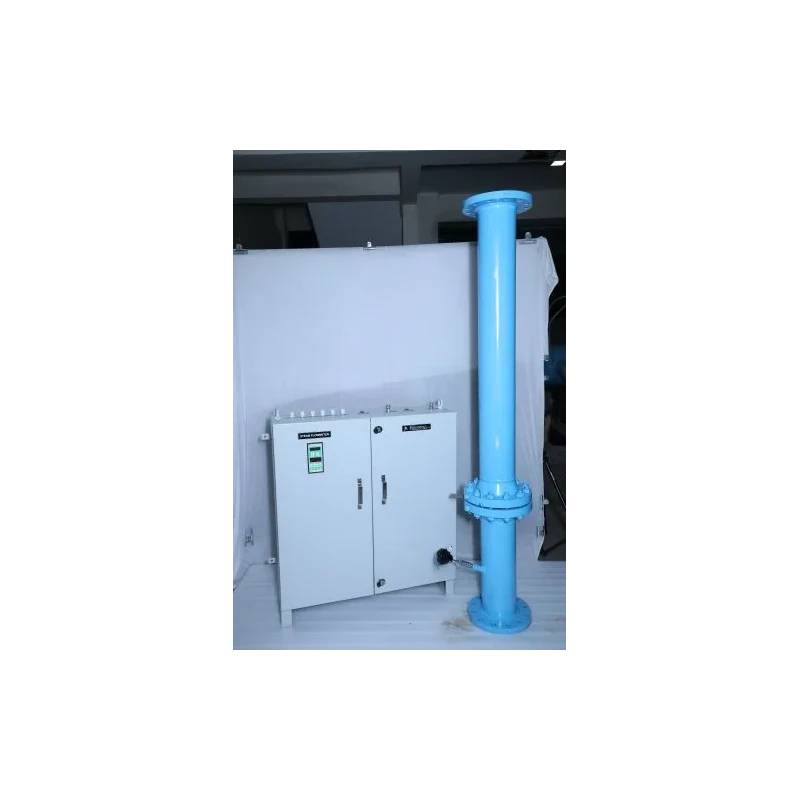

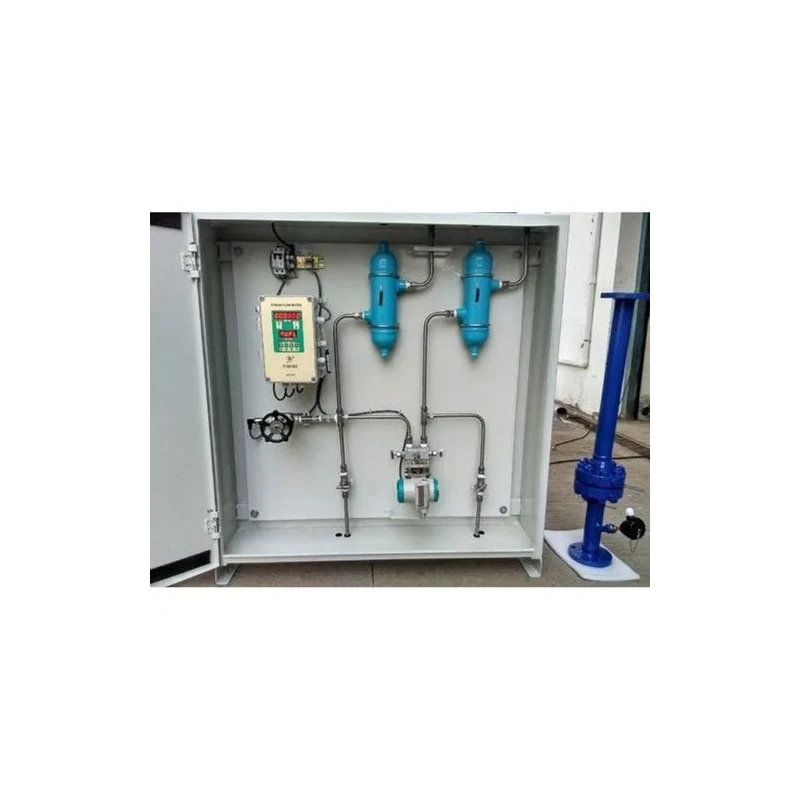

Manas SFMc-150 Steam Flow Meter, Steam flow meters are helpful in evaluating the performance of the system and can provide useful data in assessing boiler performance, calculating boiler efficiency, and tracking the amount of steam required by the system. In some systems, steam flow meters provide a measurement signal for the boiler control system.Features of Steam Flow MeterEasy user-friendly programmingPassword protected for all modes except display modeComputer/Printer Interfacing with RS 232/RS 485 port with MODBUS RTUFault indication indicated by different error codesOverflow indicated by blinking display up to 3000 readings (for more readings consult factory)Data logging facility with 3450/ 6900 number of reading is availableLinear or square root operationUniversal power supplySuitable for Saturated &/or Superheated SteamTwo-alarm setting configured on pressure inputSteam status indication (Saturated/ Superheated)Pressure and temperature offsets generated by site condition can be compensatedMass flow calculation as per ASME algorithmComparison with Vortex Flow MeterParameterOrificeVortexWell established standardsAvailableNot AvailableSuitability for high pressure & temperature application.Most suitableSeal fails in the majority of cases after the certain durationInstallationEasy to installCritical & expensive because of Requirement of specially machined pipe lengths.Existing pipeline modifications for installationNo modifications required.The design is based on velocity & not on line size. As a result, customer line size & selected flow meter size may differ.Recalibration of transmitterEasy & can be done in-houseHas to be done on a flow-rig and hence is expensive

• Data logging facility available
• Suitable for thermic fluids
