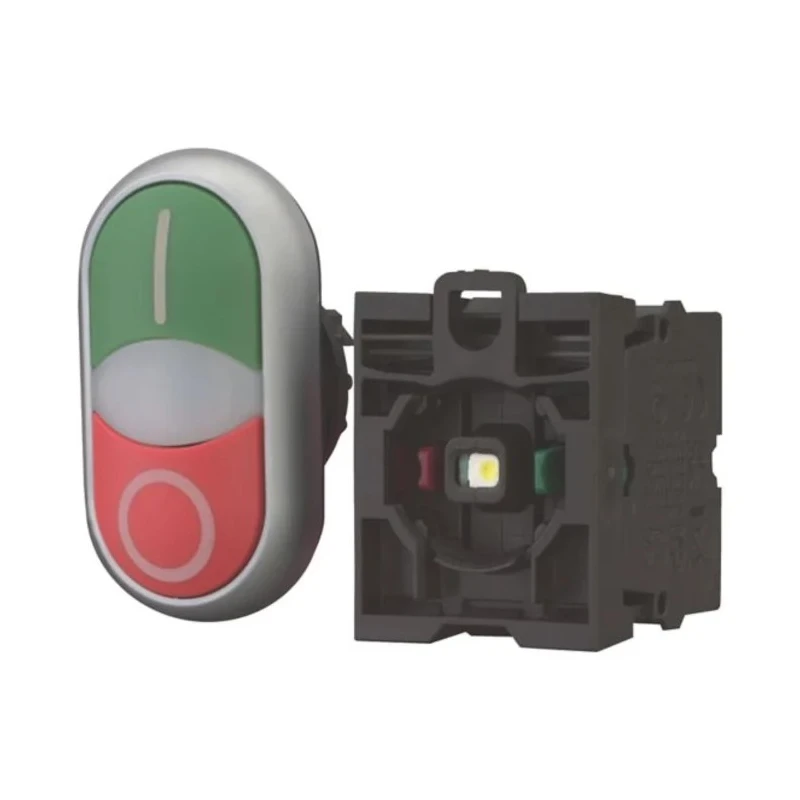

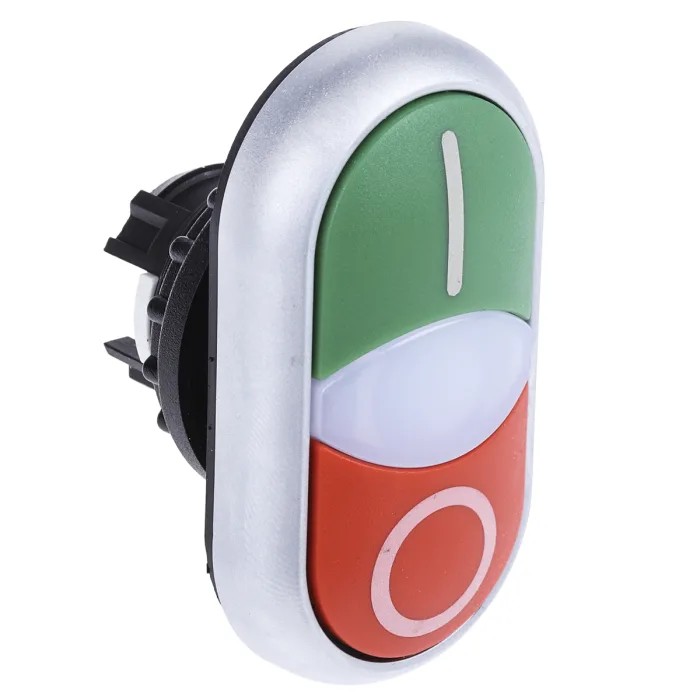

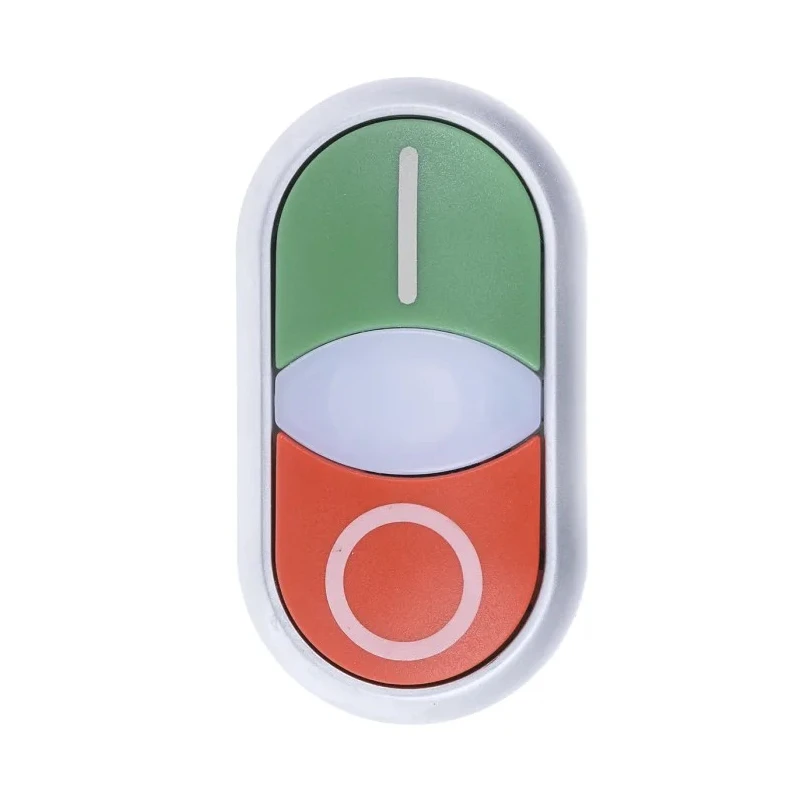

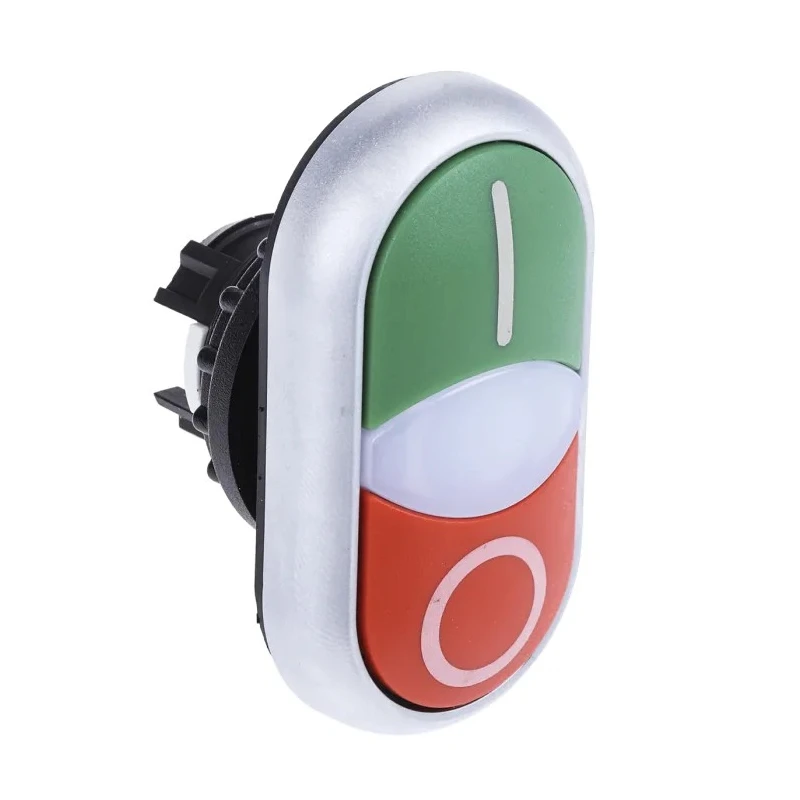

Eaton RMQ Titan M22 Series Green, Red Double Momentary Oval Illuminated Push Button Head 78635825 M22-DDL-GR-X1/X0+M22-A

Eaton 78635825 M22-DDL-GR-X1/X0+M22-A is a high-quality double momentary push button head from the RMQ Titan M22 Series, designed for industrial and automation applications requiring reliable manual control interfaces. Featuring brightly coloured green and red oval illuminated buttons, it allows for intuitive operation with universal ON and OFF symbols enhancing user clarity. The push button head integrates a built-in status indicator light to provide immediate visual feedback on operational status.

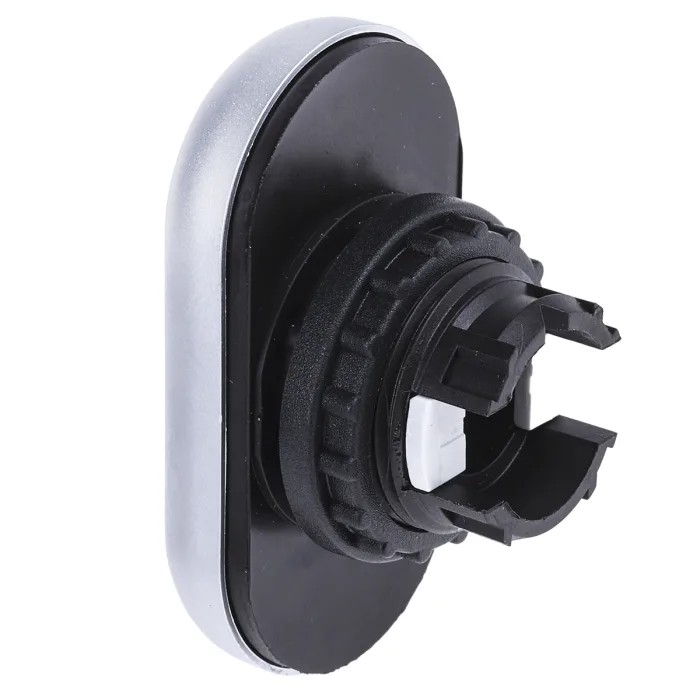

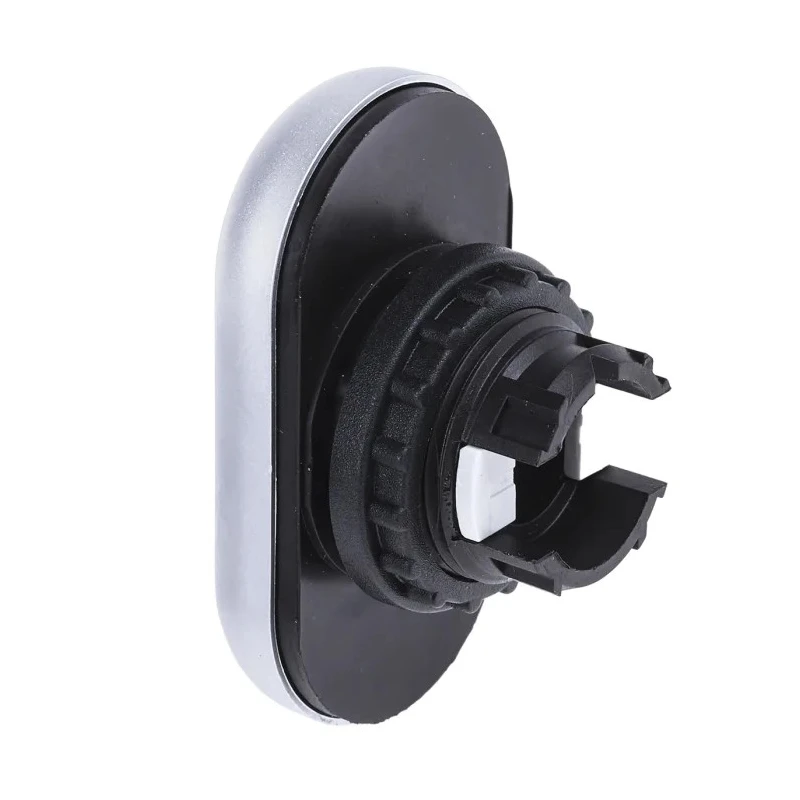

Constructed from robust plastic material, it offers excellent corrosion resistance ensuring durability in harsh industrial environments. Its IP66 rating certifies dust-tight construction and protection against powerful water jets, making it suitable for indoor and outdoor use under demanding conditions. The push button head includes the fixing collar for easy and secure panel mounting in a standard 22mm cutout diameter.

The device operates by momentary actuation: the button activates the connected equipment only while pressed and returns automatically to its normal position via a spring mechanism. This ensures safe and precise control in various manufacturing, electrical, and automation settings.

Meeting international standards such as IEC 60068-2-78, IEC/EN 60529, IEC/EN 60947-5, UL 508, CE, and CSA-C22.2 No. 14-05, this push button head guarantees compliance with stringent safety and quality requirements. With a broad operating temperature range from -25°C to +70°C, it withstands extreme environmental conditions.

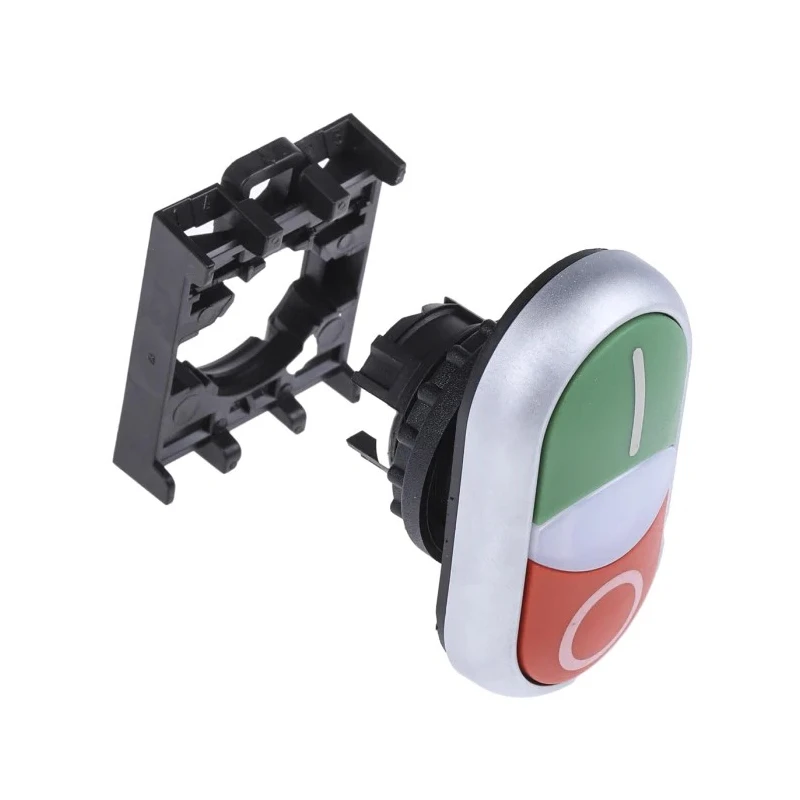

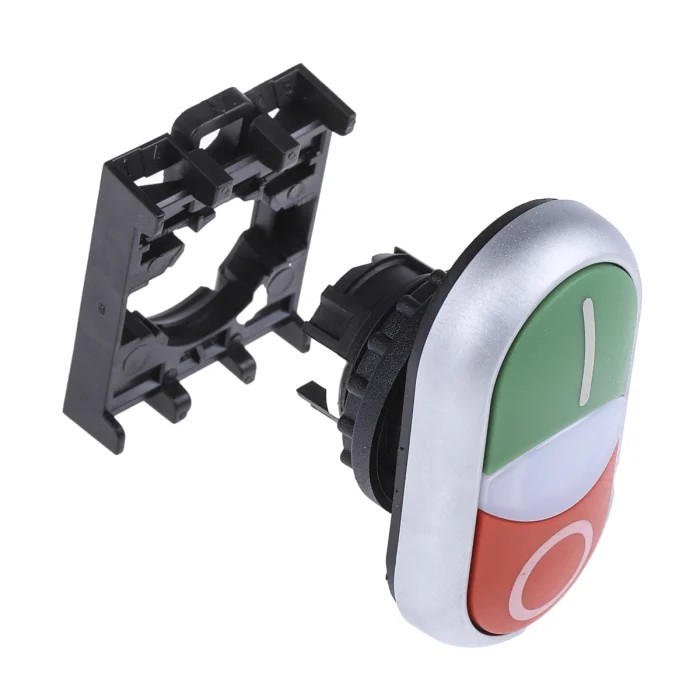

This Eaton unit fits seamlessly with M22 series adapters and contact blocks and integrates with SmartWire-DT single cable systems for simplified electrical wiring. The product is manufactured in Germany, ensuring high manufacturing standards and reliability.

Applications include industrial automation control panels, electrical machine start/stop controls, HVAC systems, manufacturing equipment interfaces, and laboratory instrumentation controls.

The push button head features green and red coloured buttons for clear operational indication. It is constructed from durable plastic material providing corrosion resistance. Designed to meet multiple standards including IEC 60068 and UL 508 for safety and reliability.

The unit includes a body fixing collar and has a diameter of 54.7mm for secure mounting. It operates via momentary actuation with a spring return functionality. Its IP66 rating ensures protection against dust and powerful water jets from all directions.

The product supports a broad temperature range from -25°C to +70°C suitable for challenging industrial environments. Compatible with M22 series adapters and contact blocks for versatile installation. Explore the range of Eaton Push Button Heads and electrical components on EnvMart for quality solutions in industrial automation and control.
