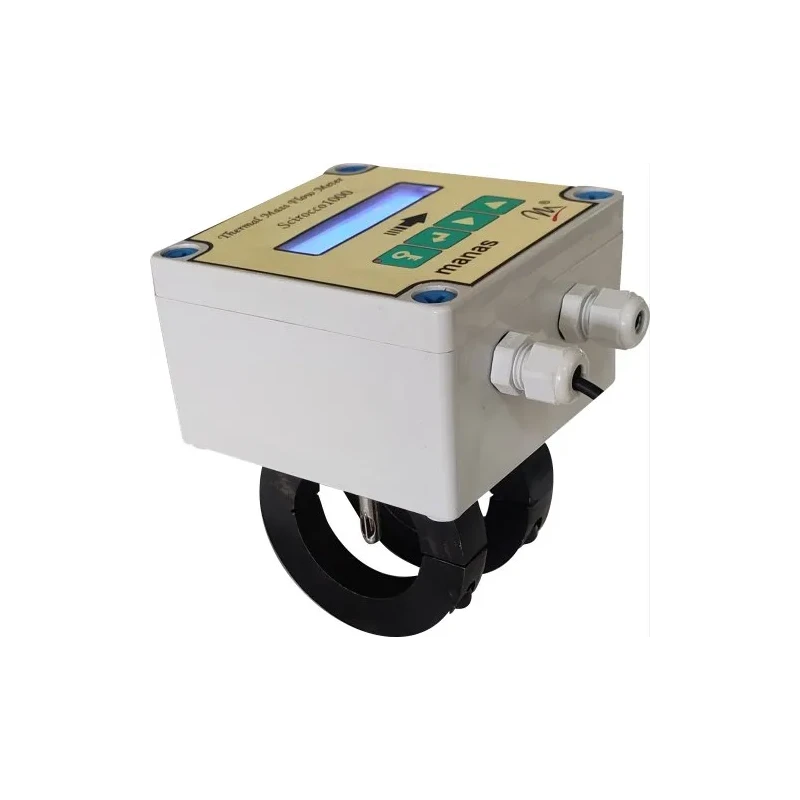

Manas Compressed Air Flow Meter Scirocco 1000-1
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | +- 3 % of Actual Flow Rate between 100 % to 10 % of Flow Rate |
| Display | Digital |
| Output | 4-20 mA/RS 485PulseWireless Data Transfer. Wireless Data transfer |
| Power Supply | 24 Vdc/150mA |
| Model | Scirocco 1000-1 |
| Ingress Protection | IP 65 for Transmitter |
| End Connection | Flange/BSP(M) Threading/ Direct clamp mounting |
| Flow range | 5 m/s to 100 m/s max (at NTP Condition) |
| Application Media | Dry & Clean Air or Dry & Clean Compressed Gases |
| Line Size | DN20 to DN50 (For others consult factory). |
| Operating Ambient Temperature (ºC) | 0 - 50 Degree C |
| Service Fluid | Dry & Clean compressed Air / Gas. |
| Operating Fluid Pressure | 12 Bar Max |
| Temperature Drift at Ambient Temp | 0.008 % / DegreeC maximum of Full Scale in the range 0 to 60 DegreeC |
| Scirocco 1000-1 | Sensor and transmittercan be mounted directly on service pipe with clamps provided |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Compressed Air Flow Meter Scirocco 1000-1, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.FeaturesDirect measurement of mass flow. No pressure or temperature compensation required20:1 turndown.Wireless data transfer possible. Remote readings available on wireless.Pulse, milliamps or RS485 output for networking
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow range is from 5 m/s to 100 m/s at NTP conditions.
The accuracy is ± 3% of the actual flow rate between 100% to 10% of the flow rate.
It is designed for dry and clean air or dry and clean compressed gases.
The maximum operating fluid pressure is 12 Bar.
It requires a power supply of 24 Vdc at 150 mA.
It is compatible with line sizes from DN20 to DN50; for other sizes, consultation with the factory is recommended.
The flow meter features a digital display.
The transmitter has an ingress protection rating of IP 65.
It can be mounted directly on the service pipe using clamps provided, and it also supports flange/BSP(M) threading.
The operating ambient temperature range is from 0 to 50 degrees Celsius.
Yes, it supports wireless data transfer and allows for remote readings.
The temperature drift is 0.008% per degree Celsius maximum of full scale in the range of 0 to 60 degrees Celsius.
