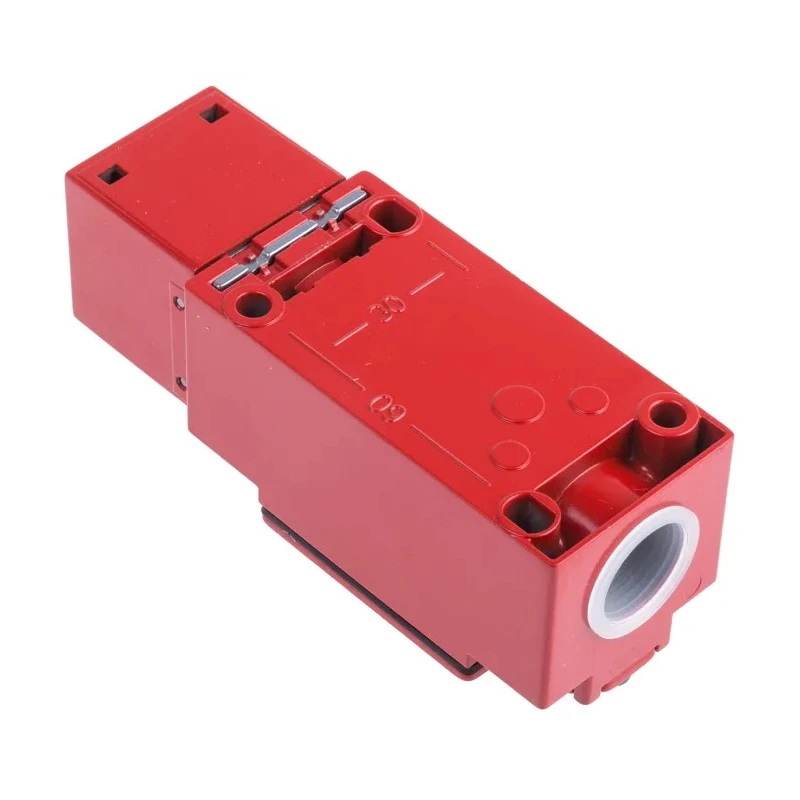

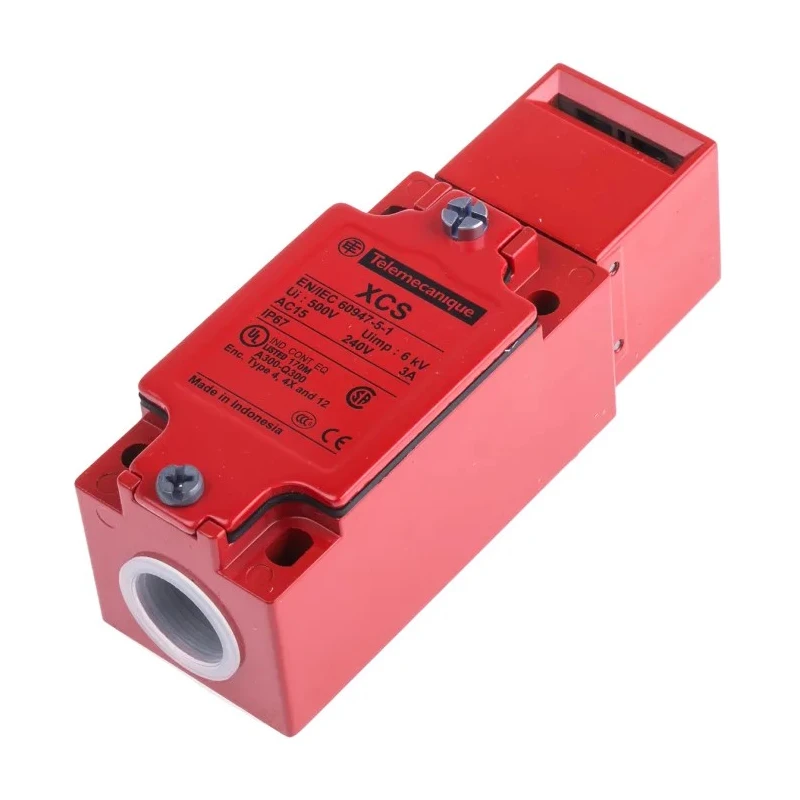

Telemecanique Sensors Safety Interlock Switch with Keyed Actuator, Zinc Alloy Housing, IP67, 3 NC Contacts XCSA801

Telemecanique Sensors XCSA801 Safety Interlock Switch is engineered for industrial automation and safety applications requiring reliable guard locking mechanisms.

Featuring a keyed actuator included in the package, it provides positive locking of guards to prevent accidental access during machine operation. The zinc alloy housing delivers robustness and mechanical strength, suitable for harsh environments.

This switch includes 3 normally closed safety contacts which open positively when the guard is accessed, ensuring immediate cut-off of hazardous energy. It supports DC voltages up to 250V and AC voltages up to 240V with a switch contact current rating of 6A, maintaining safe operational limits.

The switch's IP67 enclosure rating affords complete protection against dust ingress and water immersion, making it ideal for demanding industrial, manufacturing, and automation settings. It operates reliably within a temperature range of -25°C to 70°C.

Turret-style heads can be rotated through a full 360 degrees in 90-degree steps with 8 actuator entry points and 1 tapped entry, enabling flexible installation and actuation directions.

Compliance with multiple international safety and performance standards such as EN/IEC 60529, ISO 14119, EN/ISO 12100, UL 508, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, and CSA ensures that the product meets stringent safety and operational criteria for global industrial markets.

The built-in third contact is dedicated to diagnostics, improving safety system monitoring and productivity by providing early detection of guard status changes. Applications include factory automation, machinery safety interlocks, and process control where secure, reliable safety switch operation is critical.

Package includes the Safety Interlock Switch with keyed actuator. Actuators are included; other accessories and installation hardware may be ordered separately.

Explore the Electronics & Electricals category at EnvMart for more industrial safety components and switch solutions designed to meet your automation and safety system requirements.

The switch includes 3 normally closed (NC) safety contacts for positive opening on guard opening. It provides an IP67 rating ensuring protection against dust and water ingress. The actuator is included to enable interlock functionality and secure guard locking.

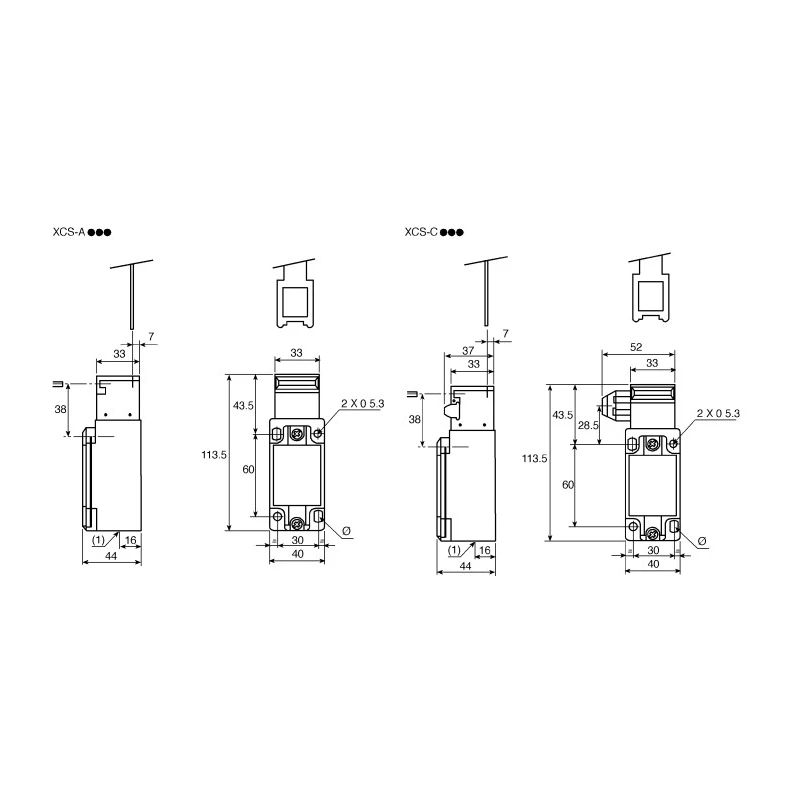

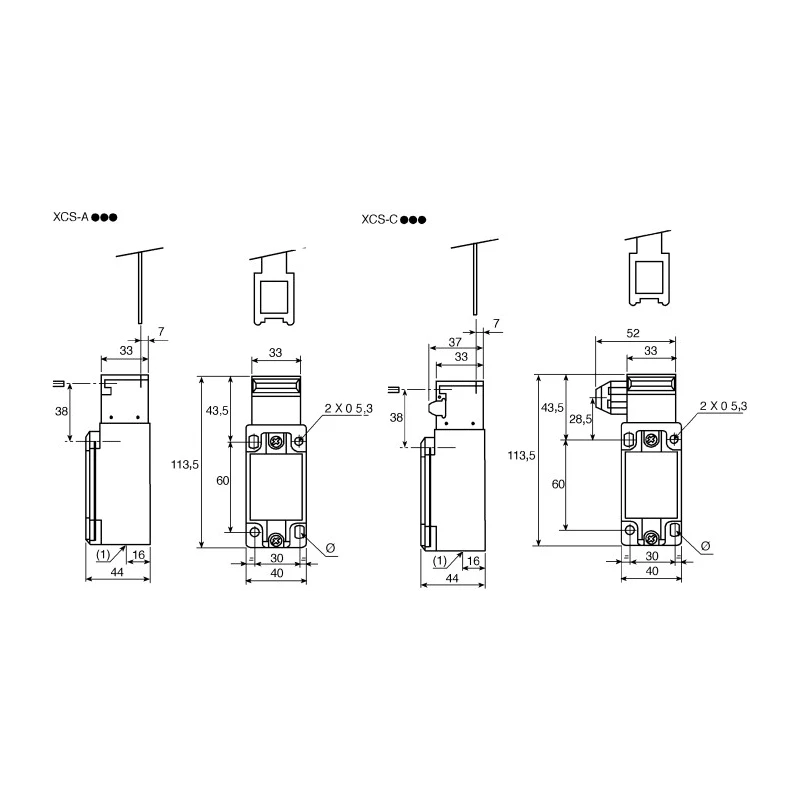

Designed for a wide operating temperature range of -25°C to 70°C. The device supports contact voltages of up to 250V dc and 240V ac with a switch contact current of 6A. The compact size includes dimensions of 113.5mm length, 44mm depth, and 40mm width.

It allows up to 8 head directions with turret heads rotated through 360° in 90-step increments. Certified to multiple international standards including EN/IEC 60529 and ISO 14119. The zinc alloy housing ensures heavy-duty durability in harsh industrial environments.

The third contact dedicated to diagnostics enhances productivity and safety monitoring.
