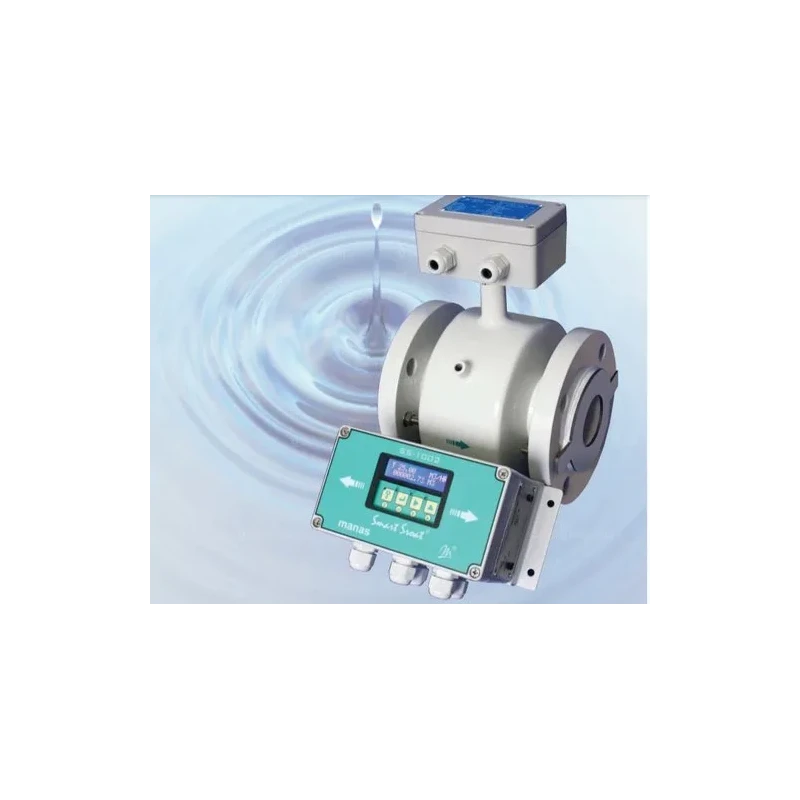

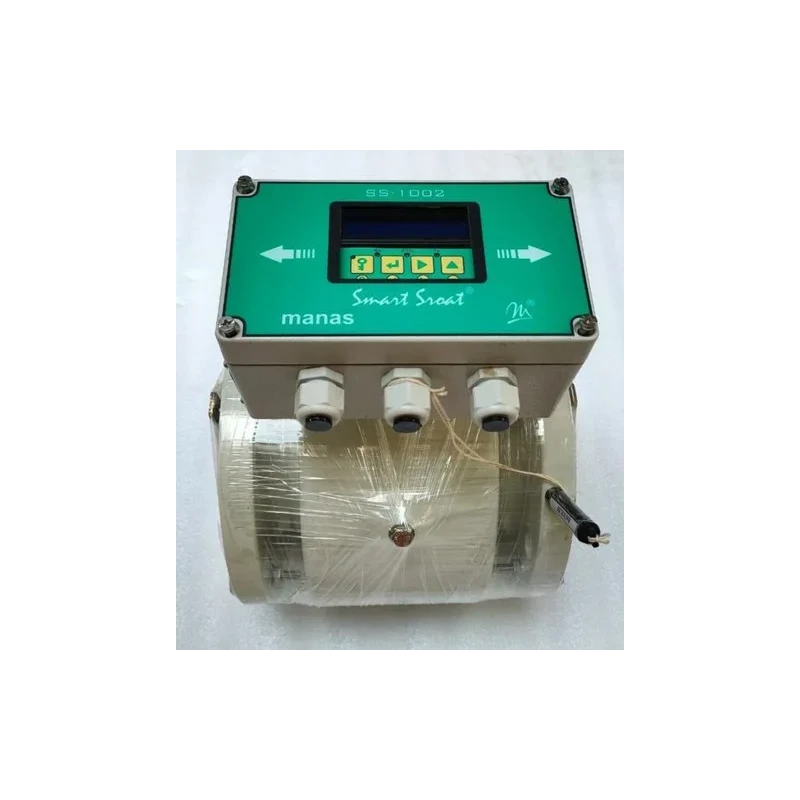

Manas Electromagnetic Flow Meter with Telemetry System SS1002
Specifications
| Display | Digital |
|---|---|
| Power Supply | 85V to 265V AC 50Hz |
| Applications | ETP |
| Operating Temperature | 0-50 deg C |
| Humidity | 90% of R.H. Maximum non-condensing |
| Pipe Material | SS 304 (Non magnetic) |
| Model | SS1002 |
| Application Media | Water |
| Meter | DN 10 |
| Coil Housing Material | MS |
| Temperature Drift | 0.015%/deg C maximum of full scale |
| Operating Ambient Temperature (ºC) | 0-60 deg C |
| Sensing measuring electrodes | 2 |
| Earth electrodes | 1 |
| Empty tube electrodes | 1 |
| Flange Material | MS |
| Connection Flanged | end |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Electromagnetic Flow Meter with Telemetry System, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the Manas Electromagnetic Flow Meter is 0 to 50 degrees Celsius, while the operating ambient temperature can reach up to 60 degrees Celsius.
This model is designed to measure the flow rate of conductive fluids, specifically water.
The power supply requirement for this model is 85V to 265V AC at 50Hz.
The pipe material is SS 304, which is non-magnetic, and the flange material is made of mild steel (MS).
This unit features two sensing measuring electrodes, one earth electrode, and one empty tube electrode.
The flow meter is equipped with a digital display for easy reading of measurements.
The maximum humidity level for operation is 90% relative humidity, non-condensing.
The temperature drift for this model is 0.015% per degree Celsius maximum of full scale.
The connection type for this model is flanged at the end.
This flow meter is suitable for applications in Effluent Treatment Plants (ETP).
The meter size for the SS1002 model is DN 10.
The coil housing material for this model is made of mild steel (MS).
