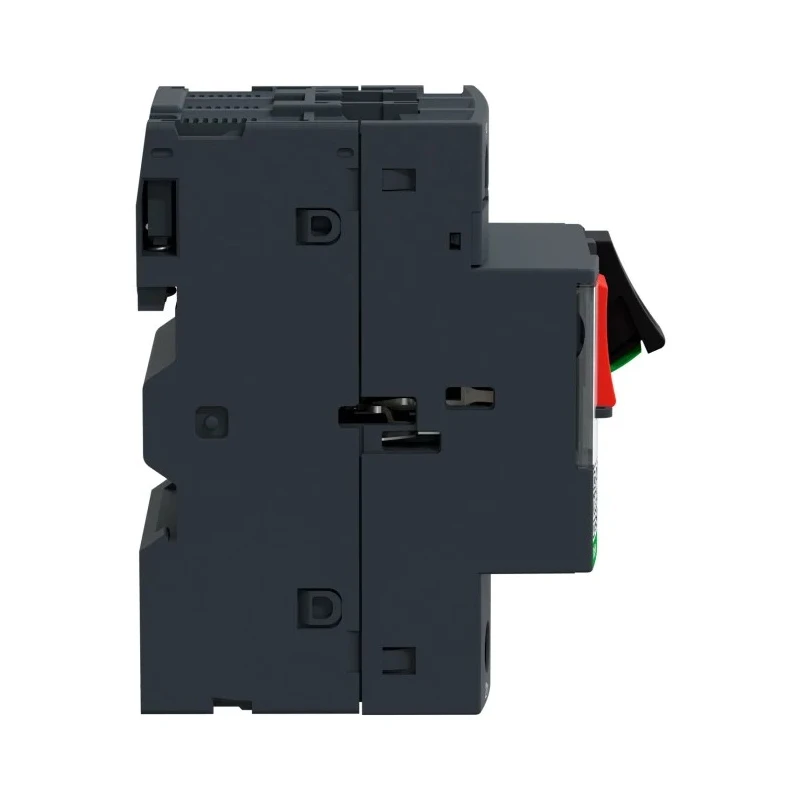

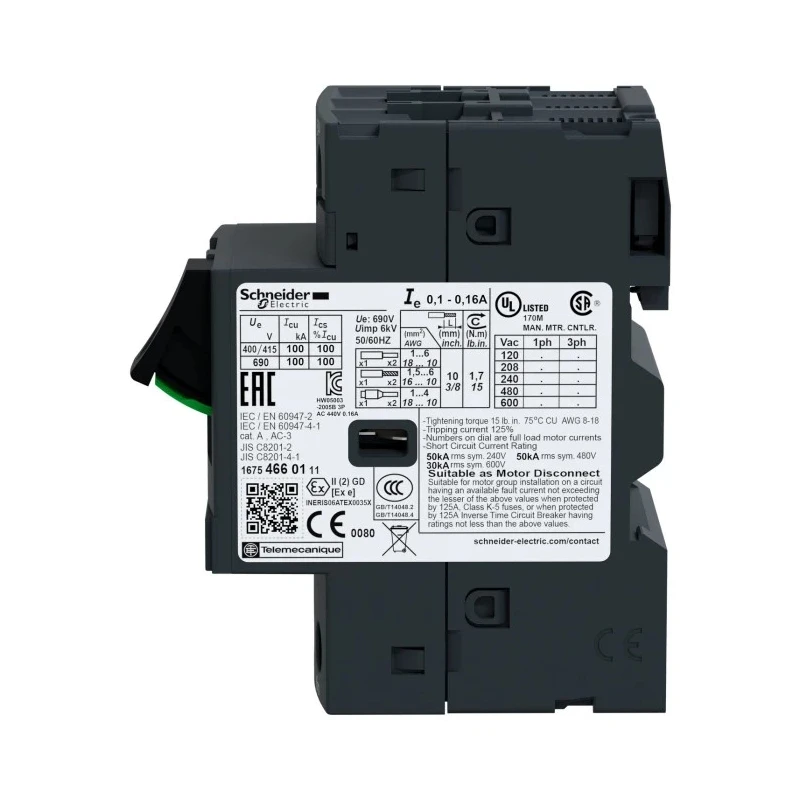

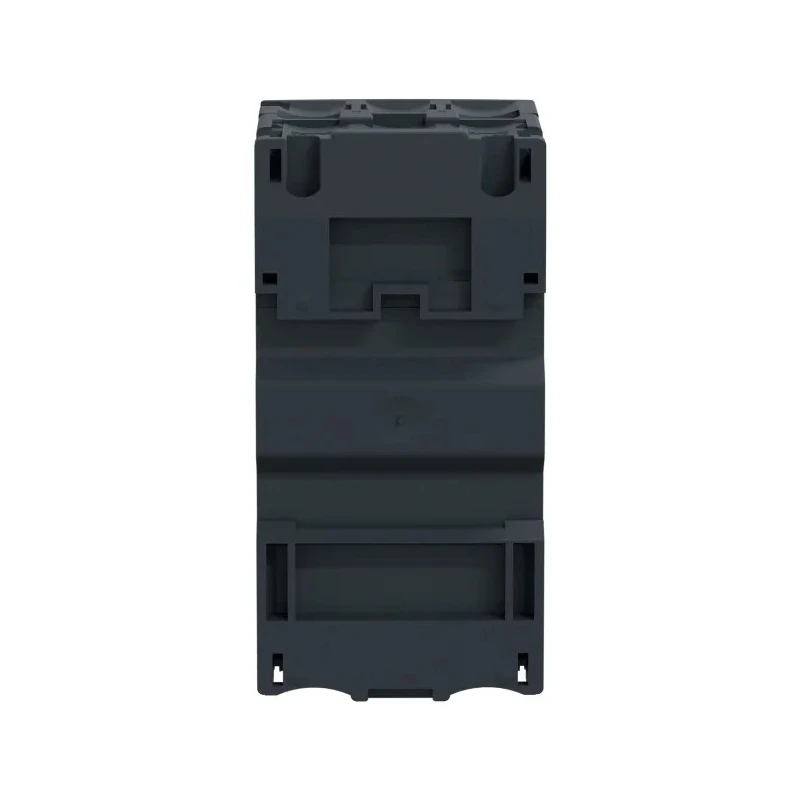

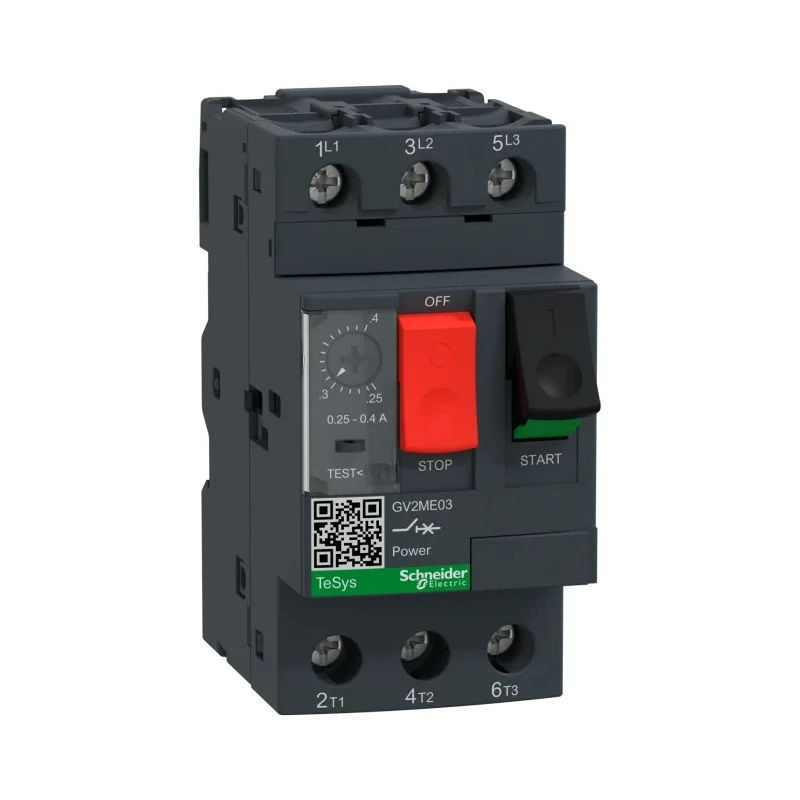

Schneider Electric Motor Protection Circuit Breaker 250mA-400mA, Thermal Magnetic, 690V, 3-Pole, IP20, -20°C to 60°C GV2ME

Schneider Electric GV2ME03 Motor Protection Circuit Breaker is a high-performance device engineered to safeguard motors in industrial and electrical applications. This thermal magnetic circuit breaker features a 3-pole design, providing superior thermal and magnetic protection for motors operating from 250mA to 400mA current range and a supply voltage up to 690V. Its compact dimensions (89mm height, 45mm width, 78.5mm depth) allow efficient use of control panel space while ensuring robust protection.

Equipped with screw clamp terminals, the device simplifies installation and maintenance, making it suitable for a variety of industrial environments. Rated with an IP20 protection class, it protects internal components from solid foreign objects ensuring safety and reliability. The motor protection breaker operates effectively in wide temperature ranges from -20°C to +60°C, making it versatile for different climatic conditions.

This circuit breaker features a high breaking capacity of 100kA, offering reliable protection against short circuits and current overloads. It complies with multiple international certifications and standards such as IECEE CB, UL, RINA, REACH/RoHS, EN/IEC 60947-4-1, EN/IEC 60947-2, EAC, DNV GL, CSA, CCC, BV, and ATEX, guaranteeing its quality and safety in demanding applications.

Its three-pole configuration ensures balanced motor protection and disconnection during faults or overloads. The compact build allows easy installation on symmetrical DIN rails inside electrical control cabinets. This circuit breaker is ideal for industrial motor protection applications, electrical panels, and environments with significant temperature variations that require sturdy motor disconnect devices.

Designed for motor protection with thermal magnetic trip units. High breaking capacity of 100kA for enhanced short circuit safety. Compact dimensions optimize panel space requirements. Screw clamp terminals allow straightforward installation and maintenance.

Operates reliably across a broad temperature range (-20°C to 60°C). Compliant with multiple international standards for industrial safety. Ideal for mounting on symmetrical DIN rails in electrical control cabinets. Supports three-pole configuration for effective motor disconnection.

This Schneider Electric GV2ME03 Motor Protection Circuit Breaker is essential for ensuring motor safety and operational reliability within electrical and mechanical industrial sectors. Explore EnvMart’s selection of electrical protection devices and Schneider Electric products to meet diverse industrial automation needs.
