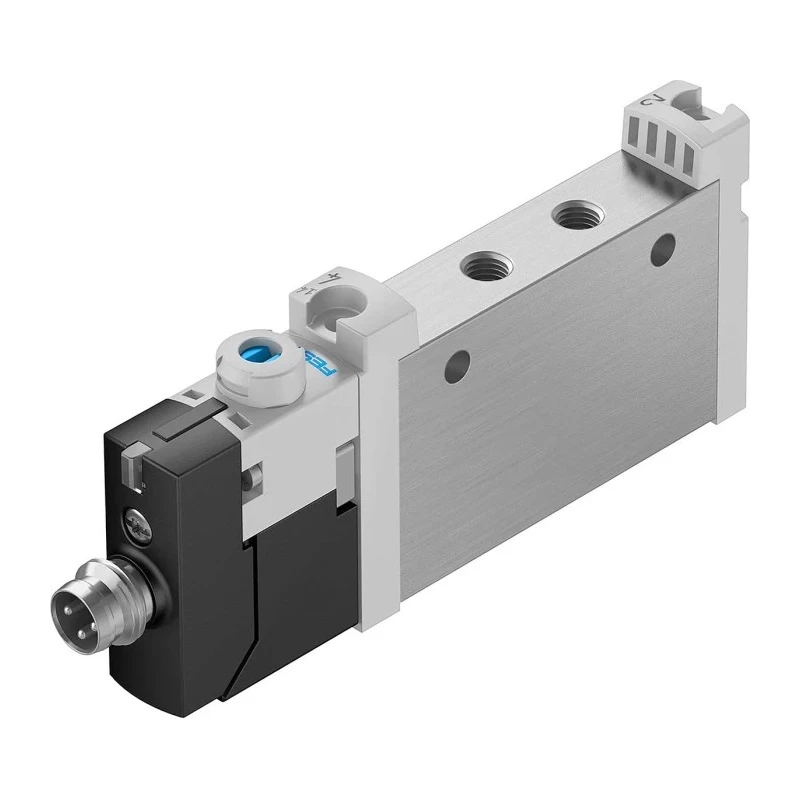

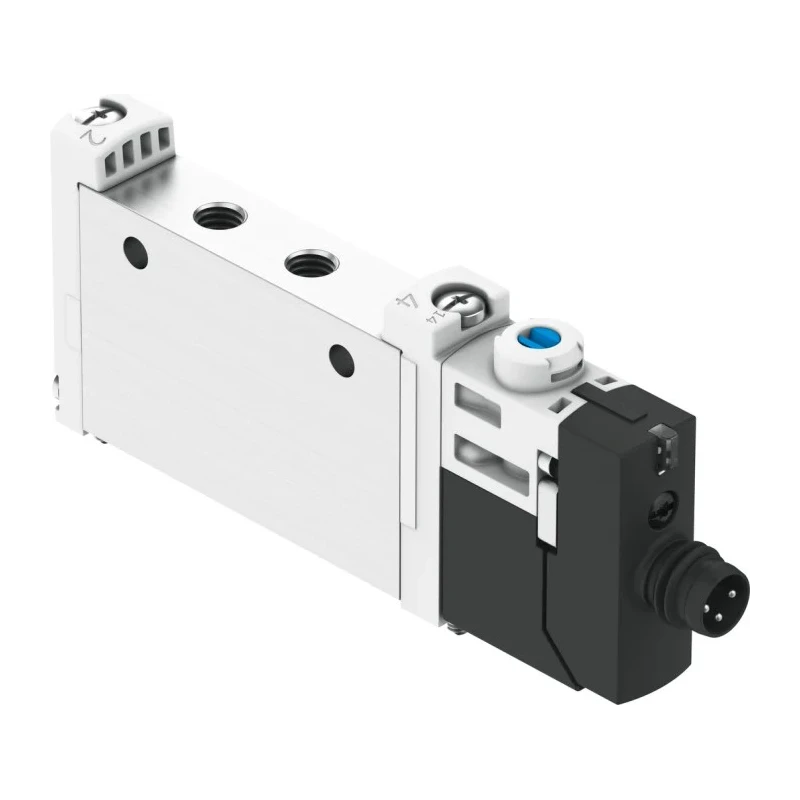

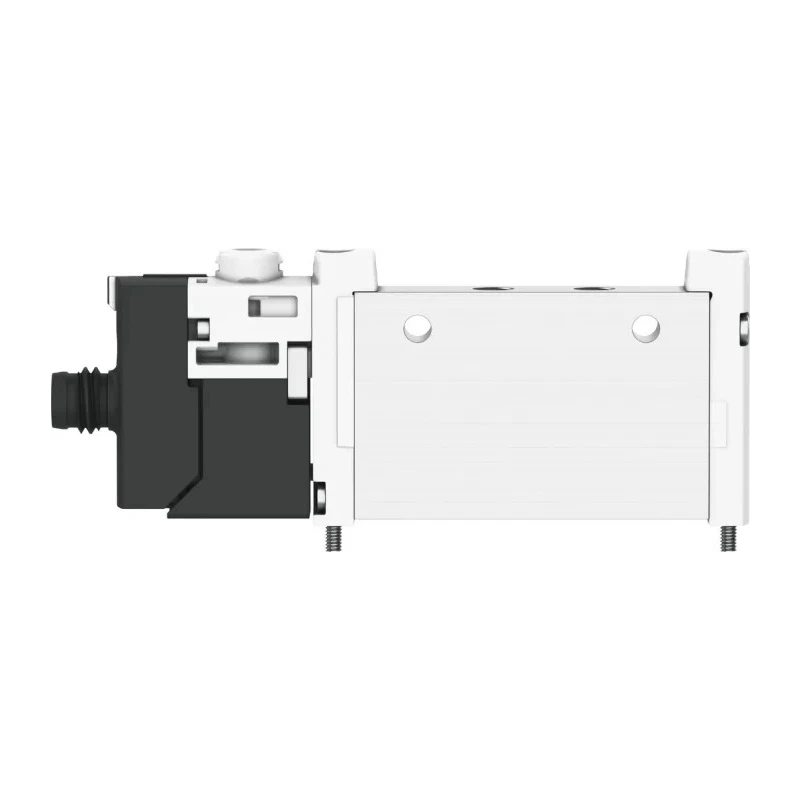

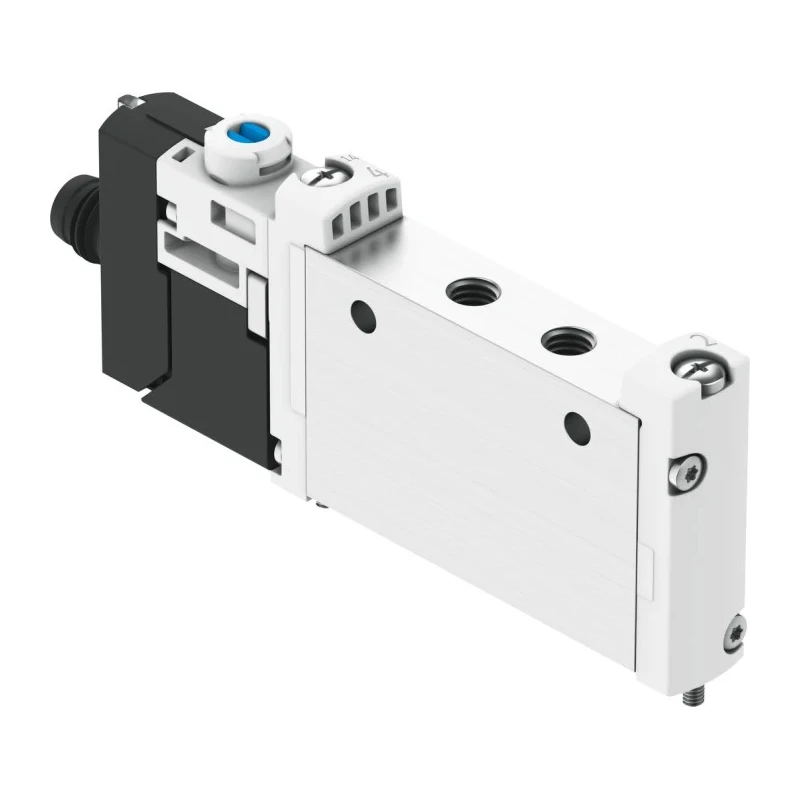

Festo 5/2 Solenoid Valve, Metric Port M5, 24V DC, Aluminium Alloy Body, VUVG-L10-M52-RT-M5-1R8L

Festo VUVG-L10-M52-RT-M5-1R8L is a high-performance 5/2 solenoid valve designed for pneumatic automation requiring precise control of airflow. This valve features a compact in-line mount design with metric M5 port connections, facilitating easy integration in various pneumatic systems.

The valve body is constructed from robust aluminium alloy offering excellent durability and corrosion resistance. It operates on a 24V DC power supply, consuming only 1 watt, and utilizes a single solenoid for actuation which enables reliable switching between the two valve positions.

Its operating temperature range spans from -5°C to +60°C, making it well-suited for challenging industrial environments. The valve supports a maximum operating pressure of 8 bar, with a pilot operating pressure range of 2.5 to 8 bar, allowing for efficient performance in low-pressure pneumatic tasks.

With 5 ports and 2 positions, the 5/2 valve functionality allows it to control the airflow to two chambers independently, giving complete control over pressurization and exhaust functions in pneumatic equipment. The valve also provides a substantial maximum flow rate of 220 L/min to power demanding applications.

The nitrile rubber (NBR) seals ensure resistance against contaminants, contributing to the valve's reliability and long service life. When installed, it is rated IP65, offering protection against dust ingress and low-pressure water jets from all directions.

Its manifold block electrical connection type simplifies system wiring while the lightweight 45-gram design reduces load stresses on connected infrastructure. This makes it ideal for dynamic industrial applications requiring frequent cycling at 100% duty cycle.

Compact mechanical dimensions with a width of just 10 mm. Compatible with a wide range of industrial automation, medical equipment, oil and gas, and packaging plant applications. Certified to RoHS and cULus standards for compliant and safe operation.
