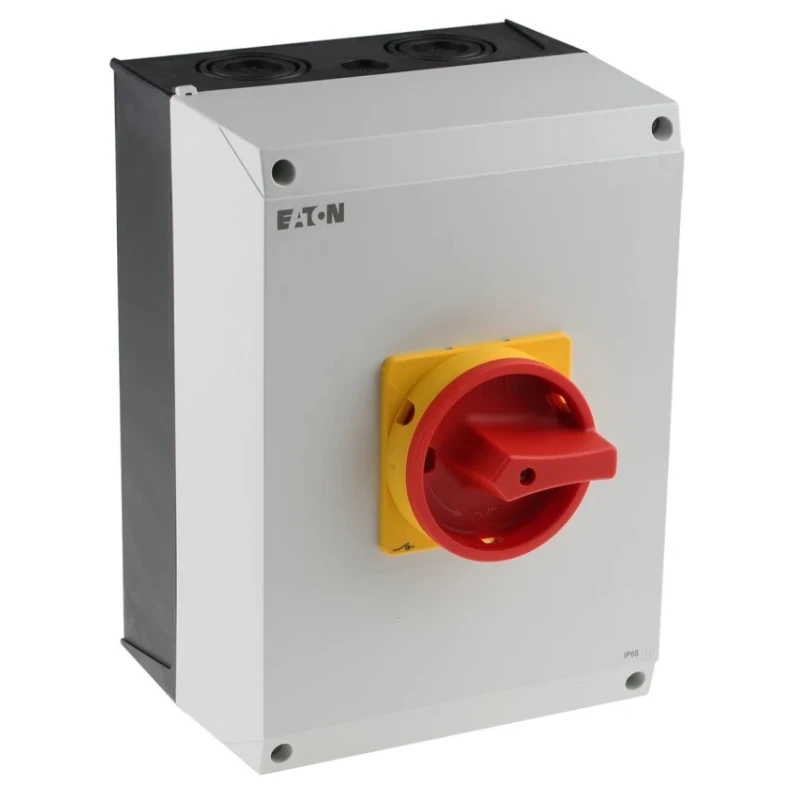

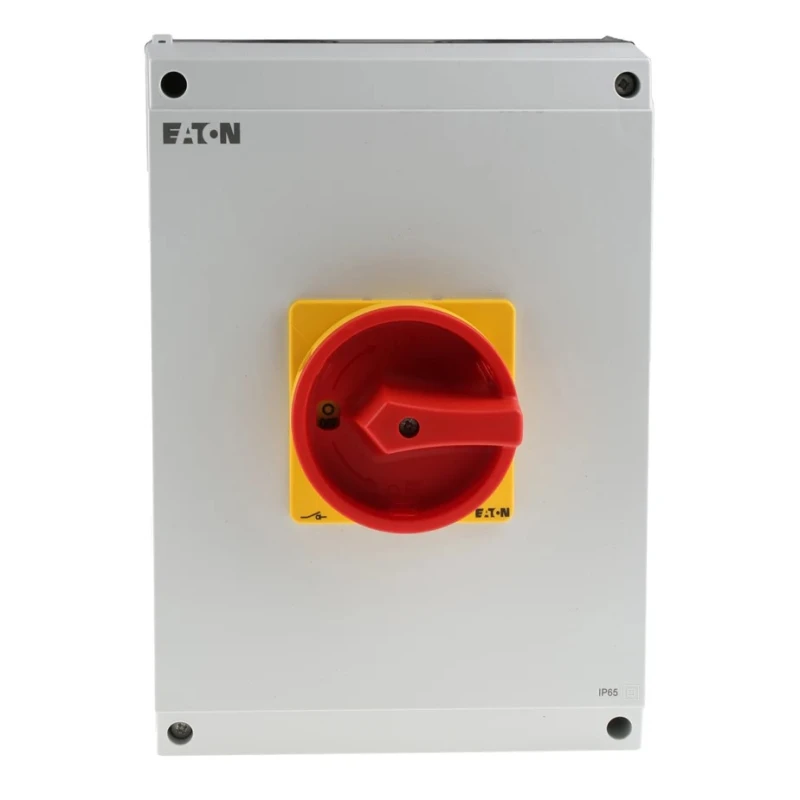

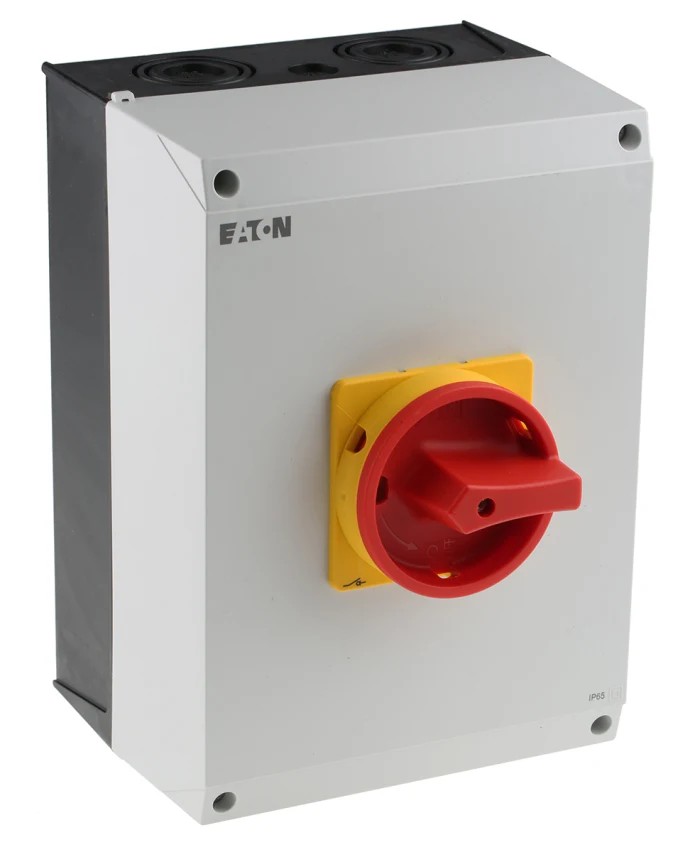

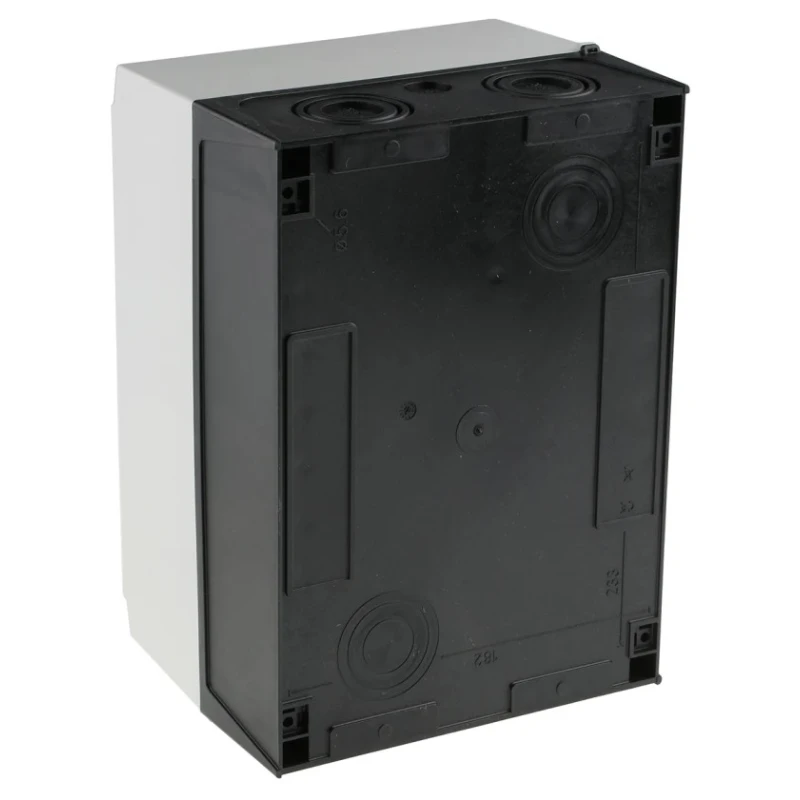

Eaton 6-Pole Surface Mount Non-Fused Isolator Switch 3 Phase, IP65, 760A, 30 kW T5-4-15682/I5/SVB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Length | 280mm |
| Model | IP65 |
| Depth | 125mm |
| IP Rating | IP65 |
| Width | 200mm |
| Mount Type | Surface Mount |
| Series | T54 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 760A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Red |
| Number of Poles | 6 |
| Standards/Approvals | CSA, IEC, UL |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 230V ac |
| Switching Power | 30kW |
| The basic functions | used as a main switch, maintenance switch or manual override switch |
| 85A, 6P, CAM SWITCHBrand | NEUTRAL |
Key Features
- Surface mount design for convenient installation and ease of access.
- IP65 rated enclosure provides dust tight protection and water resistance from low-pressure jets.
- Rated for 760A switching current and 30kW power capacity.
- Suitable for 3-phase electrical applications with 6 poles for comprehensive circuit control.
- Red rotary handle and yellow locking ring enable clear visual indication and lockable OFF position.
- Thermoplastic, impact and corrosion-resistant enclosure ensures durability in harsh environments.
- Operational temperature range from -25°C to +40°C for varied industrial conditions.
- Certified to CSA, IEC, and UL standards ensuring reliable compliance and safety.
Product Description
Eaton T5-4-15682/I5/SVB 6-Pole Surface Mount Isolator Switch is a non-fused switch disconnector designed for safe and efficient isolation of electrical circuits during maintenance or emergency stops. Rated for 760A current and 30kW power, it supports 3-phase systems with a robust 6-pole configuration.
The isolator features a surface mount installation design with a thermoplastic enclosure that offers high impact resistance and corrosion protection. Its IP65 ingress protection rating ensures the product is sealed against dust ingress and can withstand water jets, making it ideal for industrial, manufacturing, and commercial applications where robust environmental protection is essential.
Equipped with a red rotary handle and yellow locking ring, the switch allows lockout in the OFF position, enhancing safety during maintenance. The device operates reliably within a temperature range from -25°C to +40°C and complies with CSA, IEC, and UL standards, guaranteeing high performance and compliance.
Additional features include built-in auxiliary contacts for signaling purposes and screw terminal connections ensuring secure electrical contacts. This isolator switch is commonly used in electrical panels, circuit breaker isolation, transmission line controls, and transformer maintenance.
Surface mounted for ease of installation and accessibility. IP65 certified for harsh environments requiring dust and water ingress protection. Lockable rotary handle for enhanced operational safety. High switching current capacity of 760A and switching power of 30kW.
Corrosion-resistant thermoplastic enclosure for longevity. Suitable for industrial, electrical, manufacturing, and water treatment applications. Certified to international standards including CSA, IEC, and UL. Auxiliary contacts available for additional control functions.
Supports 3-phase electrical systems with 6 poles.
Enhance electrical safety and control with this Eaton isolator switch, a high-performance solution for demanding industrial requirements. Browse more Isolator Switches and electrical components at EnvMart for your comprehensive electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The isolator switch is rated for a maximum switching current of 760A.
It has a power capacity of 30kW.
The dimensions are 280mm in length, 200mm in width, and 125mm in depth.
The switch has an IP65 rating, providing dust tight protection and water resistance from low-pressure jets.
It operates reliably within a temperature range from -25°C to +40°C.
It features a surface mount design for convenient installation and ease of access.
It is certified to CSA, IEC, and UL standards, ensuring reliable compliance and safety.
This model supports 3-phase electrical systems.
It is equipped with a red rotary handle and a yellow locking ring for clear visual indication and lockable OFF position.
The switch uses screw terminal connections to ensure secure electrical contacts.
It can be used as a main switch, maintenance switch, or manual override switch.
Yes, it includes built-in auxiliary contacts for signaling purposes.
