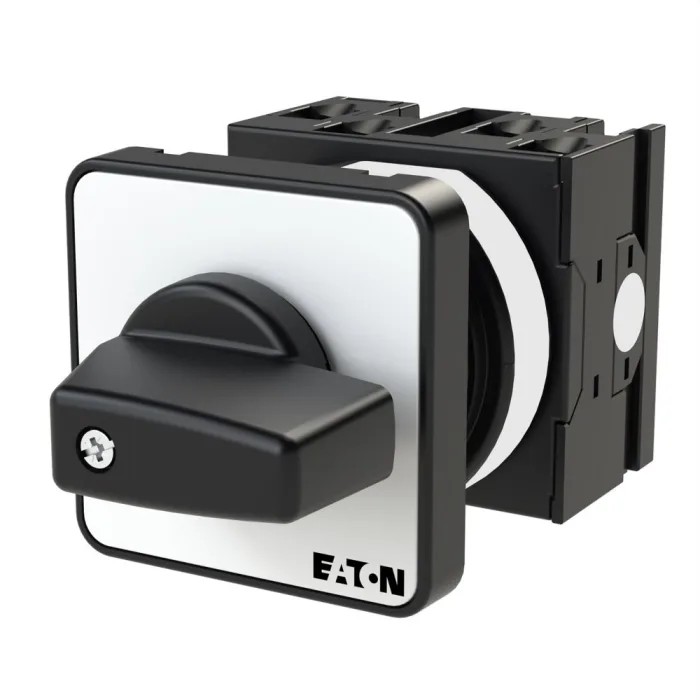

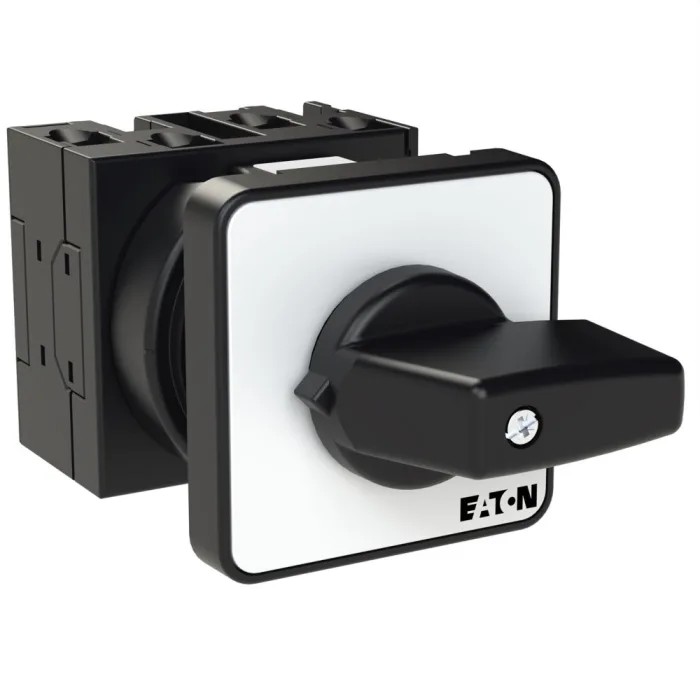

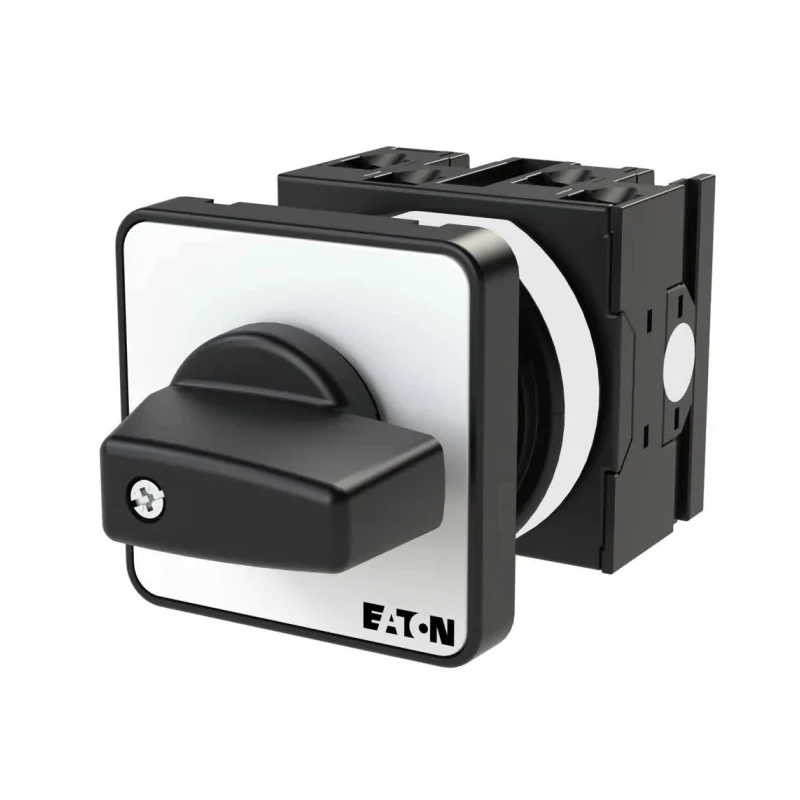

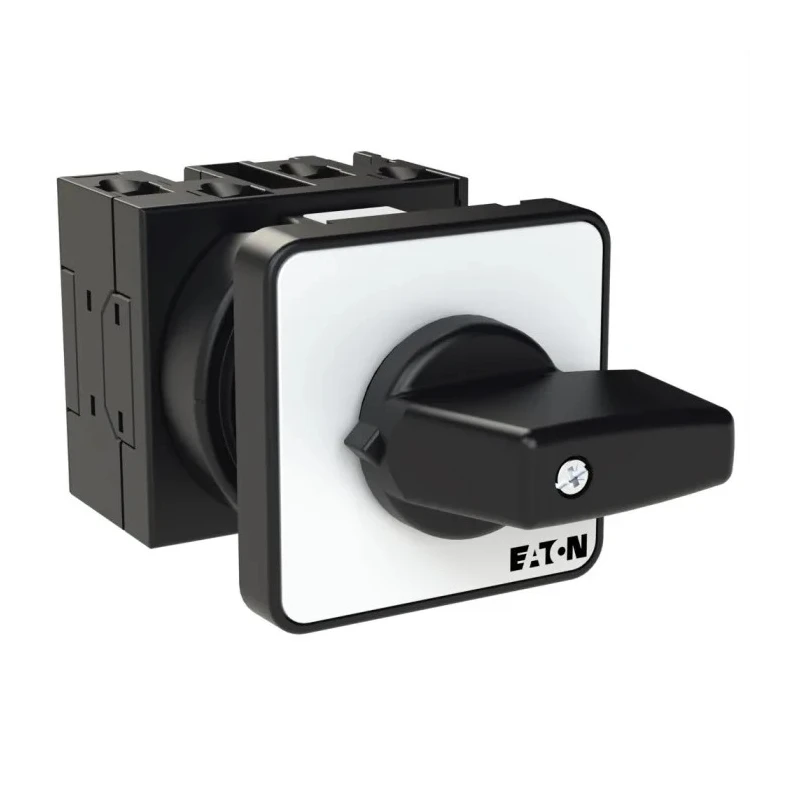

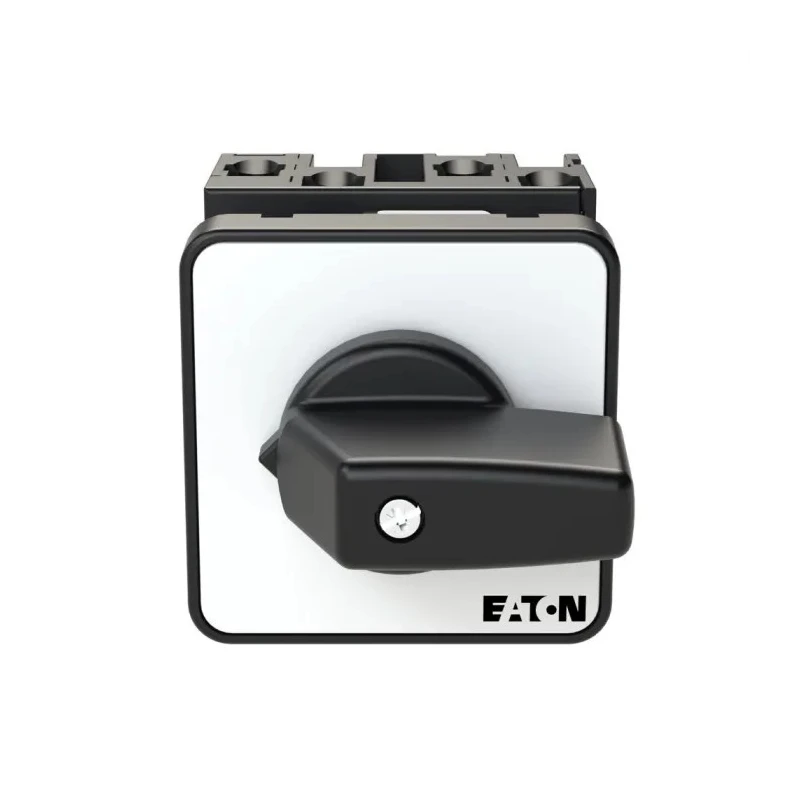

Eaton DPST Cam Switch 3 Position 45° Toggle Actuator 20 A 690V AC Flush Mount 022236 T0-2-8215/E

Eaton 022236 T0-2-8215/E Cam Switch is a robust DPST cam switch designed for electrical and automation control circuits. It features a 3-position toggle actuator with a 45° throw angle providing efficient and flexible switching performance. Rated for a contact current of 20A and contact voltage of 690V AC, it is ideal for demanding industrial panel and motor control applications.

This switch has a flush mount type with compact dimensions measuring 90mm in width, 48mm in length, and 48mm in depth. Its IP65 protection rating safeguards against dust ingress and water jets, making it suitable for harsh environments. The short thumb grip toggle actuator and screw terminal design facilitate easy and secure installation and manual operation.

With a mechanical life expectancy of 10 million operations and a temperature operating range from -25°C to +50°C, this Eaton cam switch stands out for durability and reliability. Certified to IECEx hazardous area standards and compliant with multiple international standards including IEC/EN 60204, IEC/EN 60947-3, UL, CSA, and VDE, it meets safety and quality requirements for industrial electrical installations.

Applications include automation control circuits, electrical panel installations, switchboards for mechanical equipment, and manual load switching in commercial and industrial settings. The DPST configuration offers dual pole switching for effective isolation and connectivity in circuits, enhancing operational safety and performance.

Set contains 1 Pc Eaton DPST 3-position Cam Switch with 45° toggle actuator, model 022236 T0-2-8215/E, suitable for robust industrial use cases. Designed for 20 amp current rating to handle high-demand applications. IP65 rating provides robust protection against dust and low-pressure water jets.

Short thumb grip toggle actuator ensures user-friendly operation. Screw terminal type simplifies installation and wiring tasks. Flush mounting type allows easy integration in panel setups. Operates reliably within temperature range of -25°C to 50°C.

Mechanical life rated for 10,000,000 operations ensuring durability. Compact dimensions of 90 x 48 x 48 mm for space-efficient installations. Suitable for electrical, automation and motor control applications in industrial environments.
