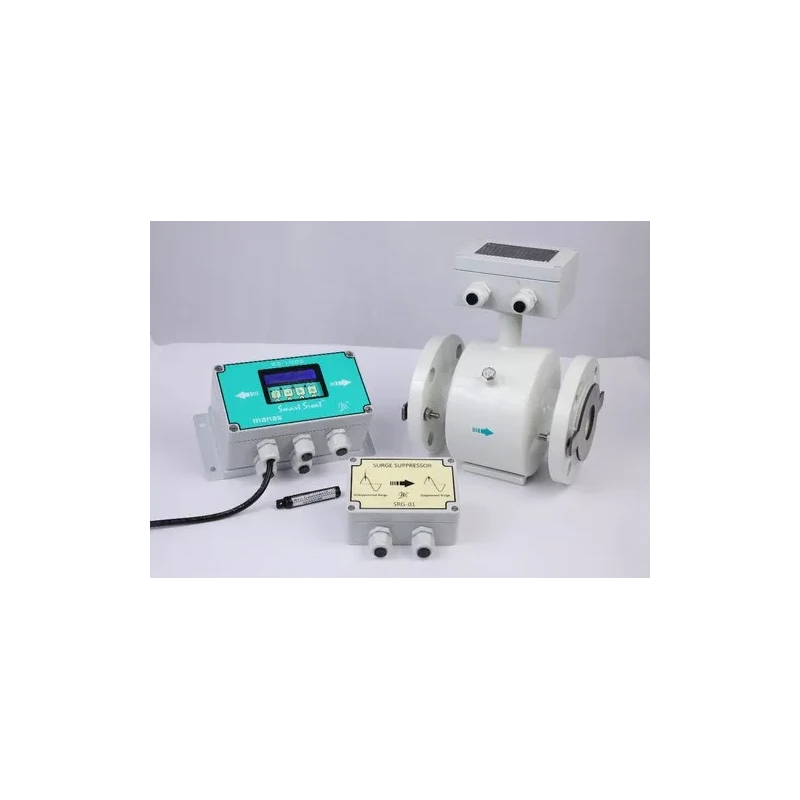

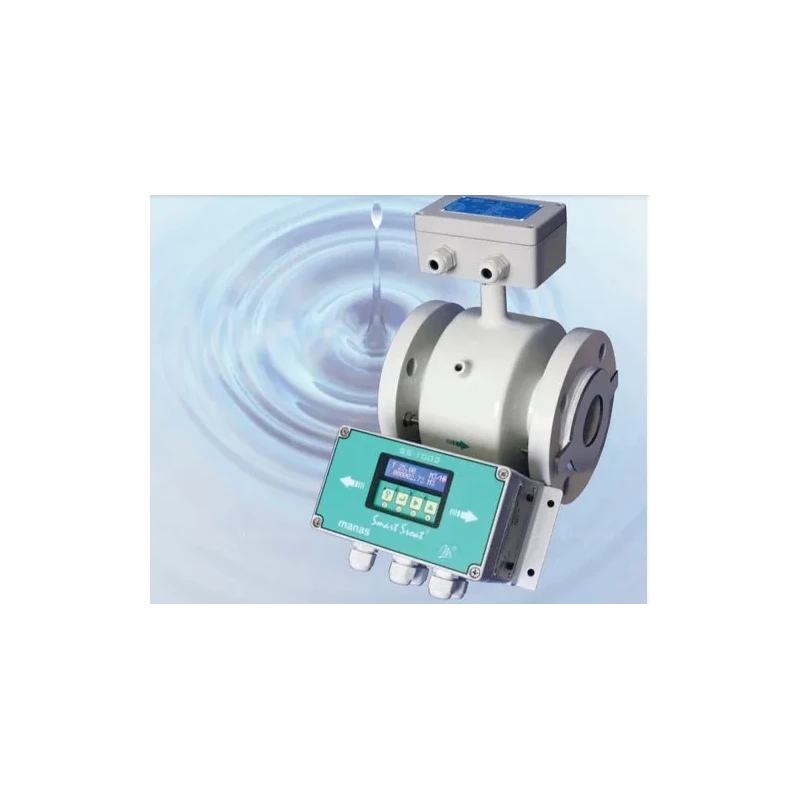

Manas Full Bore Electromagnetic Flow Meter DN 20
Specifications
| Power Supply | 85V to 265V AC50Hz |
|---|---|
| Operating Temperature | 0-50 deg C |
| Humidity | 90% of R.H. Maximum non-condensing |
| Pipe Material | SS 304 (Non magnetic) |
| Meter | DN 20 |
| Coil Housing Material | MS |
| Temperature Drift | 0.015%/deg C maximum of full scale |
| Operating Ambient Temperature (ºC) | 0-60 deg C |
| Sensing measuring electrodes | 2 No. |
| Earth electrodes | 1 No. |
| Empty tube electrodes | 1 No. |
| Flange Material | MS |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Full Bore Electromagnetic Flow Meter, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.Other Details:Meter: DN 10 to DN 350Flange Material: CS/SS 316/SS 304/SS 316 LCoil Housing Material: Carbon Steel PU Painted/SS 304/SS 316Specifications:DNm3/HrLPMLPSDNm3/HrLPMLPS100.2824.7120.0788018.095301.5925.026150.63610.6020.17610028.274471.2387.853201.1318.8490.31412544.178736.3112.271251.76729.4520.4915063.6171060.28717.671322.89548.2540.804200113.0971884.95531.415404.52375.3981.256250176.7142945.24349.087507.068117.8091.963300254.4694241.1570.6856511.945199.0983.318350346.3565772.60896.21
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This electromagnetic flow meter has a nominal diameter (DN) of 20 mm.
It operates within a temperature range of 0 to 50 degrees Celsius.
This model can detect the flow rate of conductive fluids only, as it operates based on Faraday's law of electromagnetic induction.
The power supply requirement is between 85V to 265V AC at 50Hz.
The pipe material is SS 304 (non-magnetic), and the coil housing material is made of mild steel (MS).
It features two sensing measuring electrodes, one earth electrode, and one empty tube electrode.
The maximum humidity tolerance is 90% relative humidity, non-condensing.
The temperature drift is specified as 0.015% per degree Celsius maximum of full scale.
The flange material is made of mild steel (MS).
The maximum operating ambient temperature is 60 degrees Celsius.
The flow meter is rated for various flow rates, with specific performance characteristics detailed in the long description.
The installation process is designed to be easy, but specific details should be confirmed through an enquiry.
