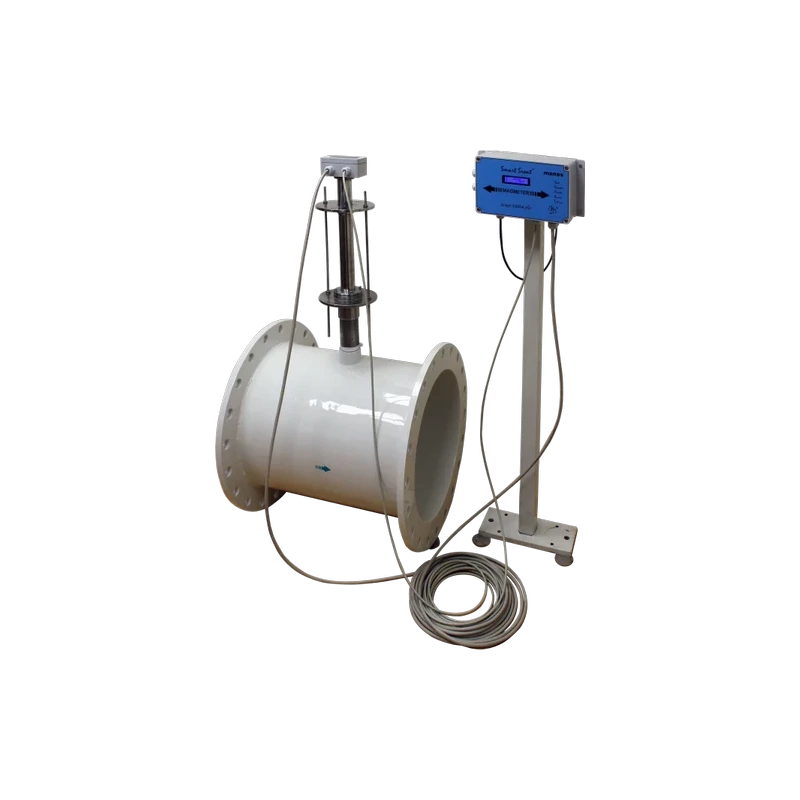

Manas Insertion Flow Meter SR1000i
Specifications
| Model | SR1000i |
|---|---|
| Ambient temperature range | 0 to 50 deg C |
| Electrodes | SS 316 |
| Media temperature | 0 to 80 deg C |
| Application Media | Water |
| Line Size | DN200 |
| Wetted Parts | SS 304 SS 316 Epoxy |
| Media Pressure | 15 kg/cm2 |
| Power Supply to field coils | Pulsed DC |
| Weld in socket | SS 304 |
| Insertion Probe Material | SS 304 |
| Flange Mounting Assembly | SS 304 |
| Terminal box | IP-68 |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Insertion Flow Meter, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.Specifications:Dia.(mm)m/hrMLDCu.ft./Sec.200113.0972.71431.1094250176.7144.24111.7335300254.4696.10722.4962350346.368.31263.3977400452.38910.85734.4378500706.85816.96466.9346001017.87524.4299.9857001385.44133.250613.5907 Technical Details:Dia.(mm)m/hrMLDCu.ft./Sec.8001809.55643.429317.75119002290.21954.965222.466210002827.43167.858327.73612004071.597.71639.9414005541.765133.002454.362616007238.223173.717471.004318009160.876219.86189.8648200011309.724271.4333110.9442
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum media temperature for the Manas Insertion Flow Meter SR1000i is 80 degrees Celsius.
The ambient temperature range for the SR1000i is from 0 to 50 degrees Celsius.
The electrodes in the Manas Insertion Flow Meter SR1000i are made of SS 316.
This model can handle a maximum media pressure of 15 kg/cm².
The line size for the Manas Insertion Flow Meter SR1000i is DN200.
The field coils of this flow meter require a pulsed DC power supply.
The wetted parts of the SR1000i are made of SS 304, SS 316, and epoxy.
The insertion probe of the Manas Insertion Flow Meter SR1000i is made of SS 304.
This flow meter is designed to measure water as the application media.
The terminal box of the SR1000i has an IP-68 rating.
Yes, the SR1000i comes with a flange mounting assembly made of SS 304.
The weld-in socket for this model is made of SS 304.
