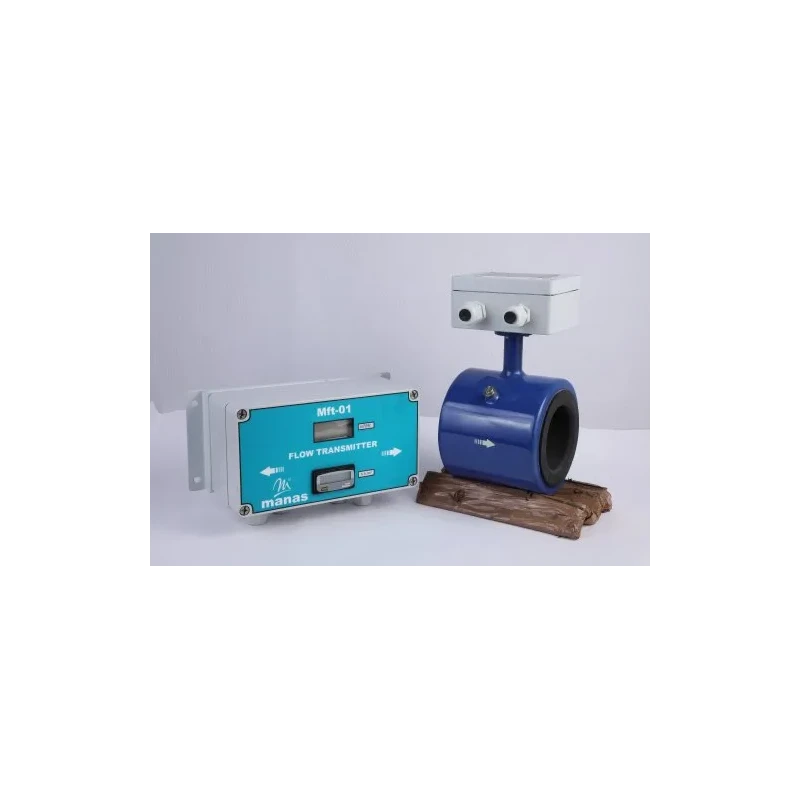

Manas Wafer Type Electromagnetic Flowmeter

Name: Manas Wafer Type Electromagnetic Flowmeter
Brand: ESPL
SKU: ABBAF
Price: 11.59 USD
Availability: InStock



SKU ABBAF Category Flow Meter Brand ESPL Condition New

Specifications

Repeatability	0.2% of reading
Accuracy	Maximum Inaccuracy 1% of reading between 100% to 10% of calibrated flow range
Ranges	10.00 m/s FS
Display	Digital
Power Supply	230V AC/ 110V AC 50 Hz
Operating Temperature	0-50 deg C
Mounting	Integral / Remote Mounting
Input	Micro-volt Signal proportional to flow rate from primary Flow sensor .
Ingress Protection	IP-67
Flow Velocity Range	Max 10 m/s
Min Media conductivity	Greater than 5 S/cm
Local Display	3 1/2 digit 0.5 LCD calibrated in % or engineering units
Temperature Drift	0.015 % per deg C
Typical Accuracy	Better than 0.5% of reading
Material of Housing	Al Die Cast

Key Features

Easy to use
Easy to install
Great performance

Product Description

Manas Wafer Type Electromagnetic Flowmeter, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.Principle of Operation:The JAL-Oagh series of electromagnetic flow meters work on Faraday's law of electromagnetic induction. When a conductor moves within a magnetic field, voltage is induced in it which is proportional to the velocity of the conductor.In this case the conductor is flowing media. The equation is as below:E=B.v.Dwhere,E = Induced voltage [proportional to velocity]B = Magnetic flux densityv = Mean velocity of the mediad = distance between the sensing electrodesFor a given size of flow tube & compatible amplifier the flux density 'B' is constant, the distance between the electrodes is constant.Jal-oagh Application:Effluent Treatment: Untreated as well as Treated Effluent Water Measurement.Sewage Treatment: Waste water measurement, Sludge measurement etc.Water Supply Schemes :Raw water as well as treated water measurement.Boiler Feed Water Measurement.Chemical Industries: Measurement of acidic & alkaline chemicals & slurriesSpecifications:DNm3/hrLPMLPSDNm3/hrLPMLPS251.76729.4520.498018.095301.5925.026322.89548.2540.80410028.274471.2387.853404.52375.3981.25612544.178736.3112.271507.068117.8091.96315063.6171060.28717.6716511.945199.0983.318200113.0971884.95531.415

Highly durable

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum flow velocity that this model can handle is 10 m/s.

The maximum inaccuracy is 1% of reading between 100% to 10% of the calibrated flow range, with typical accuracy better than 0.5% of reading.

This unit requires a minimum media conductivity of greater than 5 S/cm to operate effectively.

It operates on a power supply of 230V AC or 110V AC at 50 Hz.

The operating temperature range for this model is from 0 to 50 degrees Celsius.

It features a digital display with a 3 1/2 digit 0.5 LCD calibrated in percentage or engineering units.

The output is a micro-volt signal that is proportional to the flow rate from the primary flow sensor.

The repeatability of this model is 0.2% of reading.

The housing material of this unit is aluminum die cast.

Yes, it supports both integral and remote mounting options.

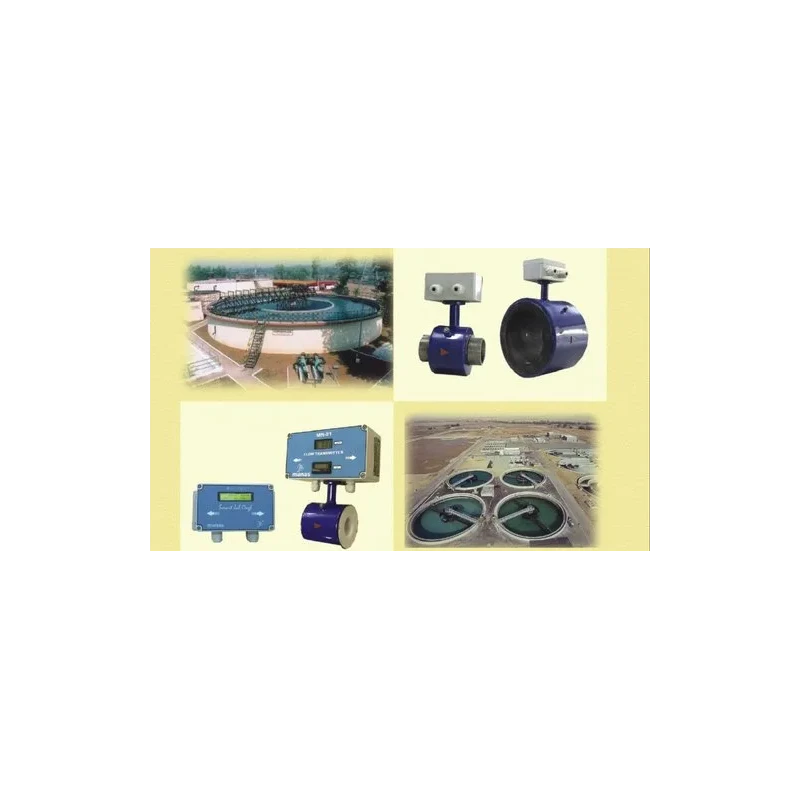

It is suitable for applications including effluent treatment, sewage treatment, water supply schemes, boiler feed water measurement, and chemical industries.
