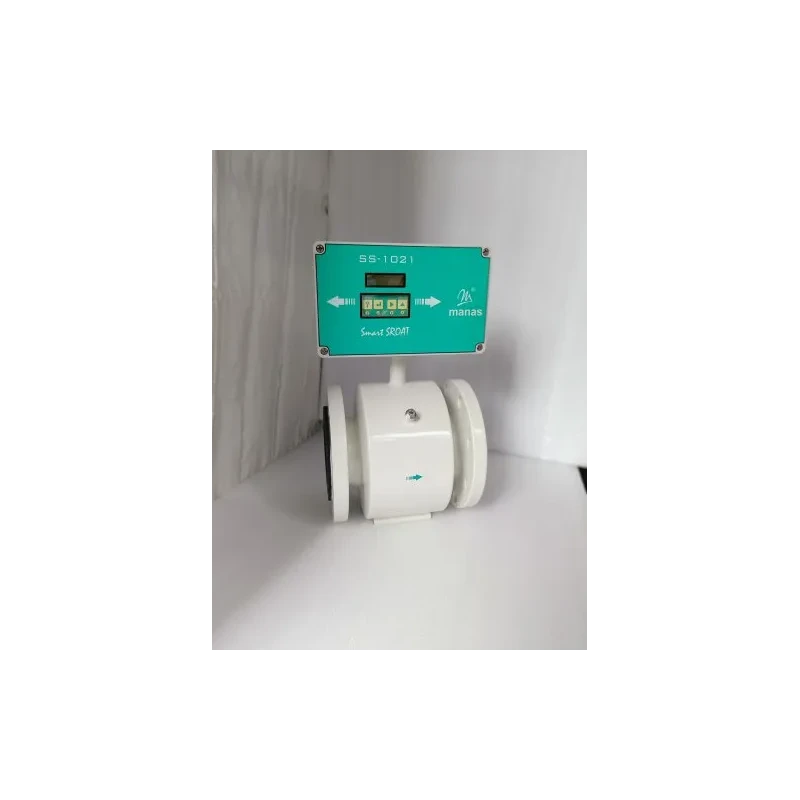

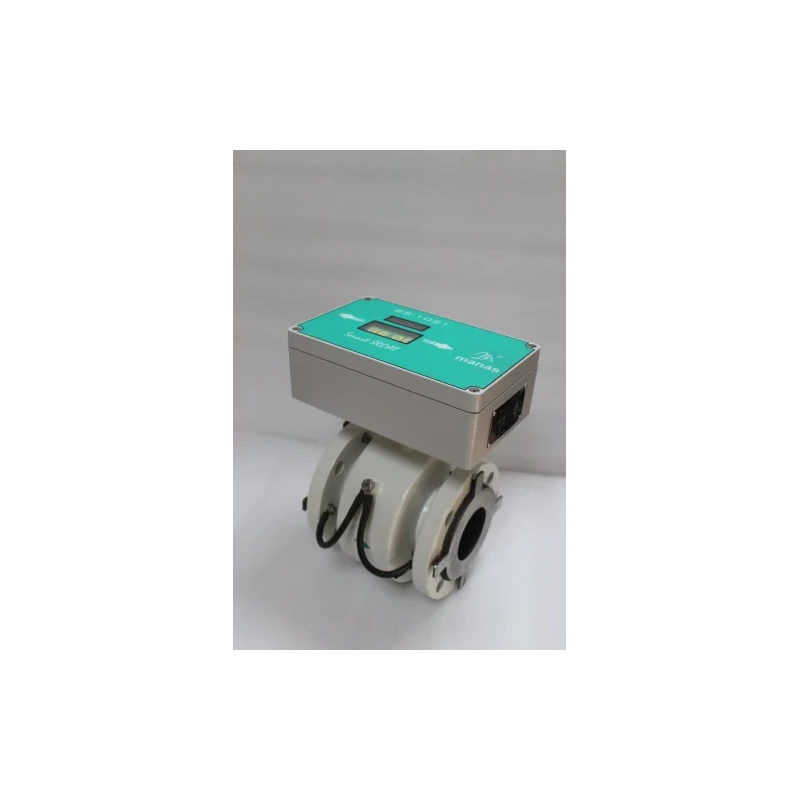

Manas Battery Operated Electromagnetic Flow Meter with digital display
Specifications
| Accuracy | +-1% of Actual Flow Rate between 100% to 10% of calibrated range |
|---|---|
| Display | Digital |
| Output | NA |
| Pressure | Upto DN80-PN 40 |
| Pipe Material | SS304 (non magnetic) |
| Temperature | PTFE - 0 - 150 Deg C |
| Shelf Life | 5 Years |
| Media | For Hard Rubber (HR) -0-90 Deg C |
| Ingress Protection | IP68 for Primary Flow Sensor IP67 for flow Transmitter |
| Flange Standard | ANSI |
| Meter Size | DN15 |
| Ambient | 0 to 50 Deg C |
| Coil Housing Material | MS |
| Liner Material | Hard Rubber/PTEF/PFA |
| Type of Transmitter | SS1021 |
| Flanges Material | MS |
| Min Media conductivity | 20 micro-Siemens per cm |
| Local Display | 2 line LCD Display For instantaneous Flow rate To talizer Engg. units Fault Message etc |
| PFA | 0 to 200 Deg C |
| GSM Facility | Optionally Available |
| Flow Velocity | Max 12m/s |
Key Features
- Highly Accurate and extremely Linear.
- Easy to install
Product Description
Manas Battery Operated Electromagnetic Flow Meter with digital display, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.Battery Operated Electromagnetic Flow meter is specifically designed where Electric supply is not available& accurate flow measurement is essential. Other Details:Coil Housing Material: CS PU Painted / SS304 / SS316Flanges Material: CS / SS316 / SS304 / SS316 LFlange Standard: DIN / BS Flanges (As per requirement)Flow Velocity: 0.2m/s to 12m/sMeter Size: DN15 to DN350Model Range:DNm/HrLPMLPS150.63610.6020.176201.1318.8490.314251.76729.4520.49322.89548.2540.804404.52375.3981.256507.068117.8991.9636511.945199.0983.3188018.095301.5925.02610028.274471.2387.85312544.178736.3112.27115063.6171060.28717.671200113.0971884.95531.415250176.7142945.24349.087300254.4694241.1570.685350346.3565772.60896.21
- Great performance
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy is ±1% of the actual flow rate between 100% to 10% of the calibrated range.
It can measure flow velocities up to 12 m/s.
This flow meter can handle media temperatures from -0 to 90 °C for Hard Rubber and up to 200 °C for PFA.
The coil housing is made of mild steel (MS), while the flanges can be made of MS or stainless steel (SS304/SS316).
The minimum media conductivity required is 20 micro-Siemens per cm.
It features a digital display with a 2-line LCD for instantaneous flow rate and totalizer engineering units.
The ambient temperature range for this flow meter is from 0 to 50 °C.
The flow meter is compatible with ANSI flange standards.
It can handle pressures up to PN 40 for sizes up to DN80.
It is designed to measure the flow of conductive fluids only.
Yes, a GSM facility is optionally available with this flow meter.
