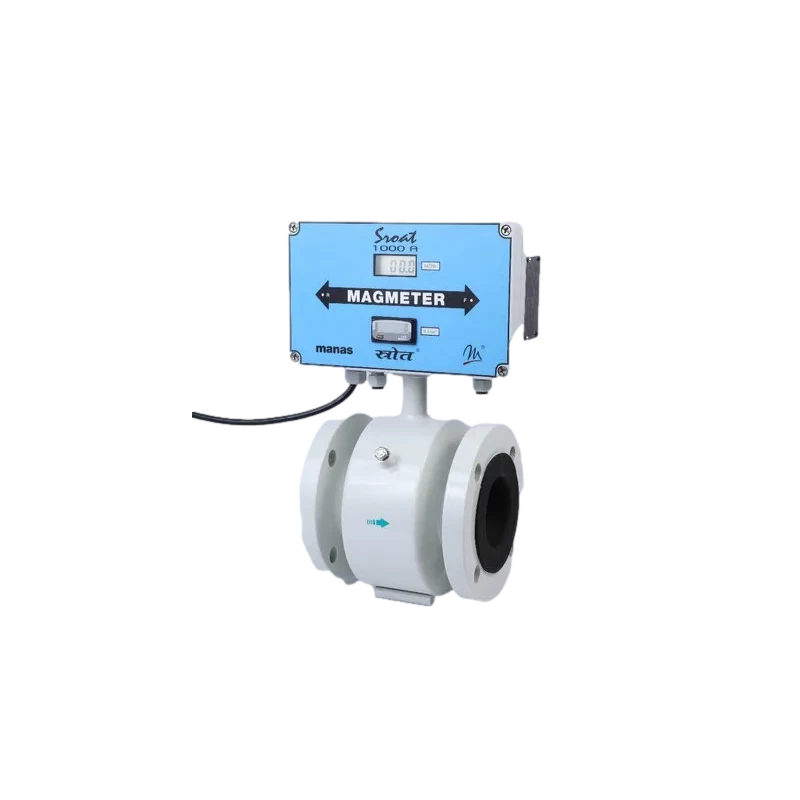

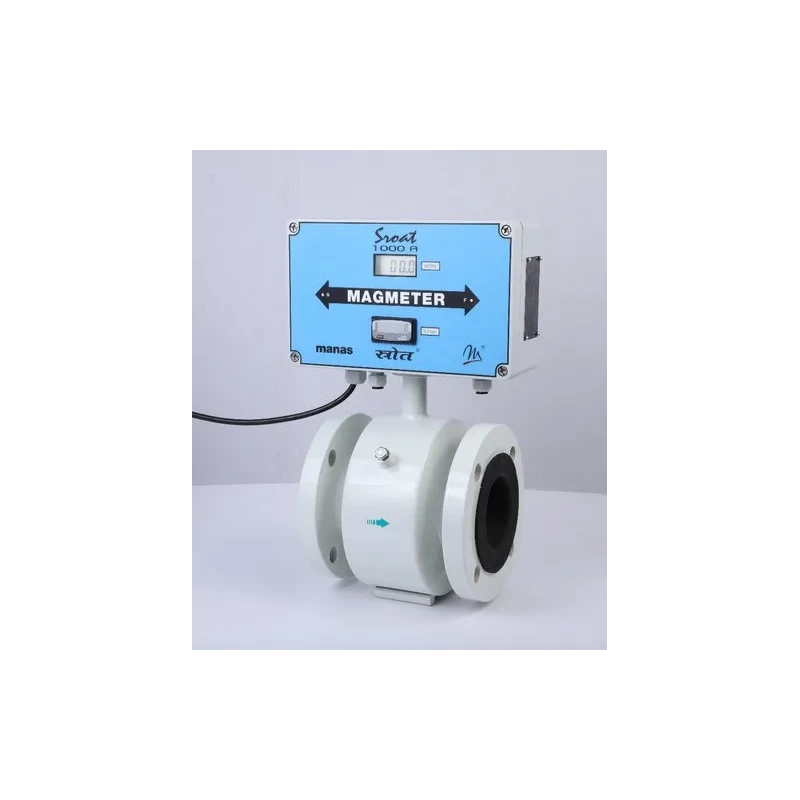

Manas Full Bore Electromagnetic Flow Meter
Specifications
| Accuracy | +-0.5 % +-(1mm/sec) of Actual Flow Rate between 100 % to 10 % of calibrated ran |
|---|---|
| Display Type | 16 characters x 2 rows LCD Display for instantaneous Flow rate Totaliser Engg. units |
| Operating Temperature | 0 - 60 DegreeC |
| Pipe Material | SS 304 [non-magnetic ] |
| Operating Pressure | Up to DN 80 - PN 40 |
| Ingress Protection | IP-68 |
| Flanges | Carbon Steel |
| Line Size | DN 10 |
| Velocity range | Max 10 m/s |
| Power Supply to field coils | Pulsed DC |
Key Features
- Easy to use
- Easy to install
- Great performance
Product Description
Manas Full Bore Electromagnetic Flow Meter, Electromagnetic flow meters (or magmeters) are a type of velocity or volumetric flow meter that operate pursuant to Faraday's law of electromagnetic induction which states that a voltage will be induced when a conductor moves through a magnetic field. Magmeters can detect the flow rate of conductive fluids only.
- Highly durable
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this model is ±0.5% ±(1 mm/sec) of the actual flow rate between 100% to 10% of the calibrated range.
This electromagnetic flow meter can measure flow velocities up to a maximum of 10 m/s.
It operates within a temperature range of 0 to 60 degrees Celsius.
The maximum operating pressure is up to PN 40 for pipe sizes up to DN 80.
The pipe material is SS 304, which is non-magnetic, and the flanges are made of carbon steel.
It can detect the flow rate of conductive fluids only, as it operates based on Faraday's law of electromagnetic induction.
It requires a pulsed DC power supply to the field coils.
The line size compatibility for this model is DN 10.
The product is designed to be easy to install, facilitating quick setup in various applications.
Key features include high accuracy, a user-friendly LCD display, and the ability to operate under specific temperature and pressure conditions.
